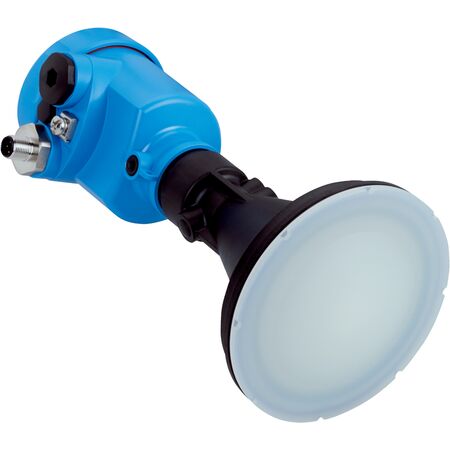

Bulk Solids Level Sensor | W-band Frequency | IP67 Rated | 120m Measuring Range | by SICK
The Bulk Solids Level Sensor is designed for continuous level measurement in industrial processes, featuring a W-band frequency range of 75 to 85 GHz for precise sensing. With a robust IP67 rated enclosure and a measuring range of up to 120 m, this sensor is perfect for harsh environments, ensuring reliable performance and high accuracy in bulk solids applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 80mm x 80mm
- Weight: 2 kg
Key Features
- Plastic horn antenna made from PP for reliable measurement
- W-band frequency range (75 to 85 GHz) for accurate sensing
- Measuring range up to 120 m, recommended up to 20 m with integrated horn antenna
- Angle of dispersion 3.5° for focused measurement
- Process pressure tolerance from -1 bar to 2 bar
- Operating temperature range from -40 °C to +80 °C
- HART communication interface for easy integration
- IP67 rated enclosure for protection against dust and water
- Pushbutton operation with installed display for user-friendly control
- High accuracy with sensor element accuracy ≤ 5 mm and non-repeatability ≤ 1 mm
- Short step response time ≤ 3 seconds
- Robust aluminum die cast housing with powder coating
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical safety standards.
Applications
- Continuous level measurement of bulk solids in industrial processes
- Suitable for use in harsh environments with process pressures from -1 to 2 bar
- Ideal for applications requiring precise measurement up to 120 m range
Standards & Compliance
- Complies with AS/NZS 61010-1 for electrical equipment safety
- Complies with AS/NZS 61326-1 for EMC requirements
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation with low start-up current (< 3.6 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBR-XXBXXCMHKAX level sensor is available for immediate purchase, ideal for industrial bulk solids measurement applications.
