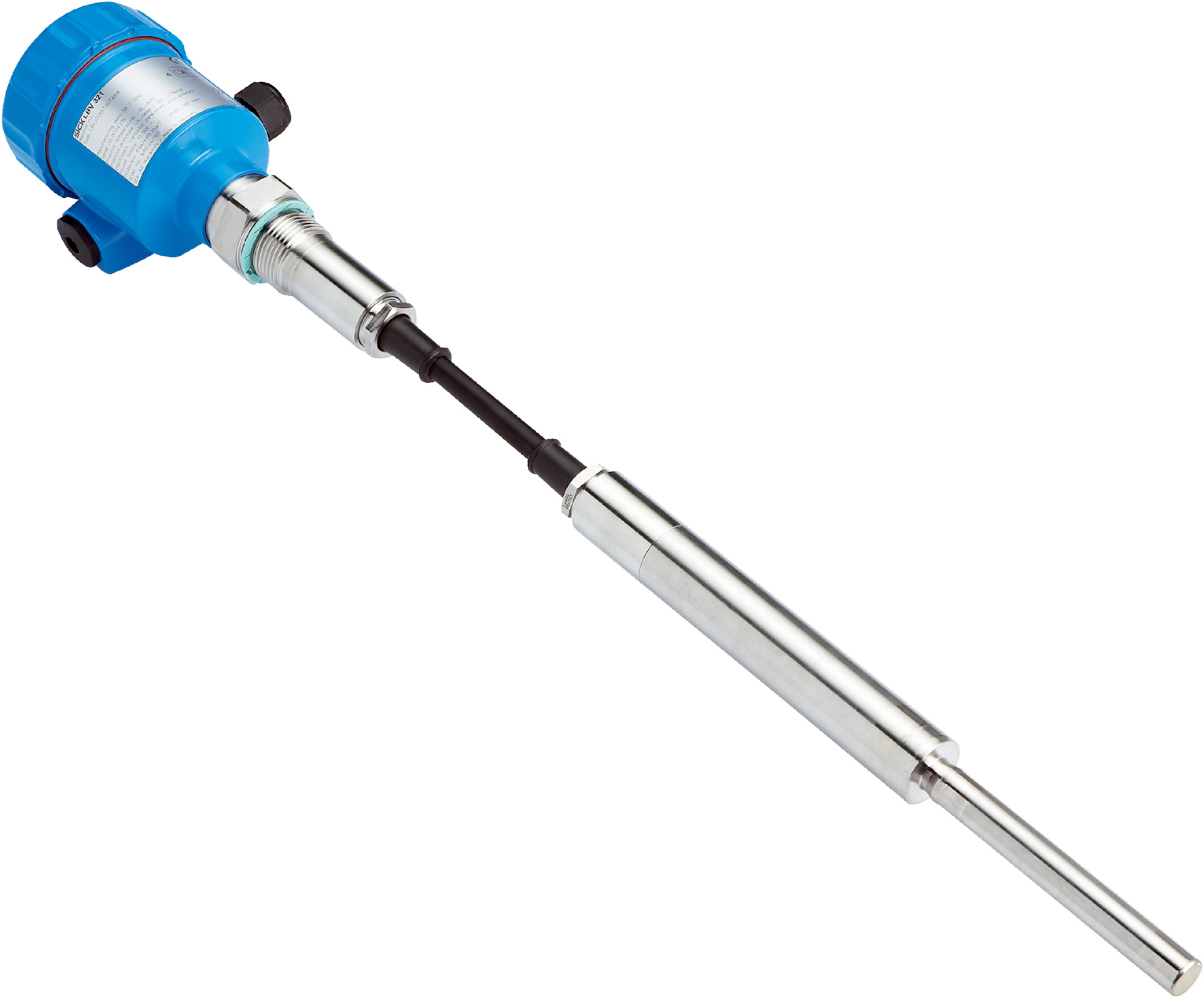

Bulk Solids Level Switch | Rod Probe 1000mm | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial processes, featuring a 1000mm rod probe and robust IP66/IP67 enclosure ratings. Ideal for monitoring bulk solids with a fill density of ≥ 0.02 g/cm³, this sensor ensures reliable operation in harsh environments, with a fast response time of 100 ms to 500 ms and high accuracy of ±10 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 1,000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3,000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Power consumption: ≤ 10 mA
- Output signal: 1 x PNP/NPN transistor output
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Plastic
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 1,000 mm length
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- Volt-free transistor output PNP/NPN
- Enclosure rating IP66 and IP67 for harsh environments
- Stainless steel 316L wetted parts for corrosion resistance
- Fast response time of 100 ms to 500 ms
- High accuracy with ±10 mm sensor element precision
- VDE protection class 2 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial processes
- Material handling and storage monitoring
- Process control in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption of ≤ 10 mA supports energy efficiency
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now

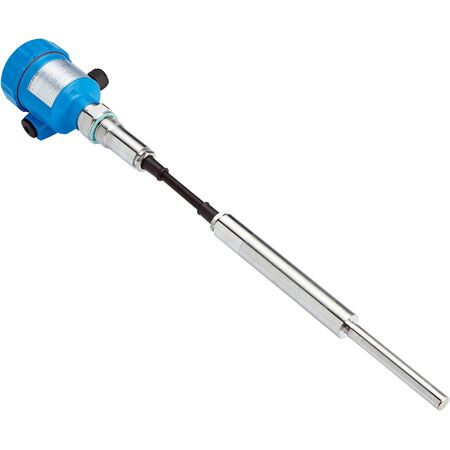

The SICK LBV321-XXTGCTKMX01000 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level monitoring applications.
