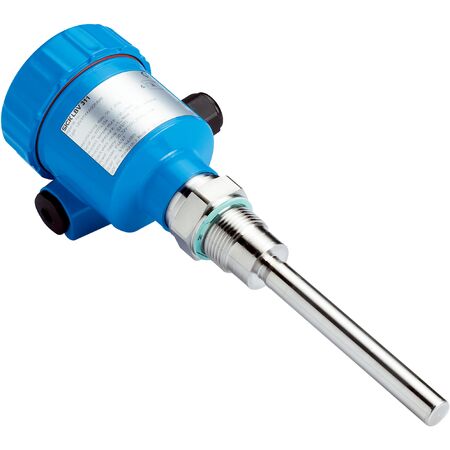

Bulk Solids Level Switch | Rod Probe 160mm | Double Relay Output | ATEX Certified | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch with a 160mm rod probe is designed for precise level detection in industrial processes. With a double relay output and high accuracy of ±10 mm, it operates effectively in hazardous environments, certified for ATEX compliance. Ideal for food, pharmaceutical, and chemical industries, this robust sensor ensures reliable performance across a wide temperature range of -50 °C to +150 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 160 mm
- Process pressure range: -1 bar to 16 bar
- Process temperature range: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Output current: >10 µA; <3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Tri-clamp 1 ½" (316L, Ra < 0.8 μm)
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 160 mm length
- Double relay (DPDT) output signal
- High accuracy sensor element with ±10 mm precision
- Robust stainless steel 316L wetted parts and tri-clamp 1 ½" process connection
- ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db certified for hazardous areas
- IP66 and IP67 rated enclosure for dust and water protection
- Wide supply voltage range: 20 V DC to 72 V DC and 20 V AC to 253 V AC
- Low power consumption between 5 mA and 30 mA
- Fast response time of 100 ms to 500 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards to ensure compliance and safe operation.
Applications
- Bulk solids level detection in industrial processes
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for process temperatures from -50 °C to +150 °C
- Ideal for food, pharmaceutical, and chemical industries requiring hygienic process connections
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption minimizes energy use
- Reliable operation reduces risk of process spills and material waste
Warranty Information
Standard manufacturer warranty applies, typically 1 to 2 years against defects in materials and workmanship.
Available Now
The SICK LBV311-GXACTRAMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
