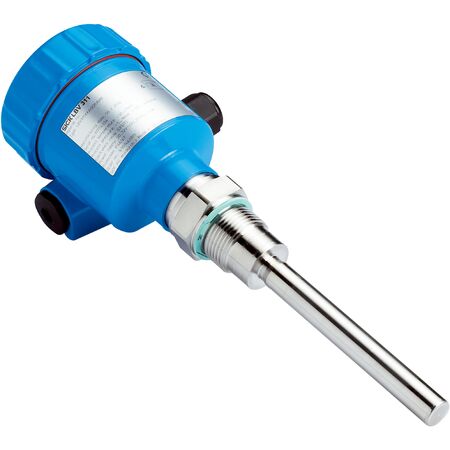

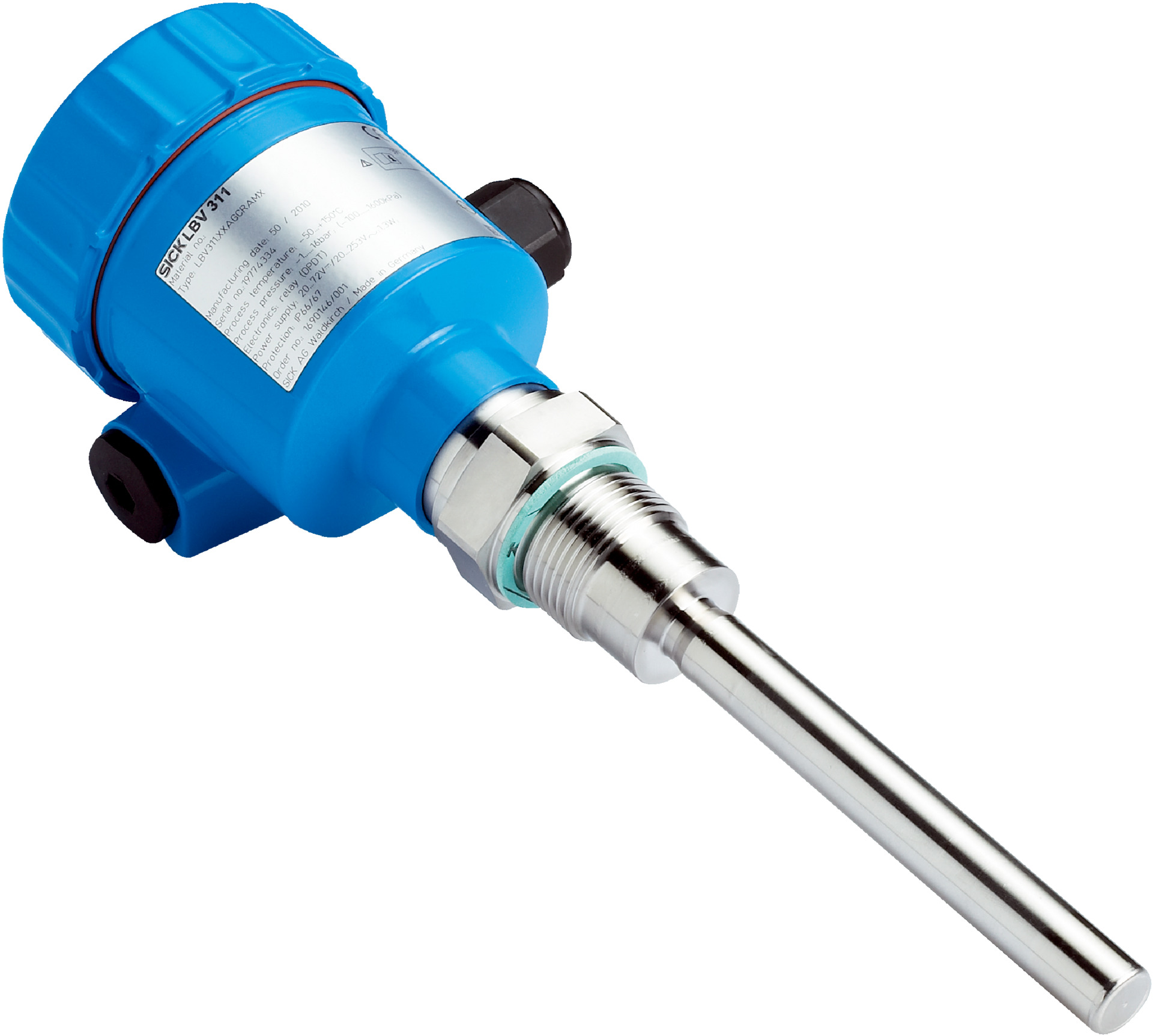

Bulk Solids Level Switch | Rod Probe 160 mm | Double Relay Output | ATEX Certified | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch with a 160 mm rod probe is designed for precise level detection in industrial processes, operating within a pressure range of -1 bar to 16 bar and temperature range of -50 °C to +150 °C. With high accuracy of ±10 mm and robust IP66/IP67 enclosure, it's perfect for ATEX hazardous area applications, ensuring reliable performance and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement type: Switch
- Probe length: 160 mm
- Process pressure range: -1 bar to 16 bar
- Process temperature range: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- MTBF: 4.17 million hours
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 160 mm length
- Double relay (DPDT) output signal
- High accuracy sensor element with ±10 mm accuracy
- Reproducibility ≤ 5 mm
- Response time 100 ms to 500 ms
- ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db certified
- IP66 and IP67 rated enclosure for robust protection
- Stainless steel 1.4404 / 316L wetted parts and sensor material
- Aluminum housing material
- Wide supply voltage range: 20 V DC to 72 V DC and 20 V AC to 253 V AC
- Low power consumption between 5 mA and 30 mA
- VDE protection class 1 certified
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with ATEX and electrical safety standards.
Applications
- Bulk solids level detection in industrial processes
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for process temperatures from -50 °C to +150 °C
- Ideal for ATEX hazardous area applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- Low power consumption contributes to energy efficiency
- Reliable level detection helps prevent overfilling and spillage, minimizing environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV311-GXAGGRAMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
