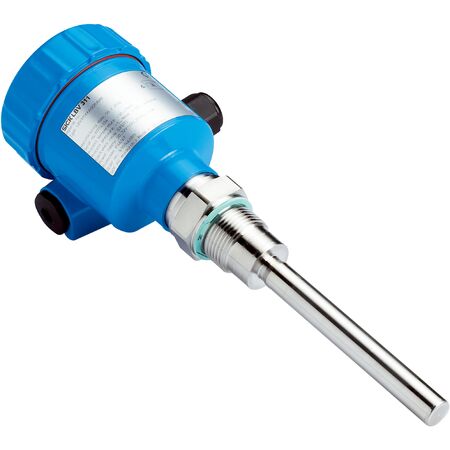

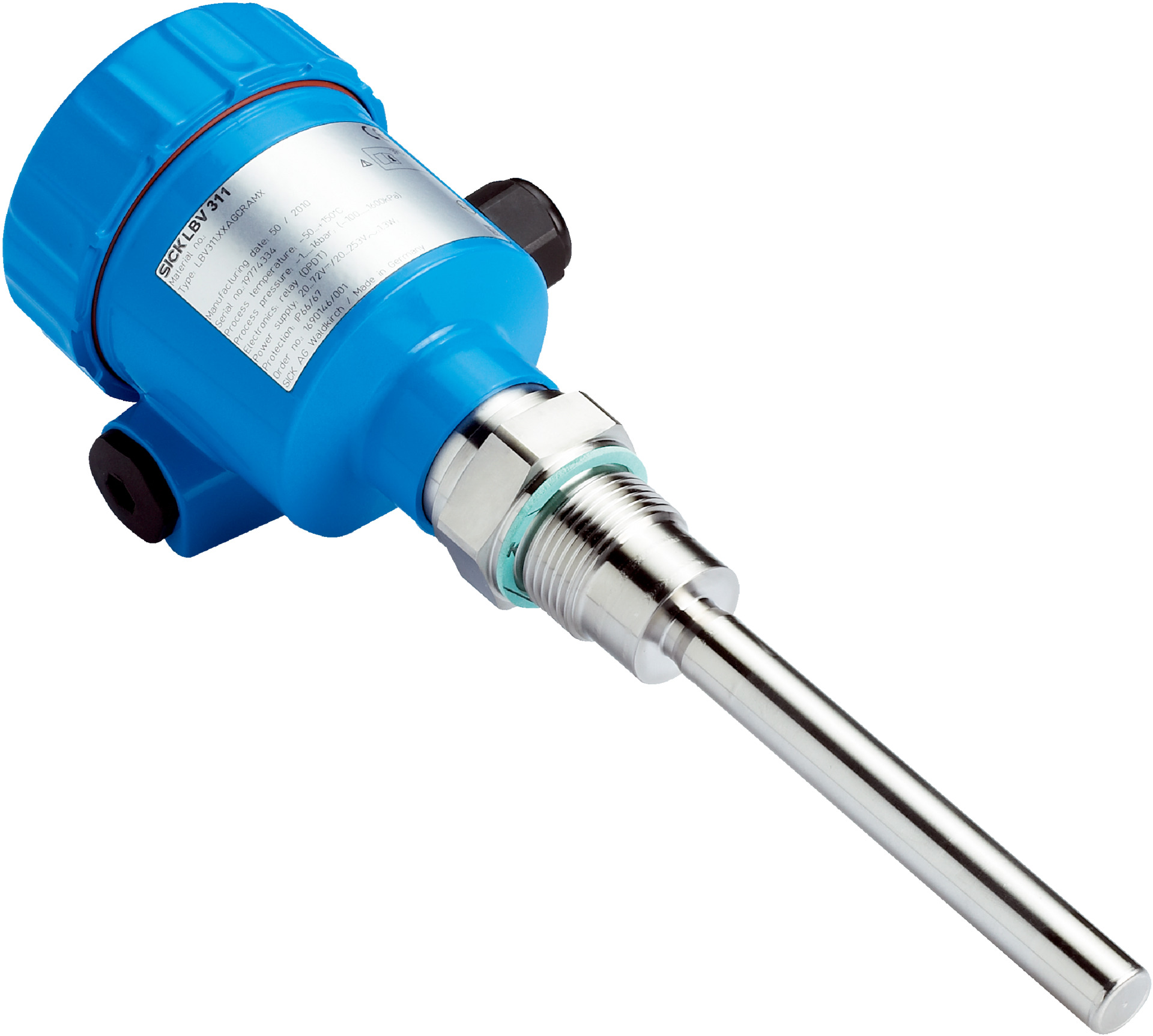

Bulk Solids Level Switch | Rod Probe 160 mm | Double Relay Output | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch with a 160 mm rod probe is designed for precise level detection in industrial environments. With a double relay output and high accuracy of ±10 mm, it operates effectively in process pressures from -1 bar to 16 bar and temperatures from -50 °C to +150 °C. Ideal for ATEX hazardous area applications, this robust sensor ensures reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 160 mm
- Process pressure range: -1 bar to 16 bar
- Process temperature range: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 160 mm length
- Double relay (DPDT) output signal
- High accuracy sensor element with ±10 mm precision
- Reproducibility of ≤ 5 mm
- Fast response time of 100 ms to 500 ms
- Robust stainless steel 316L wetted parts
- Process connection G 1, DIN 3852-A, PN 16 / 316L
- Enclosure rated IP66 and IP67 for dust and water protection
- Wide supply voltage range: 20 V DC to 72 V DC and 20 V AC to 253 V AC
- ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db certified
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with ATEX and electrical safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for processes with temperatures from -50 °C to +150 °C
- Ideal for ATEX hazardous area applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- Reliable operation reduces risk of spillage and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV311-GXAGCRAMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement in hazardous environments.
