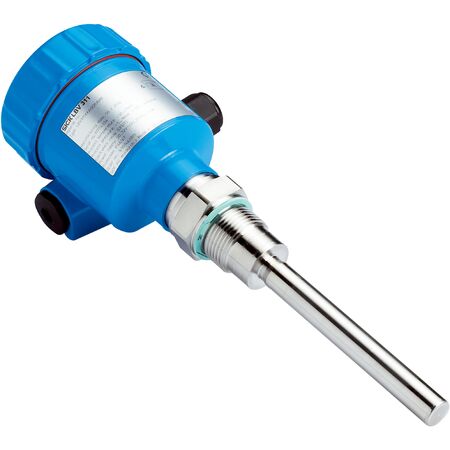

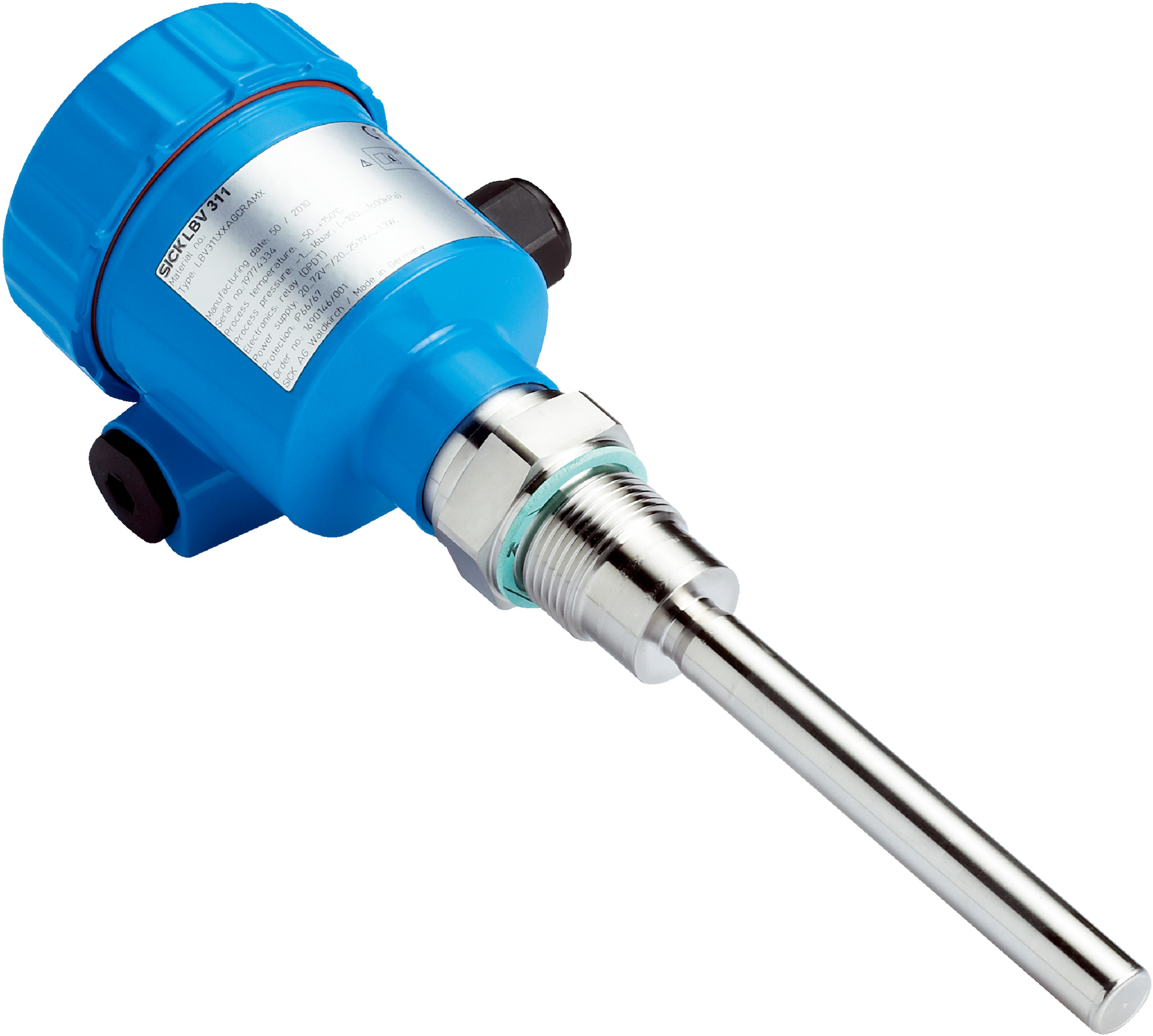

Bulk Solids Level Switch | Rod Probe 160mm | Double Relay Output | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a 160mm rod probe and double relay output for reliable measurement. With a wide process pressure range of -1 bar to 16 bar and operating temperatures from -50 °C to +150 °C, this sensor is perfect for harsh environments, ensuring high accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 160 mm
- Process pressure range: -1 bar to 16 bar
- Process temperature range: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms or 100 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: ½" NPT
- Output signal: Double relay (DPDT)
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1" NPT, ASME B1.20.1, PN 16, 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 160 mm length suitable for bulk solids
- Switch measurement with double relay (DPDT) output
- Wide process pressure range from -1 bar to 16 bar
- Operates in process temperatures from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element precision
- Robust stainless steel wetted parts (1.4404 / 316L)
- Enclosure rated IP66 and IP67 for dust and water protection
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and control in material handling systems
- Use in harsh environments with varying pressure and temperature
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption between 5 mA and 30 mA
- Supports efficient process control reducing material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV311-XXANCRANX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
