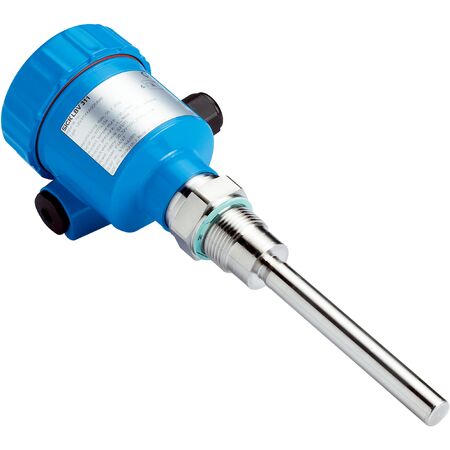

Bulk Solids Level Switch | Rod Probe Type | 160 mm Length | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial processes, featuring a rod probe type with a 160 mm length and high accuracy of ±10 mm. Ideal for applications in food, pharmaceutical, and chemical industries, it operates effectively under process pressures from -1 bar to 16 bar and temperatures ranging from -50°C to +150°C, ensuring reliability and durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Switch
- Probe type: Rod probe
- Probe length: 160 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50°C to +150°C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy of sensor element: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: < 2 s
- VDE protection class 2 certified
- Connection type: M20 x 1.5
- Output signal: 1 x PNP/NPN transistor output
- Hysteresis: 10 mm
- Output current: < 300 mA
- Inductive load: 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Tri-Clamp 2'' (316L, Ra < 0.8 μm)
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40°C to +70°C
- Ambient storage temperature: -40°C to +80°C
- Dimensions (H x L x W): 160mm x 160mm x 50mm
- Weight: 0.5 kg
Key Features
- Rod probe type with 160 mm length
- Switch measurement for bulk solids with fill material density ≥ 0.02 g/cm³
- High accuracy sensor element with ±10 mm accuracy and ≤5 mm reproducibility
- Fast response time of 100 ms to 500 ms
- Volt-free transistor output PNP/NPN with output current < 300 mA
- Robust stainless steel wetted parts (1.4404 / 316L) and plastic housing
- Process connection via Tri-Clamp 2'' (316L, Ra < 0.8 μm)
- Enclosure rated IP66 and IP67 for harsh environments
- Wide ambient operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor installation and electrical safety standards.
Applications
- Bulk solids level detection in industrial processes
- Use in food, pharmaceutical, chemical, and manufacturing industries
- Suitable for process pressures from -1 bar to 16 bar and temperatures from -50°C to +150°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction ensures long service life reducing waste
- Low power consumption of ≤10 mA supports energy-efficient operation
- High reliability reduces downtime and material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LBV311-XXACVTKMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
