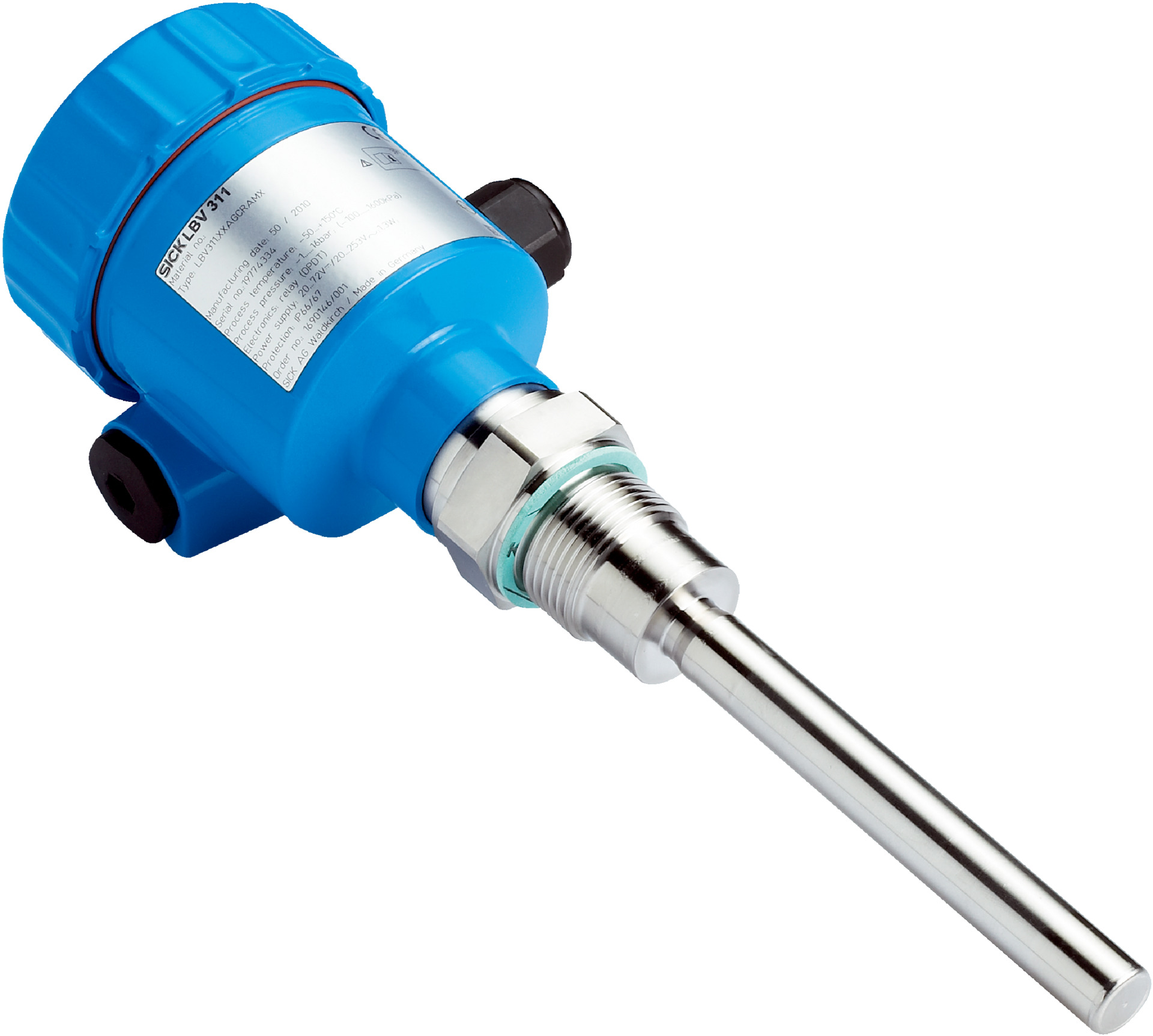

Bulk Solids Level Switch | Rod Probe 160mm | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch with a 160mm rod probe is designed for accurate measurement of bulk solids in industrial applications. With a wide process pressure range of -1 bar to 16 bar and operating temperatures from -50 °C to +150 °C, it ensures reliable performance in harsh environments. Ideal for food, pharmaceutical, and chemical industries, this sensor features robust stainless steel construction and double relay output for enhanced durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Switch
- Probe type: Rod probe
- Probe length: 160 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: Tri-Clamp 2'' (316L, Ra < 0.8 μm)
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 160 mm length for reliable bulk solids measurement
- Switch measurement type with double relay (DPDT) output signal
- Wide process pressure range from -1 bar to 16 bar
- Operates in process temperatures from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element accuracy and ≤5 mm reproducibility
- Robust stainless steel 316L wetted parts and Tri-Clamp 2'' process connection
- Enclosure rated IP66 and IP67 for harsh environments
- VDE protection class 1 certified
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial processes
- Measurement and monitoring of material fill levels in storage tanks
- Suitable for use in food, pharmaceutical, and chemical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA supports energy efficiency
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

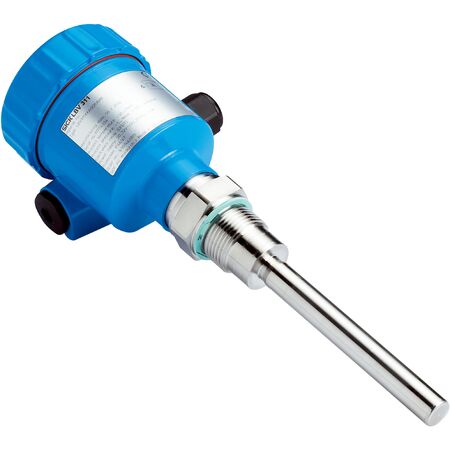

The SICK LBV311-XXCCVRKMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
