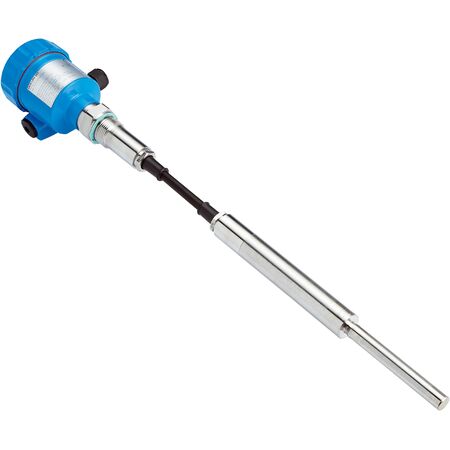

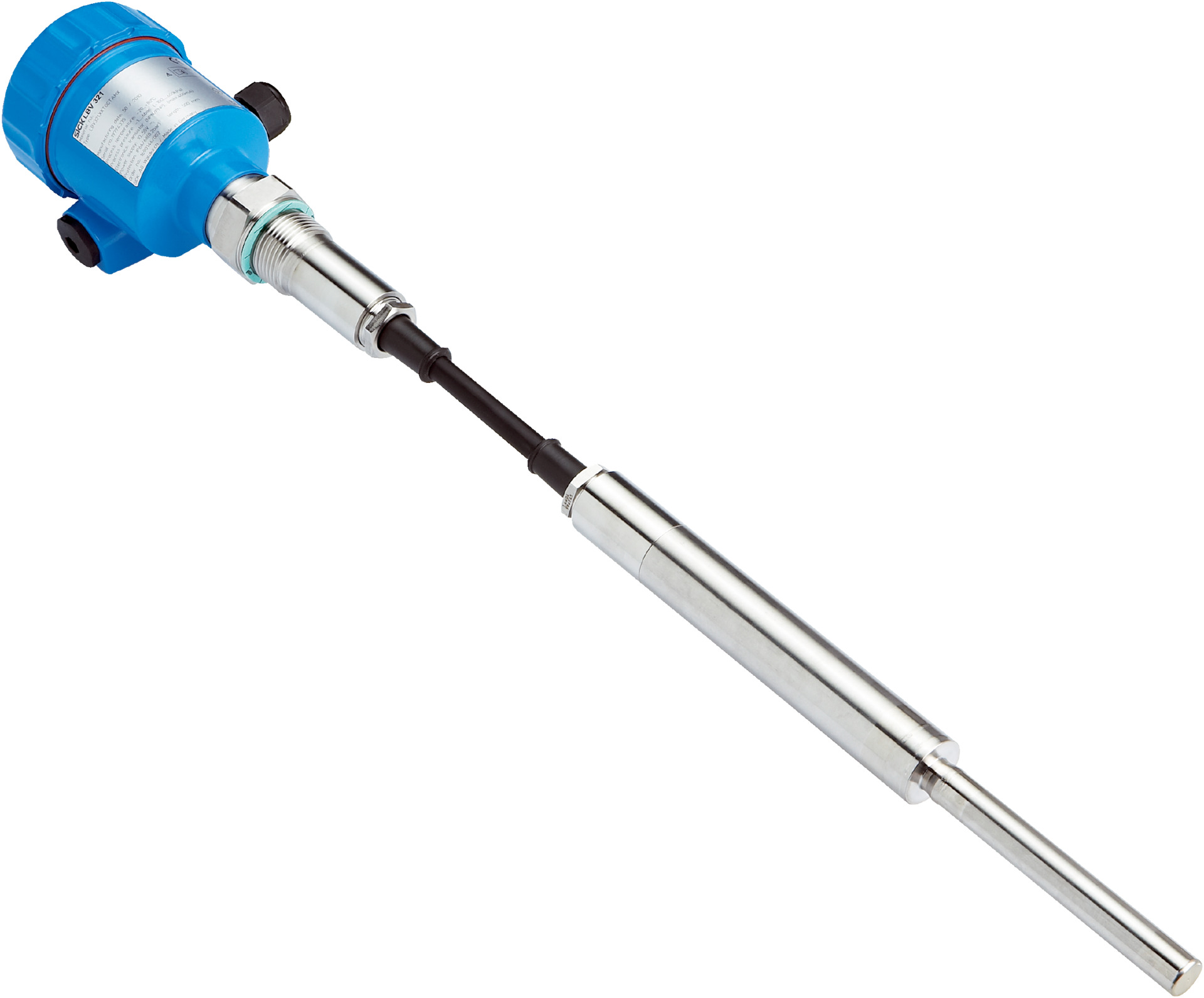

Bulk Solids Level Switch | Rod Probe 2000 mm | Double Relay Output | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise measurement of material fill levels in industrial applications. Featuring a 2000 mm rod probe and double relay output, it operates effectively under high process pressures and temperatures. With an IP66 and IP67 rated enclosure, this sensor is built to withstand harsh environments, making it ideal for silos and containers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement Type: Switch for bulk solids
- Probe Length: 2000 mm
- Process Pressure: -1 bar to 6 bar
- Process Temperature: -20 °C to +80 °C
- Fill Material Density: ≥ 0.02 g/cm³
- Tensile Strength: ≤ 3000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response Time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply Voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power Consumption: 5 mA to 30 mA
- Output Signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output Current: > 10 µA; < 3A AC, 1A DC
- Enclosure Rating: IP66, IP67
- Connection Type: M20 x 1.5
- Wetted Parts Material: Stainless steel 1.4404 / 316L
- Housing Material: Aluminum
- Sensor Material: Stainless steel 316L, 318S, PUR, FEB
- Ambient Operating Temperature: -40 °C to +70 °C
- Storage Temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 2.5 kg
Key Features
- Rod probe type with 2000 mm length for bulk solids measurement
- Double relay (DPDT) output signal for reliable switching
- High process pressure tolerance from -1 bar to 6 bar
- Wide operating temperature range from -20 °C to +80 °C
- IP66 and IP67 rated enclosure for robust protection
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
- Fast response time of 100 ms to 500 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial processes
- Measurement and monitoring of material fill levels in silos and containers
- Suitable for use in harsh environments with varying temperatures and pressures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption (5 mA to 30 mA) supports energy efficiency
- Reliable switching reduces material spillage and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV321-XXTGCRAMX02000 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
