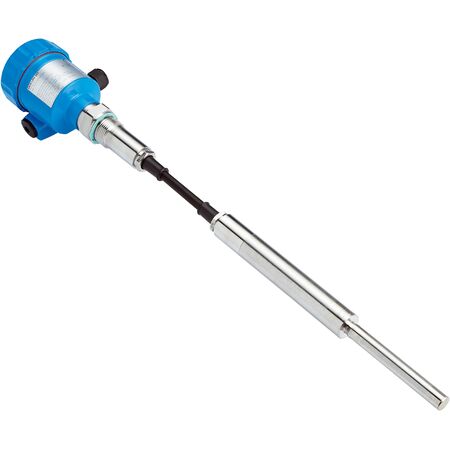

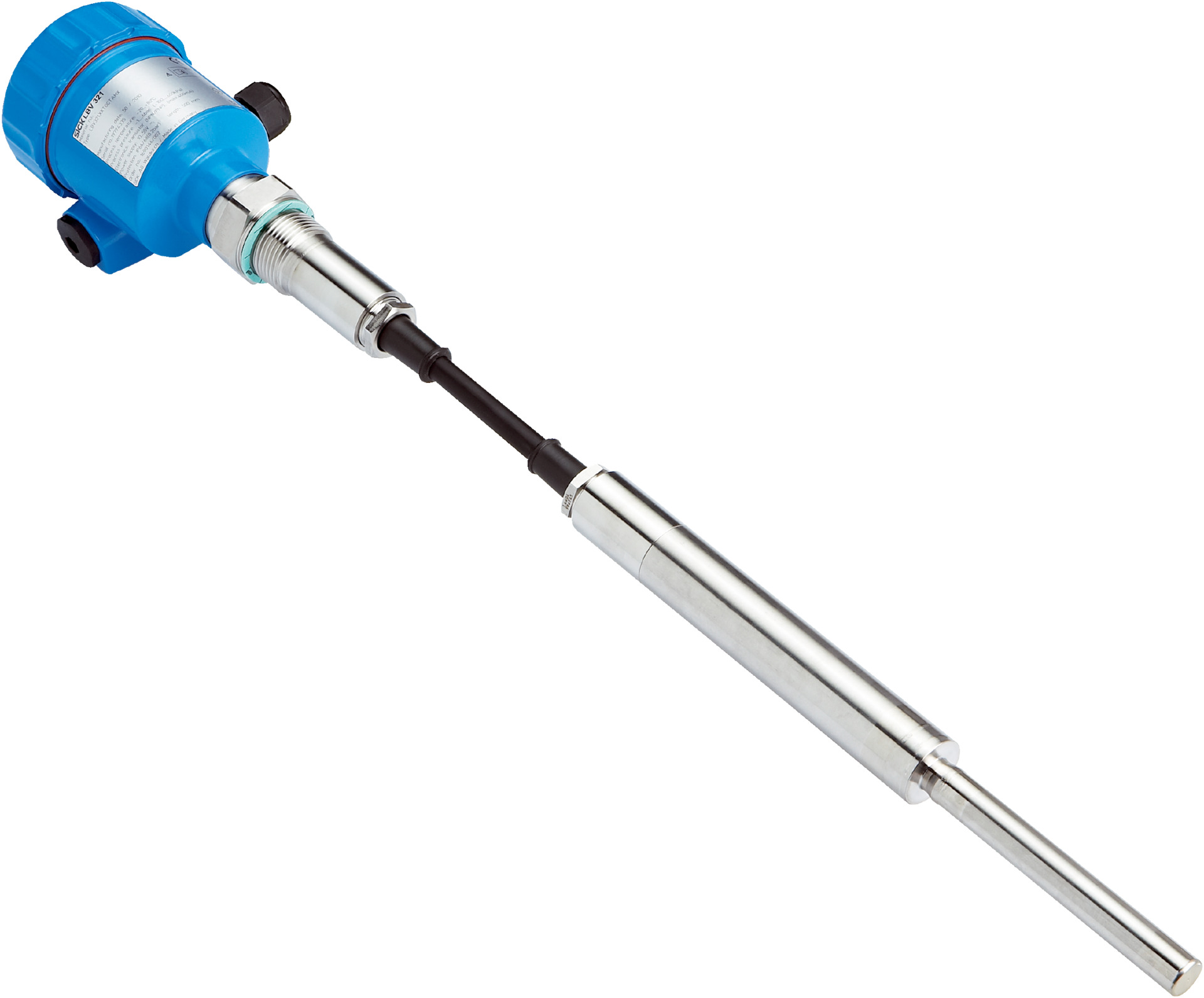

Bulk Solids Level Switch | Rod Probe Type | 2000 mm Length | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a 2000 mm rod probe for deep measurement. With a process temperature range of -20 °C to +80 °C and an accuracy of ±10 mm, it's perfect for monitoring material levels in silos and containers, even in harsh environments. Built with durable stainless steel and rated IP66/IP67, this sensor ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 2000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3000 N
- Accuracy of sensor element: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Power consumption: ≤10 mA
- Output signal: 1 x PNP/NPN transistor output
- Output current: <300 mA
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1, DIN 3852-A, PN 6 / 316L
- Housing material: Plastic
- Operating ambient temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 2000 mm length for deep level measurement
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process temperature range from -20 °C to +80 °C
- Process pressure range from -1 bar to 6 bar
- High accuracy with ±10 mm sensor element accuracy and ≤5 mm reproducibility
- Fast response time of 100 ms to 500 ms
- Volt-free transistor output with PNP/NPN options
- Enclosure rated IP66 and IP67 for dust and water protection
- Wetted parts made of stainless steel 316L for corrosion resistance
- Operating ambient temperature from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and monitoring of material levels in silos and containers
- Suitable for use in harsh environments with process pressures from -1 bar to 6 bar
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Low power consumption of ≤10 mA supports energy-efficient operation
- High reliability reduces waste and downtime in industrial processes
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK LBV321-XXTGCTKMX02000 Rod Probe Bulk Solids Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
