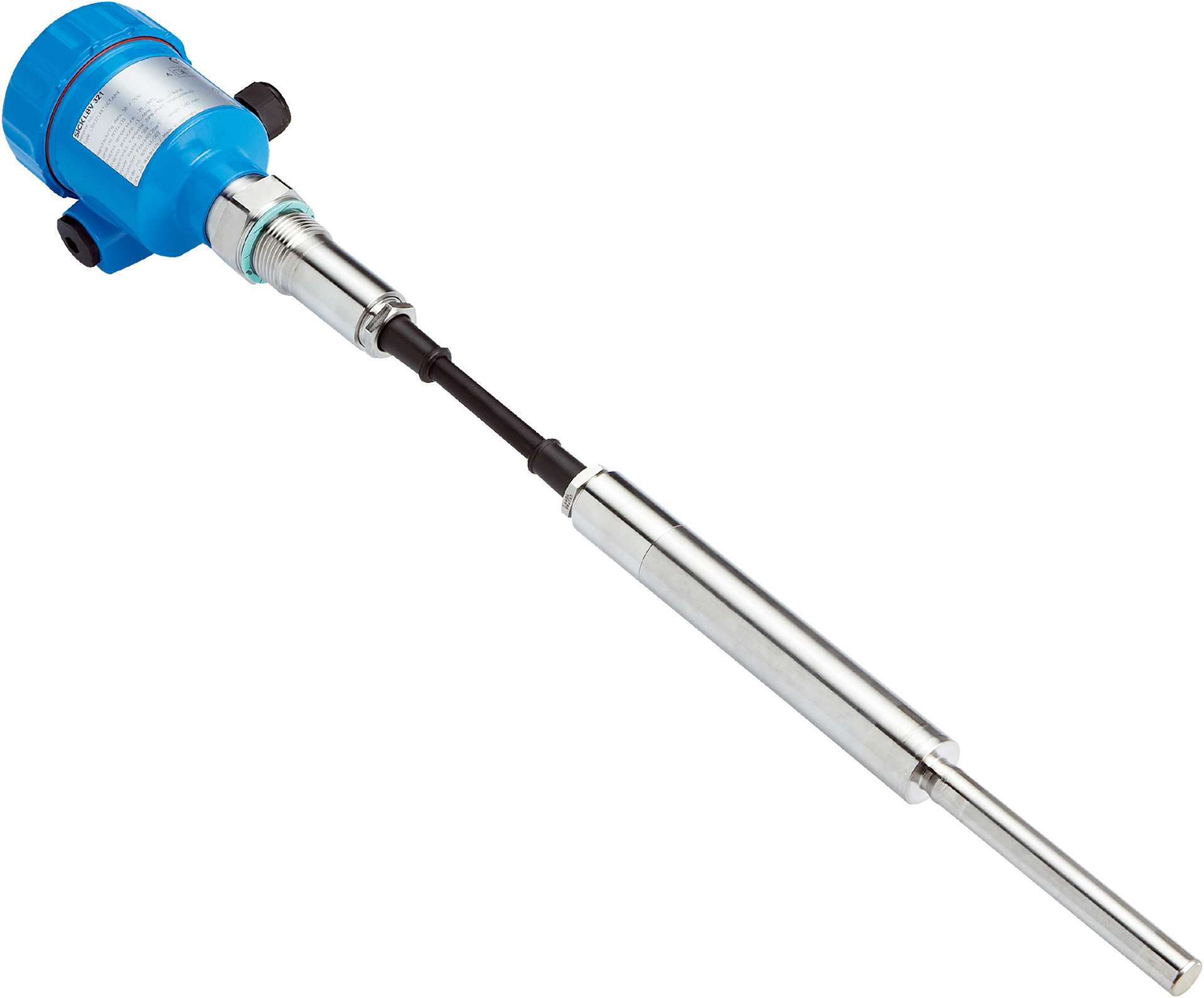

Bulk Solids Level Switch | Rod Probe 2000mm | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a robust 2000mm rod probe and double relay output for reliable switching. With a wide process temperature range of -40 °C to +150 °C and high pressure tolerance from -1 bar to 6 bar, it's perfect for monitoring bulk solids in silos and hoppers, ensuring efficiency and safety in chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 2,000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3,000 N
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN6 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 50mm x 2000mm x 50mm
- Weight: 2.5 kg
Key Features
- Rod probe type with 2,000 mm length suitable for bulk solids
- Double relay (DPDT) output signal for reliable switching
- High process pressure tolerance from -1 bar to 6 bar
- Wide process temperature range from -40 °C to +150 °C
- Stainless steel 316L wetted parts for corrosion resistance
- Enclosure rated IP66 and IP67 for harsh environments
- Fast response time of 100 ms to 500 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial level measurement devices to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial processes
- Measurement and control in storage silos and hoppers
- Process monitoring in chemical, food, and pharmaceutical industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption between 5 mA and 30 mA
- Reliable switching reduces process waste and improves efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now

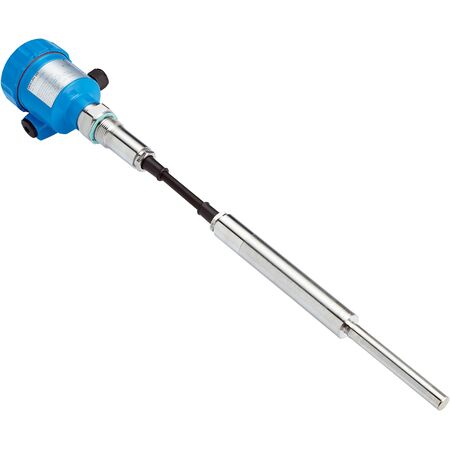

The SICK LBV321-XXHGDRAMX02000 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
