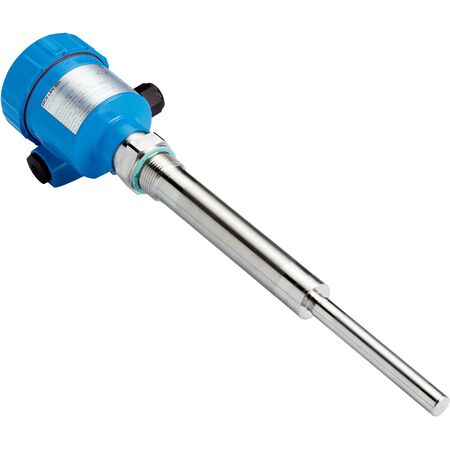

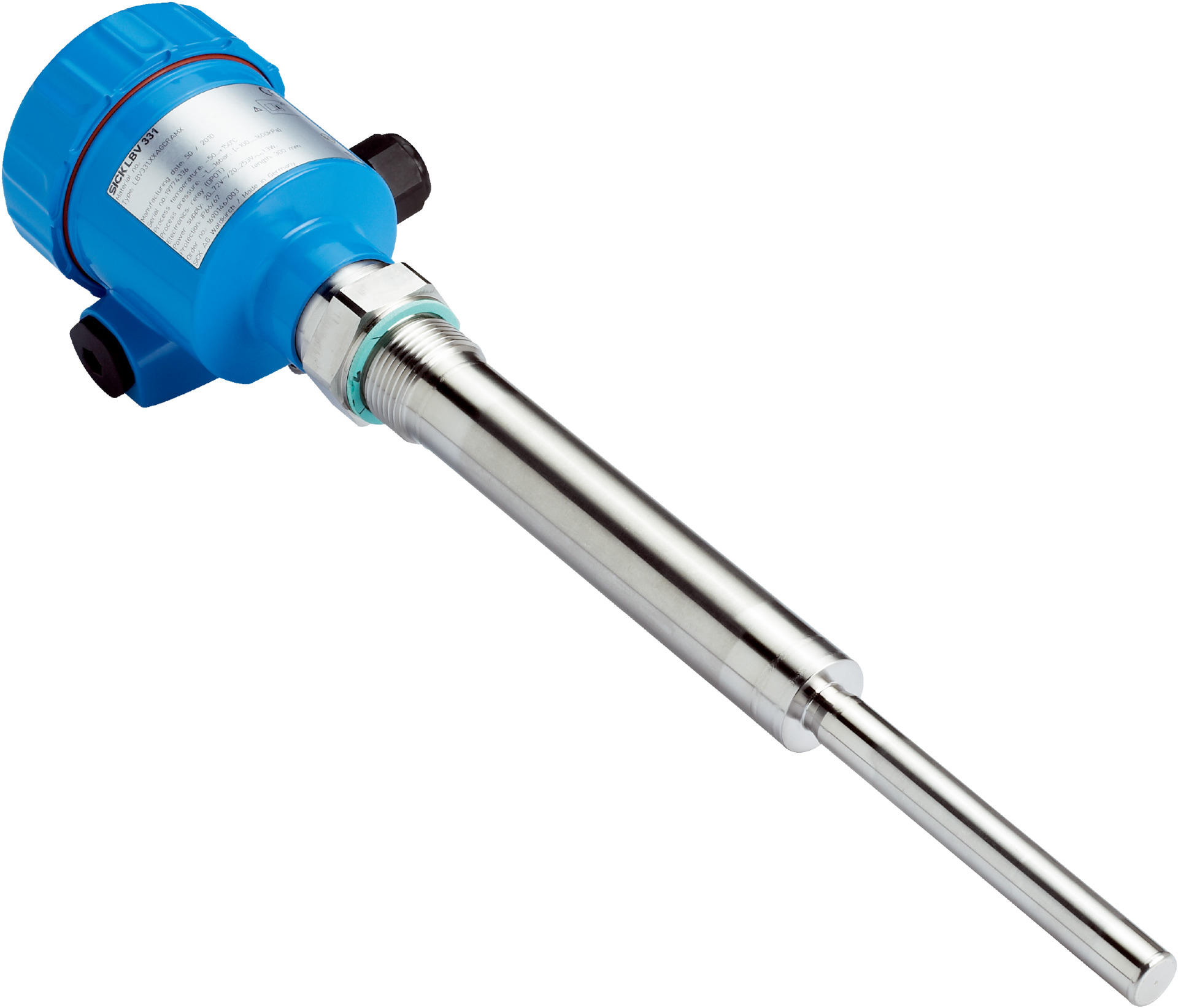

Bulk Solids Level Switch | Rod Probe 240 mm | ATEX Certified | IP66/IP67 Enclosure | by SICK
The Bulk Solids Level Switch with a 240 mm rod probe is designed for precise level measurement in industrial processes. Ideal for harsh environments, it operates within a pressure range of –1 bar to 16 bar and a temperature range of –50 °C to +150 °C. With ATEX certification for hazardous areas and an IP66/IP67 enclosure rating, this switch ensures reliable performance and durability in chemical, pharmaceutical, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Switch
- Probe type: Rod probe
- Probe length: 240 mm
- Process pressure: –1 bar to 16 bar
- Process temperature: –50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- ATEX approval: ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb
- Type examination: PTB 17 ATEX 1003 X
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms / 100 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 10 mA
- Initialization time: < 2 s
- VDE protection class 2 certified
- Connection type: M20 x 1.5
- Output signal: 1 x PNP/NPN transistor output
- Hysteresis: 10 mm
- Output current: < 300 mA
- Inductive load: 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN16 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: –40 °C to +70 °C
- Ambient storage temperature: –40 °C to +80 °C
- Dimensions (H x L x W): 240mm x 50mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe type with 240 mm length
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from –1 bar to 16 bar
- Process temperature range from –50 °C to +150 °C
- ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb certified for hazardous areas
- Volt-free transistor output PNP/NPN with output current < 300 mA
- Enclosure rating IP66 and IP67 for dust and water protection
- Stainless steel wetted parts (1.4404 / 316L) and aluminum housing
- High accuracy with ±10 mm sensor element accuracy and ≤5 mm reproducibility
- Fast response time of 100 ms to 500 ms
- Supply voltage range 10 V DC to 55 V DC with low power consumption ≤ 10 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and electrical safety standards.
Applications
- Bulk solids level measurement and switching in industrial processes
- Suitable for use in harsh environments with pressure and temperature variations
- Ideal for process control in chemical, pharmaceutical, and food industries
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption contributes to energy efficiency
- Reliable switching reduces process waste and improves operational efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV331-LXAGDTAMX0240 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
