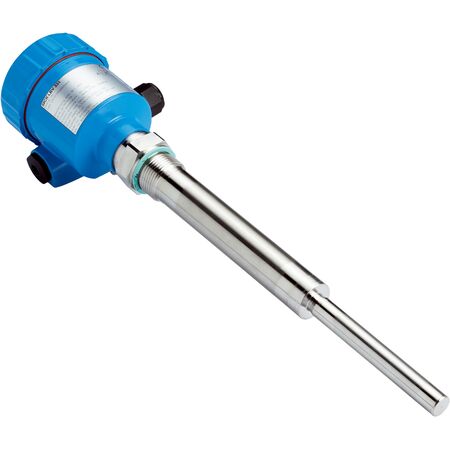

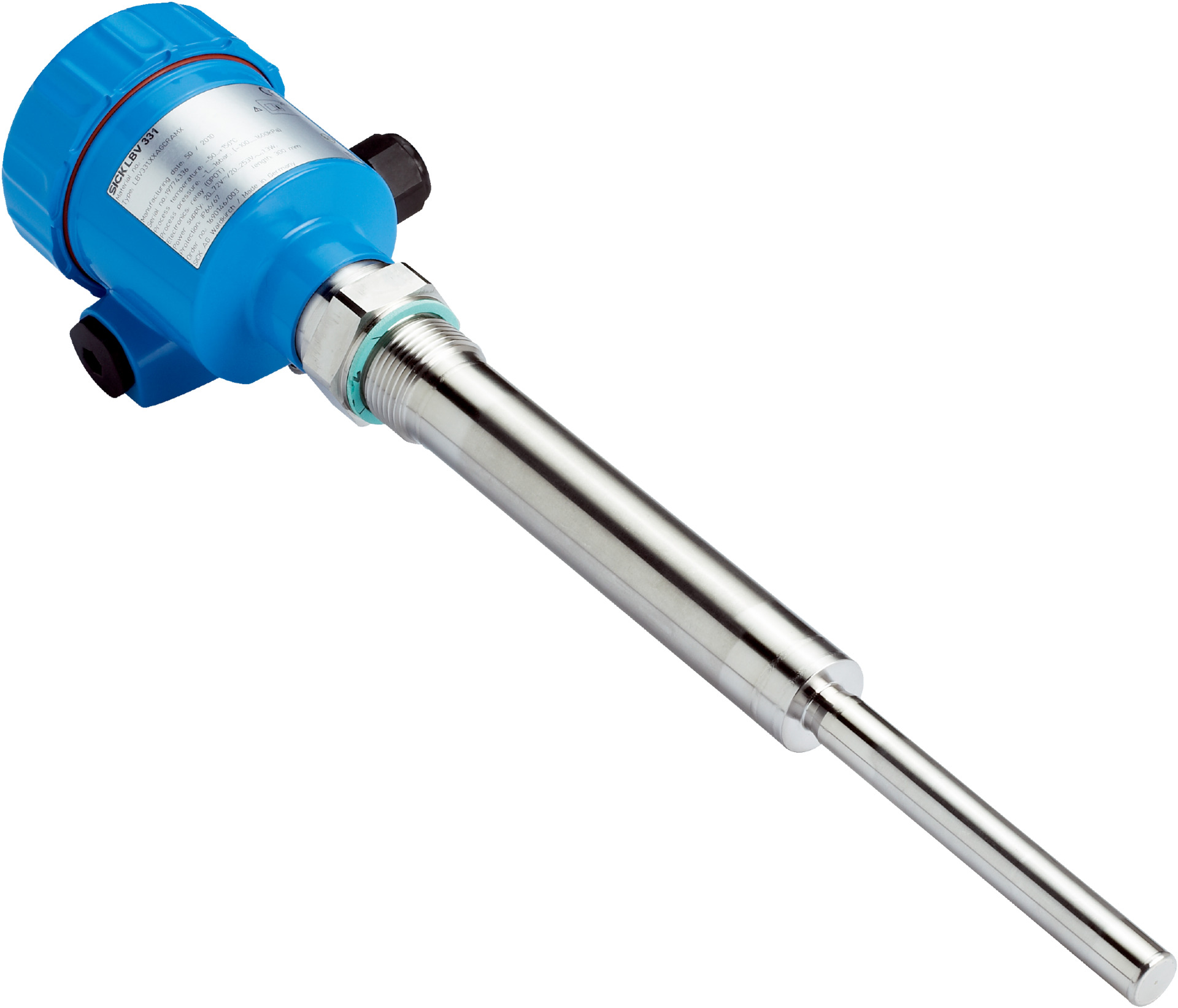

Bulk Solids Level Switch | Rod Probe Type | 243 mm Length | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for reliable level detection in industrial applications, featuring a rod probe type with a 243 mm length. It operates effectively in harsh environments with a process temperature range of -50 °C to +150 °C and a pressure range of -1 bar to 16 bar. With high accuracy and fast response time, this sensor is perfect for monitoring fill levels in storage containers and process tanks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 243 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: <2 s
- Output signal: 1 x PNP/NPN volt-free transistor output
- Output current: <300 mA
- Inductive load: 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1, DIN 3852-A, PN 16 / 316L
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 300mm x 243mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe type with 243 mm length for reliable level detection
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from -1 bar to 16 bar
- Wide process temperature range from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element accuracy and ≤5 mm reproducibility
- Fast response time of 100 ms to 500 ms
- Volt-free transistor output with PNP/NPN options
- Robust stainless steel wetted parts (1.4404 / 316L) and plastic housing
- Enclosure rated IP66 and IP67 for dust and water protection
- VDE protection class 2 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Bulk solids level detection in industrial process tanks and silos
- Measurement and monitoring of fill levels in storage containers
- Suitable for use in harsh environments with varying temperatures and pressures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤10 mA supports energy efficiency
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV331-XXAGCTKMX0243 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level monitoring applications.
