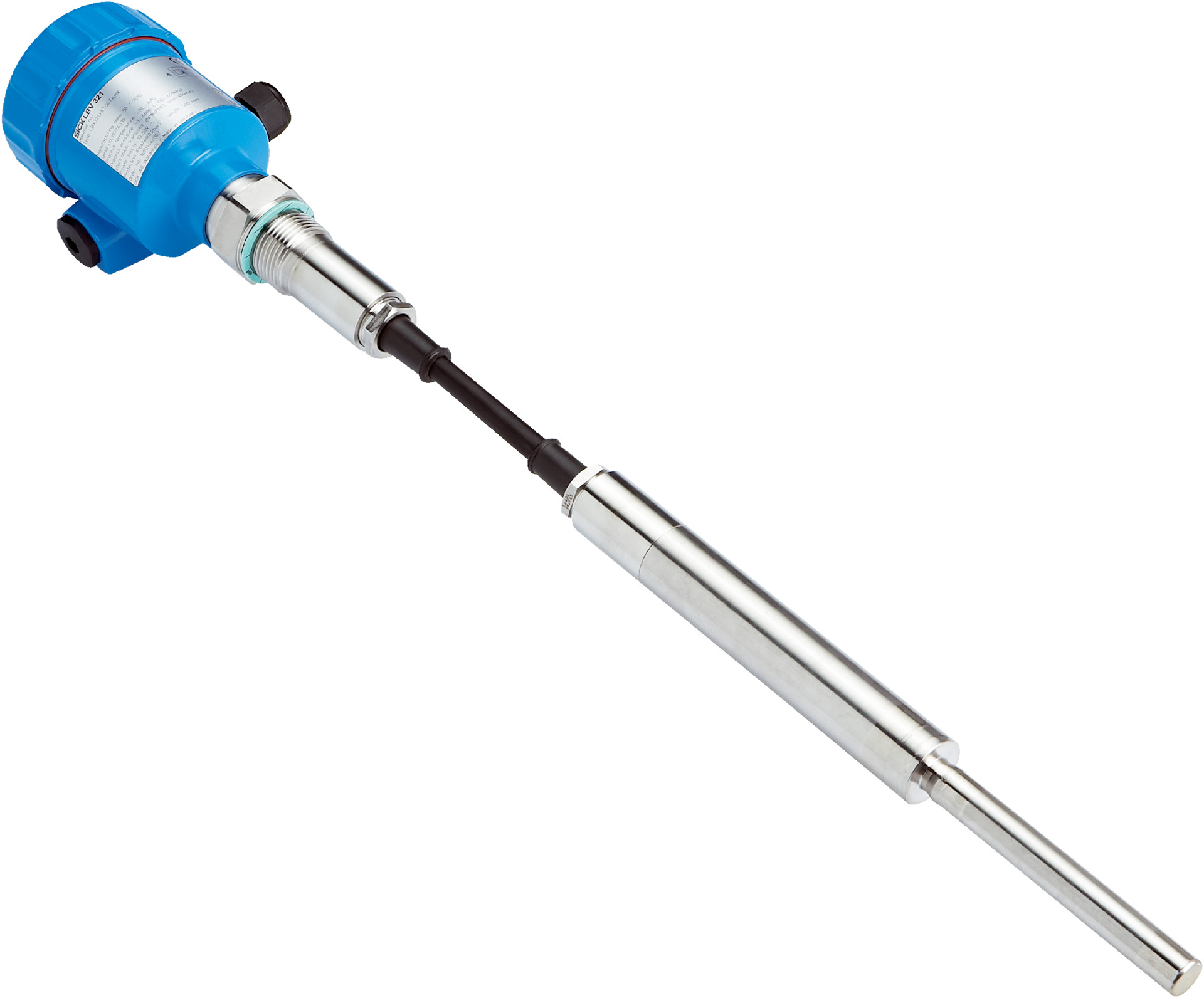

Bulk Solids Level Switch | Rod Probe Type | 3,500 mm Length | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a robust rod probe type with a 3,500 mm length. With an accuracy of ±10 mm and a wide process pressure range of -1 bar to 6 bar, it’s perfect for harsh environments. Built with stainless steel 316L and aluminum housing, this sensor ensures durability and reliability in chemical, food, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 3,500 mm
- Process pressure range: -1 bar to 6 bar
- Process temperature range: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3,000 N
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms or 100 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1, DIN 3852-A, PN 6 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 3500mm x 50mm x 50mm
- Weight: 3 kg
Key Features
- Rod probe type with 3,500 mm length for deep bulk solids measurement
- Double relay (DPDT) output signal for reliable switching
- High accuracy with ±10 mm sensor element precision
- Robust stainless steel 316L wetted parts and aluminum housing
- IP66 and IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40 °C to +70 °C
- Process pressure tolerance from -1 bar to 6 bar
- Low power consumption between 5 mA and 30 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Suitable for use in harsh environments with varying temperatures and pressures
- Ideal for process control in chemical, food, and pharmaceutical industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
- Reliable switching minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

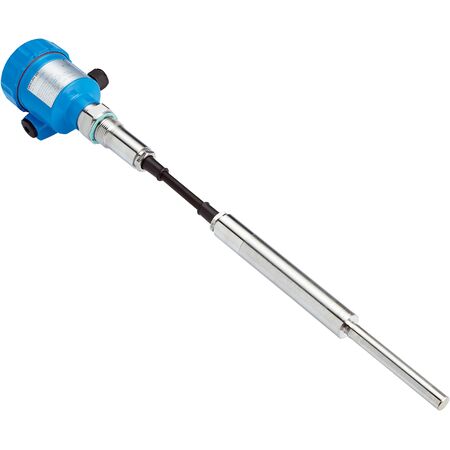

The SICK LBV321-XXTGCRAMX03500 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level monitoring applications.
