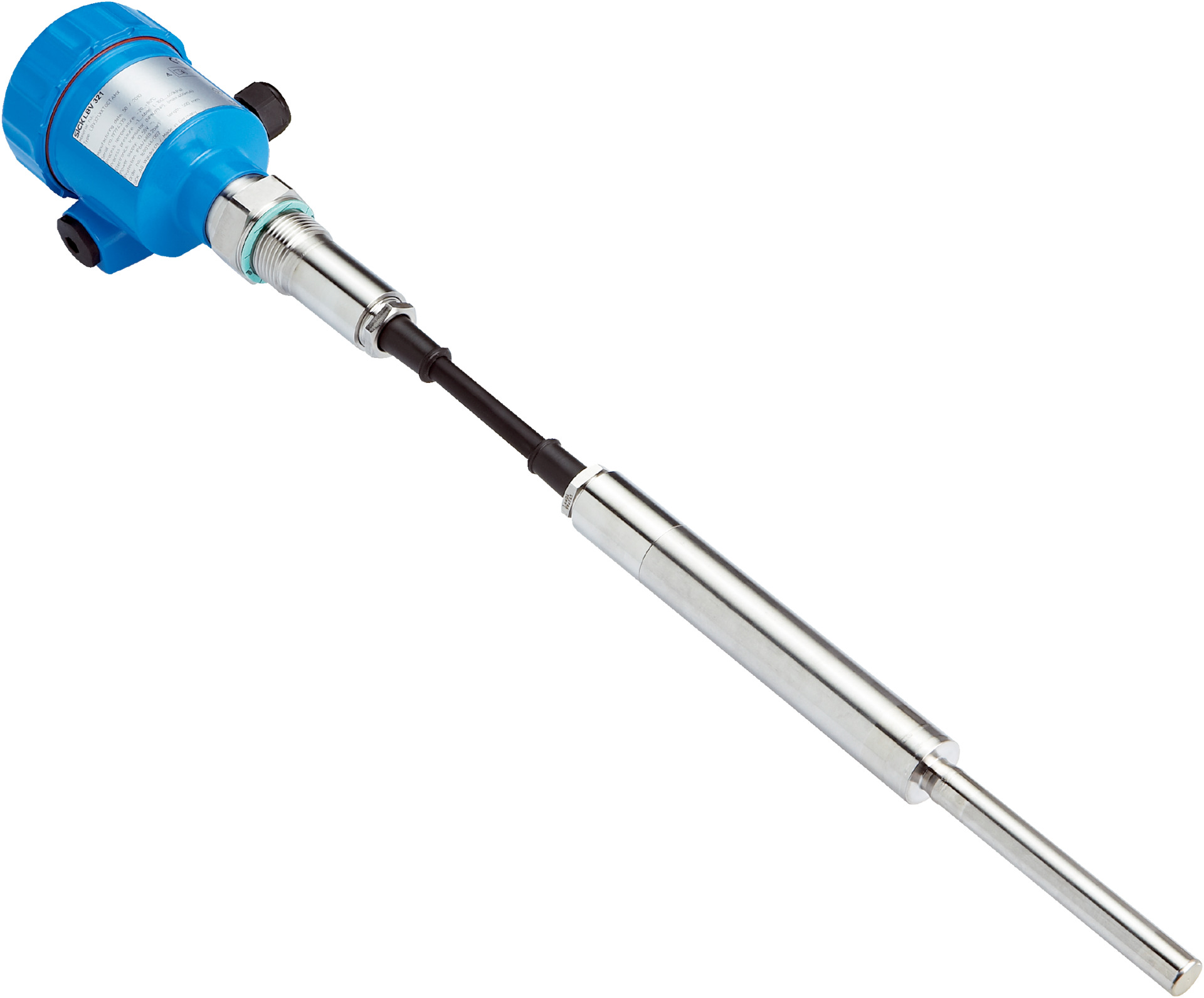

Bulk Solids Level Switch | Rod Probe 5000 mm | Double Relay Output | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a robust 5000 mm rod probe and double relay output for reliable switching. With a wide process temperature range from -20 °C to +80 °C and durable stainless steel wetted parts, this sensor is perfect for bulk solids in storage and processing environments, ensuring efficient material handling and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 5000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1, DIN 3852-A, PN 6 / 316L
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 5000mm x 50mm x 50mm
- Weight: 3 kg
Key Features
- Rod probe type with 5000 mm length suitable for bulk solids
- Double relay (DPDT) output signal for reliable switching
- High process pressure tolerance from -1 bar to 6 bar
- Wide process temperature range from -20 °C to +80 °C
- Stainless steel wetted parts (1.4404 / 316L) for durability
- IP66 and IP67 rated enclosure for robust protection
- Fast response time of 100 ms to 500 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and control in material handling systems
- Process monitoring in manufacturing plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption (5 mA to 30 mA) supports energy efficiency
- Reliable switching reduces process downtime and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

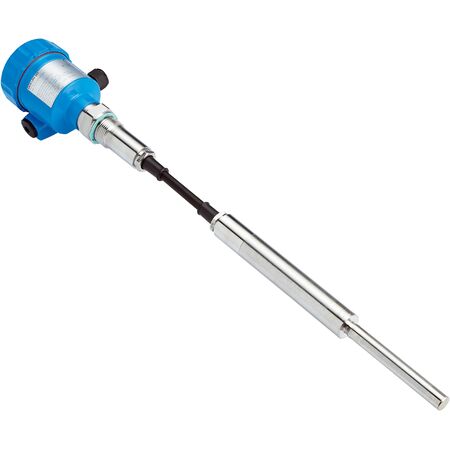

The SICK LBV321-XXCGCRKMX05000 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
