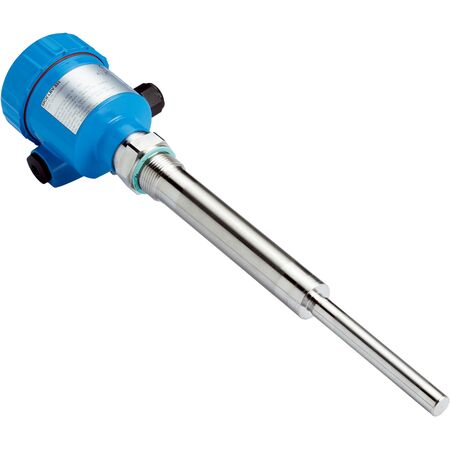

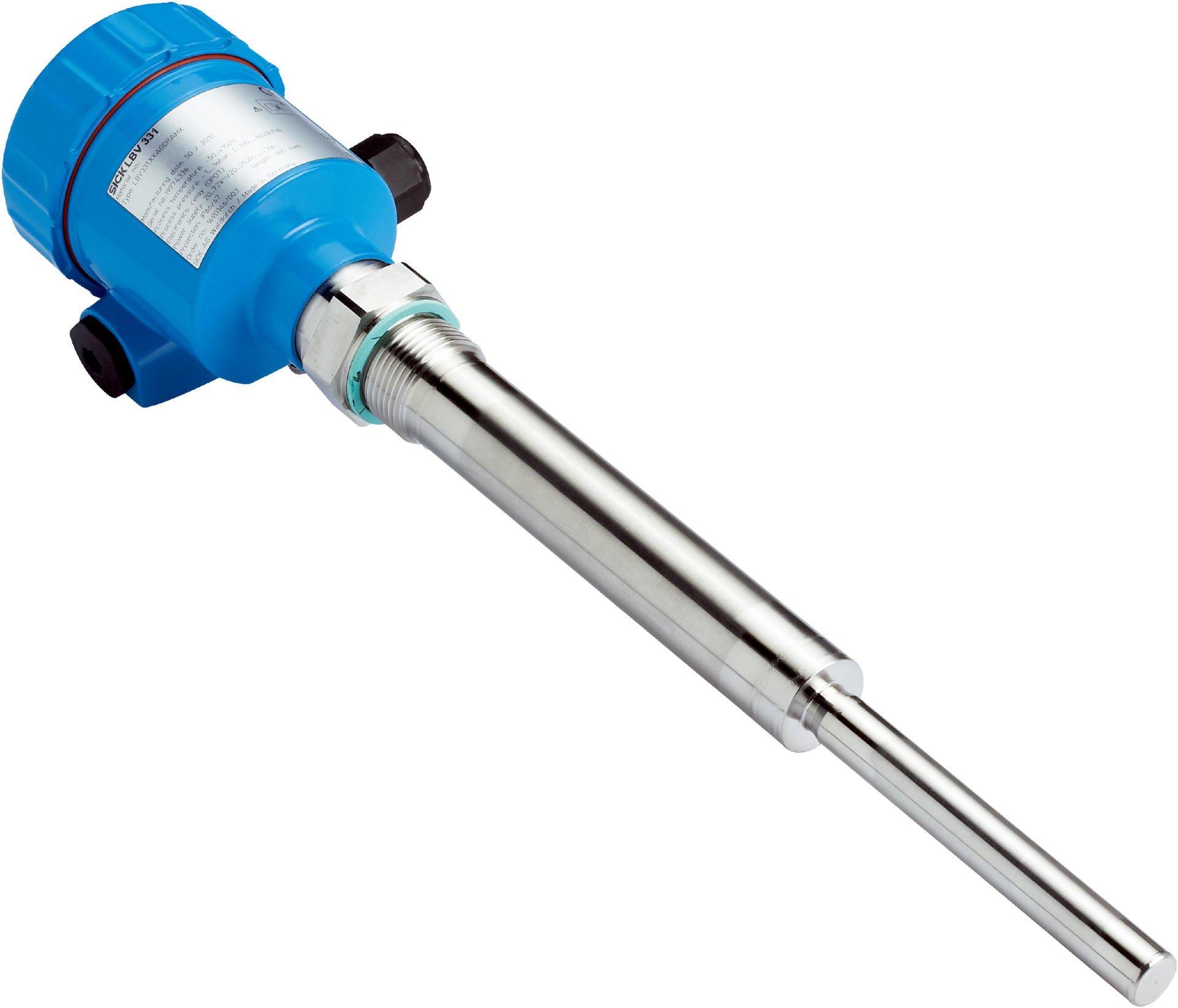

Bulk Solids Level Switch | Rod Probe 500 mm | Double Relay Output | ATEX Certified | by SICK
The Bulk Solids Level Switch with a 500 mm rod probe is designed for precise level detection in industrial applications. With a wide process pressure range of -1 bar to 16 bar and an operating temperature from -50 °C to +150 °C, it’s perfect for harsh environments. Featuring a double relay output for reliable switching and robust stainless steel construction, this sensor ensures durability and accuracy in bulk solids measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 500 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Output current: >10 µA; <3A AC, 1A DC
- Connection type: M20 x 1.5
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN16 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 500mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 500 mm length for bulk solids measurement
- Double relay (DPDT) output signal for reliable switching
- Wide process pressure range from -1 bar to 16 bar
- Operating temperature range from -50 °C to +150 °C
- ATEX II 1D, 1/2D, 2D certification for hazardous environments
- High accuracy with ±10 mm sensor element precision and ≤5 mm reproducibility
- Robust stainless steel 316L wetted parts and aluminum housing
- Enclosure rated IP66 and IP67 for dust and water protection
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with safety standards and proper operation, especially in hazardous areas.
Applications
- Bulk solids level detection in industrial storage and processing
- Suitable for use in harsh environments with ATEX hazardous area certification
- Process industries requiring reliable level switching under pressure and temperature variations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of 5 mA to 30 mA supports energy efficiency
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK LBV331-GXAGDRAMX0500 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level detection applications.
