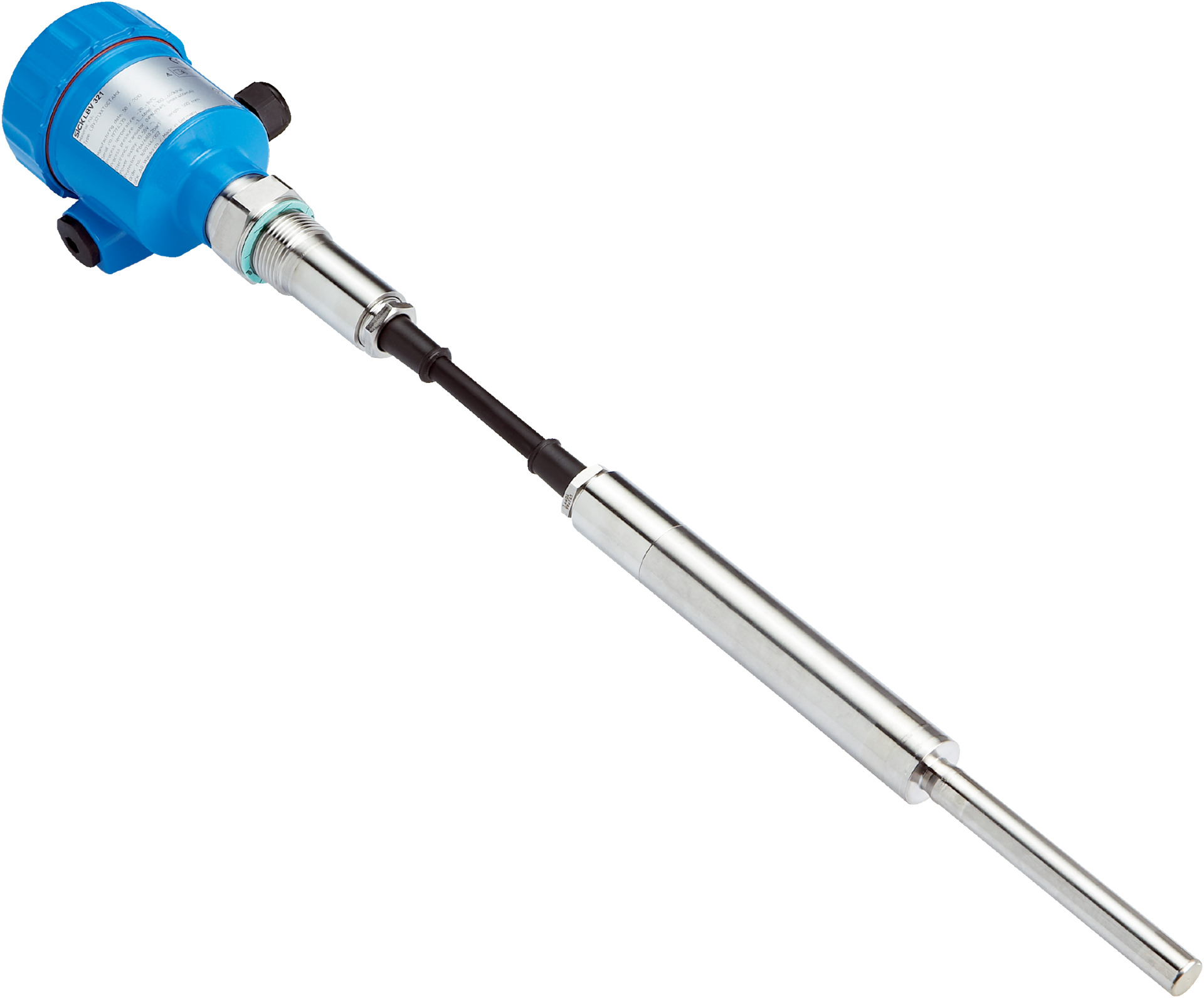

Bulk Solids Level Switch | Rod Probe 500 mm | IP66 & IP67 Rated | High Accuracy ±10 mm | by SICK
The Bulk Solids Level Switch with a 500 mm rod probe is designed for precise level detection in industrial applications. With a process pressure range of -1 bar to 6 bar and a temperature range of -20 °C to +80 °C, it ensures reliable performance in harsh environments. Featuring a fast response time and robust IP66/IP67 enclosure, this sensor is perfect for material handling and process monitoring in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 500 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3,000 N
- Accuracy: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Power consumption: ≤ 10 mA
- Output signal: 1 x PNP/NPN transistor output
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN6 / 316L
- Housing material: Plastic
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 500mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 500 mm length suitable for bulk solids
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- High accuracy sensor element with ±10 mm precision
- Volt-free transistor output with PNP/NPN options
- Enclosure rated IP66 and IP67 for robust protection
- Stainless steel 316L wetted parts for corrosion resistance
- Fast response time of 100 ms to 500 ms
- Low power consumption of ≤ 10 mA
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and control in material handling systems
- Process monitoring in manufacturing and production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The SICK LBV321-XXTGDTKMX00500 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk material level monitoring and control applications.
