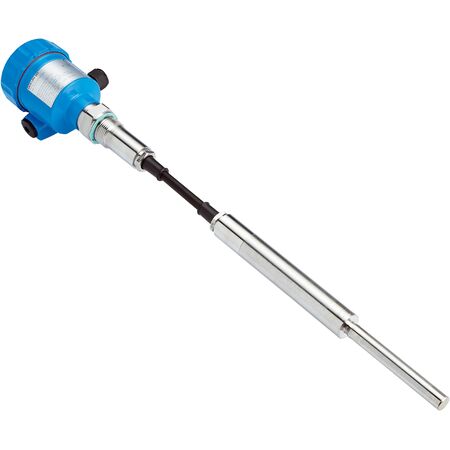

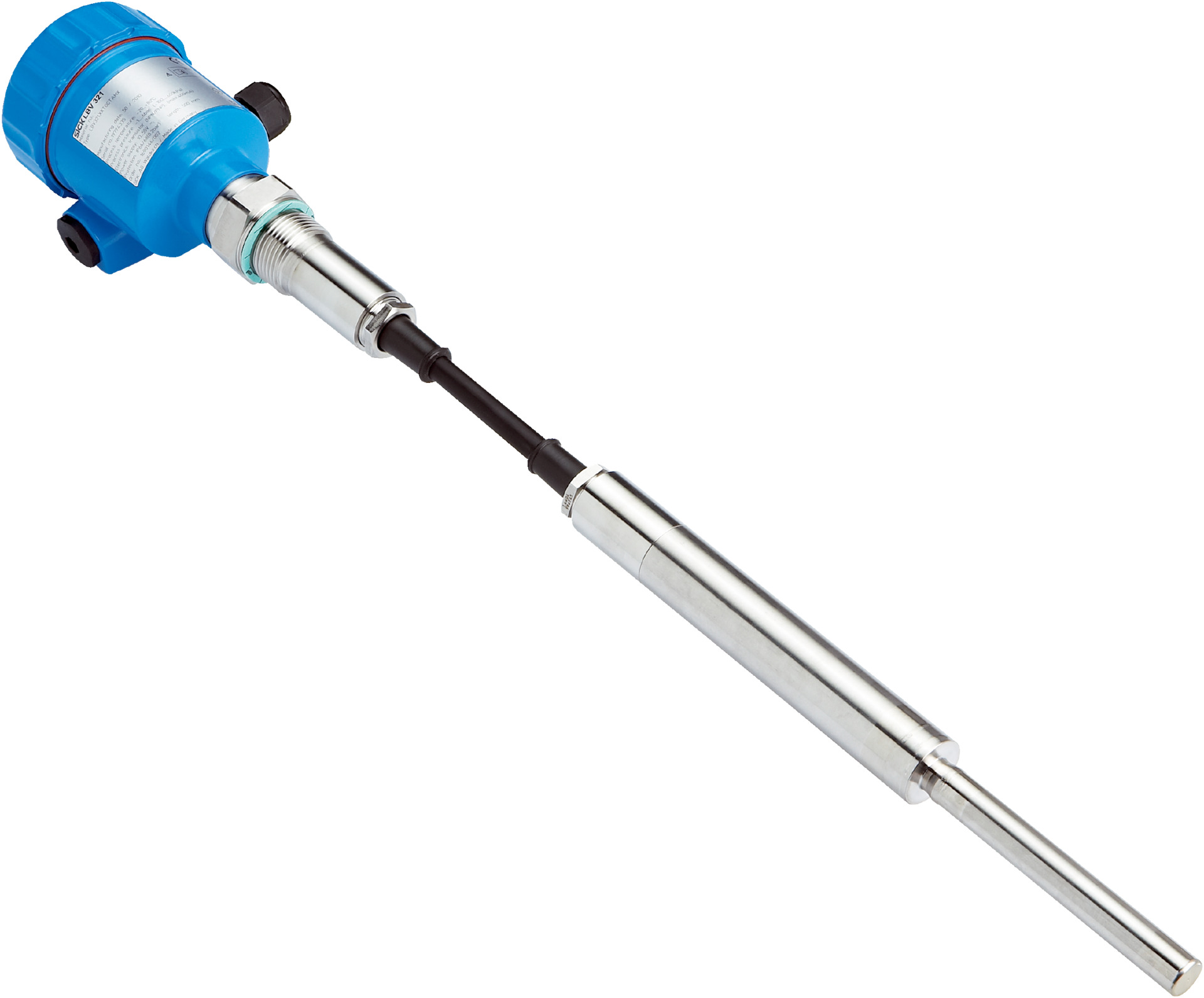

Bulk Solids Level Switch | Rod Probe Type | 5200 mm Length | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a 5200 mm rod probe for deep measurement. With a process pressure range of -1 bar to 6 bar and a temperature range of -20 °C to +80 °C, it’s perfect for monitoring material levels in silos and containers. Built with durable stainless steel and offering high accuracy, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 5200 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3000 N
- Accuracy: ±10 mm
- Reproducibility: ≤5 mm
- Response time: 100 ms to 500 ms
- Supply voltage: 10 V DC to 55 V DC
- Power consumption: ≤10 mA
- Output signal: 1 x PNP/NPN transistor output
- Output current: <300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Housing material: Plastic
- Dimensions (H x L x W): 5200mm x 50mm x 50mm
- Weight: 3.5 kg
Key Features
- Rod probe type with 5200 mm length for deep level measurement
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- High accuracy with ±10 mm sensor element accuracy and ≤5 mm reproducibility
- Fast response time of 100 ms to 500 ms
- Volt-free transistor output with PNP/NPN options
- Enclosure rated IP66 and IP67 for dust and water protection
- Wetted parts made of stainless steel 1.4404 / 316L for corrosion resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure safety and compliance.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and monitoring of material levels in silos and containers
- Suitable for use in harsh environments with process pressures up to 6 bar
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption of ≤10 mA supports energy-efficient operation
- High reliability with MTBF of 4.17 million hours reduces downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV321-XXTGCTKMX05200 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
