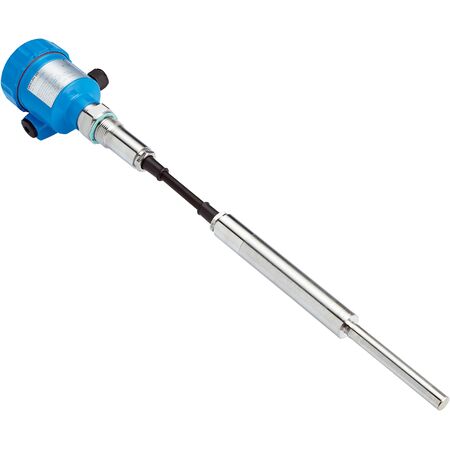

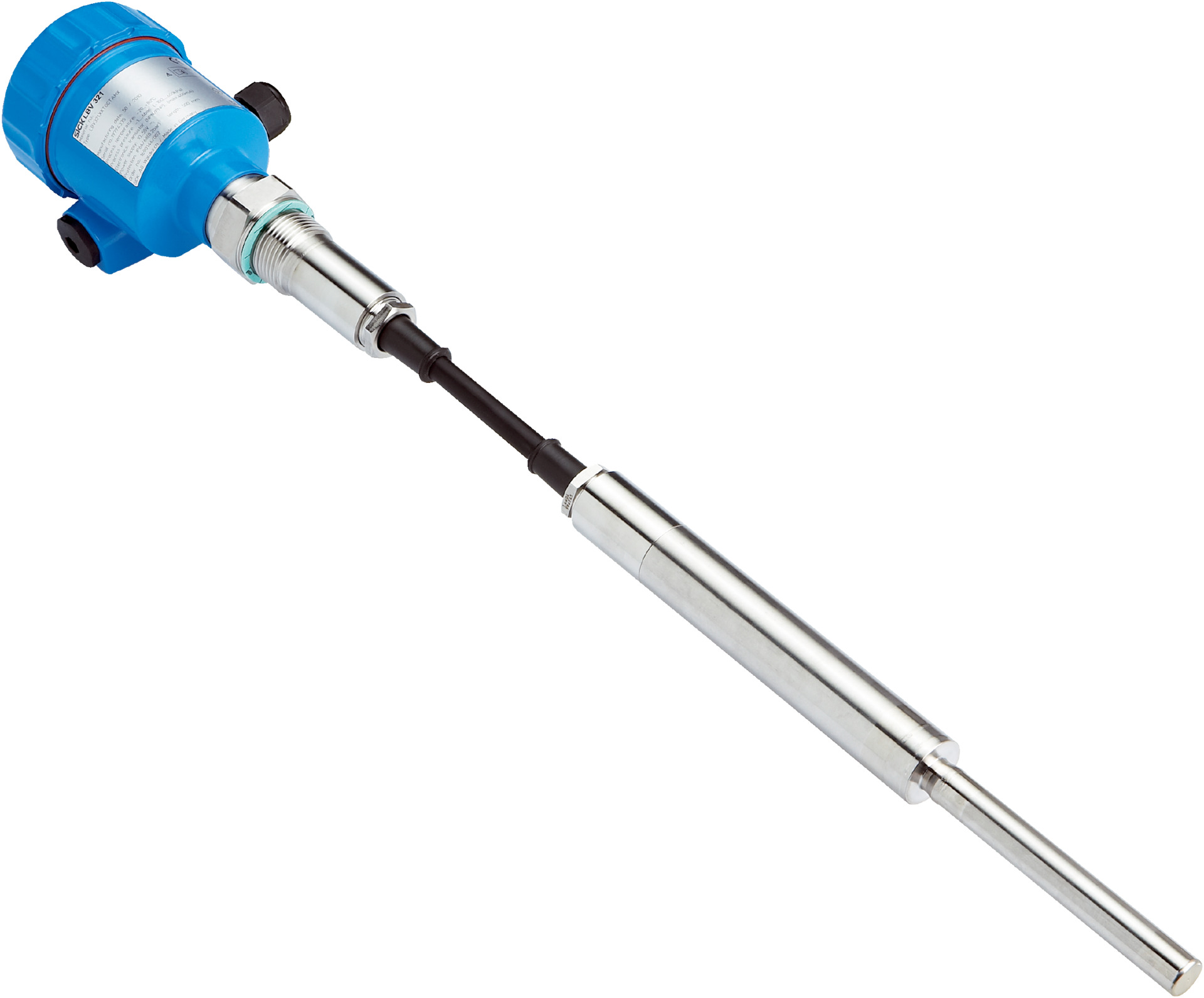

Bulk Solids Level Switch | Rod Probe Type | 6000 mm Length | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a 6000 mm rod probe for deep measurement. With a robust IP66 and IP67 enclosure, it ensures reliable operation in harsh environments, making it ideal for silos and hoppers. This sensor supports a wide process temperature range from -20 °C to +80 °C and offers high accuracy of ±10 mm, ensuring optimal performance in bulk solids monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 6000 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3000 N
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN6 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 6000mm x 50mm x 50mm
- Weight: 5 kg
Key Features
- Rod probe type with 6000 mm length for deep level measurement
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- Double relay (DPDT) output signal for reliable switching
- Enclosure rated IP66 and IP67 for dust and water protection
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
- High accuracy of ±10 mm and reproducibility ≤ 5 mm
- Fast response time of 100 ms to 500 ms
- Wide supply voltage range from 20 V DC to 253 V AC
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and control of material levels in silos and hoppers
- Suitable for use in harsh environments with varying temperatures and pressures
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption (5 mA to 30 mA) supports energy efficiency
- Reliable operation minimizes material spillage and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV321-XXCGDRAMX06000 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk material level monitoring applications.
