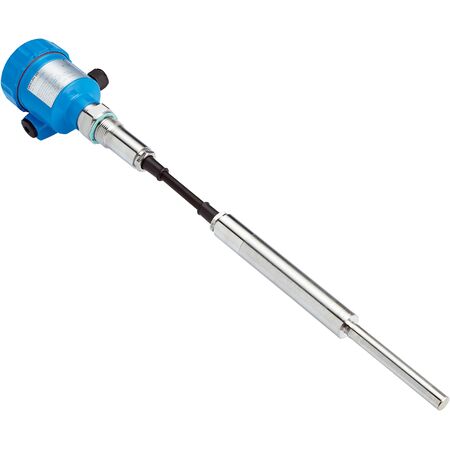

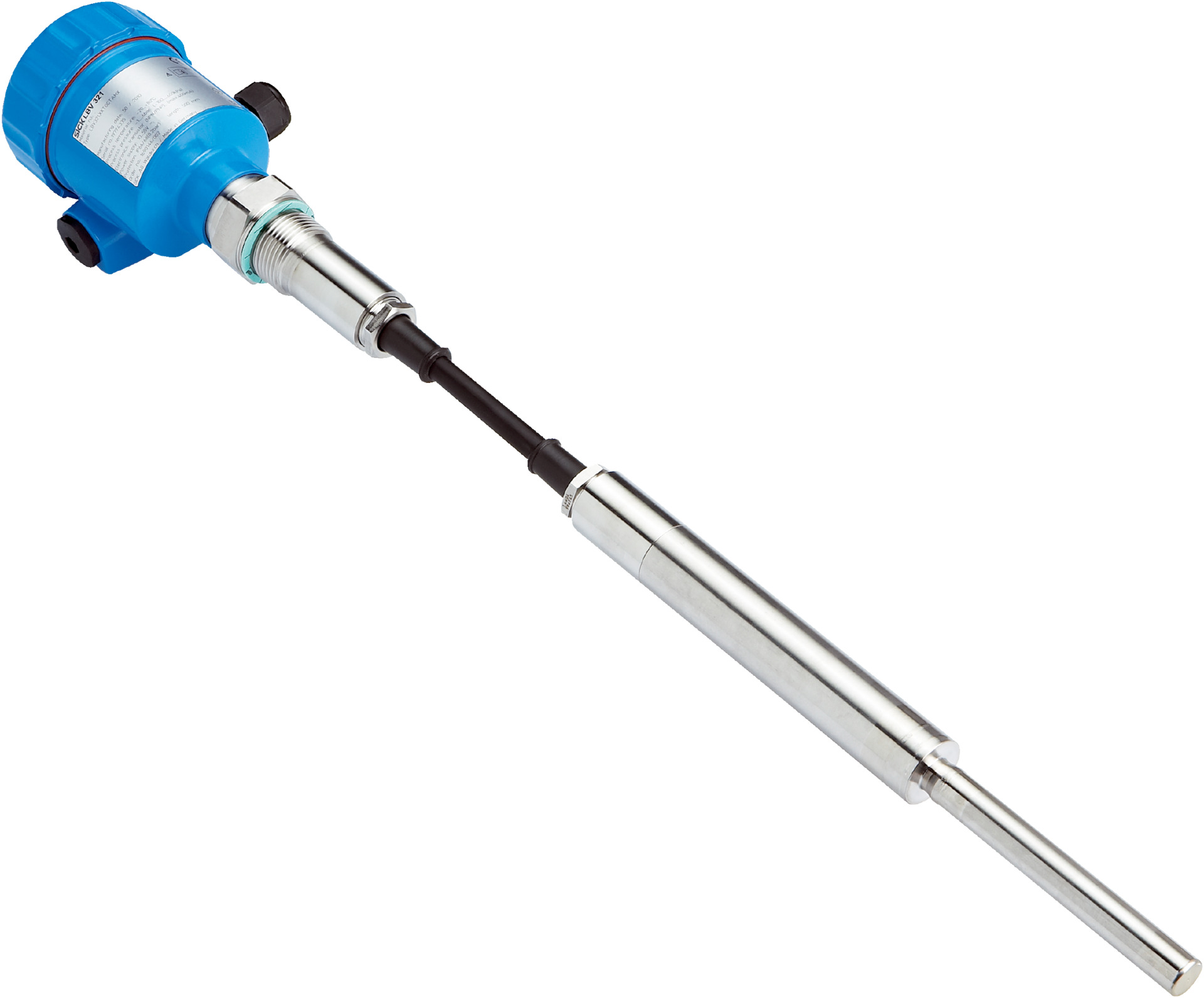

Bulk Solids Level Switch | Rod Probe 6600mm | IP66 & IP67 Rated | Double Relay Output | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a 6600mm rod probe for deep measurement. With a robust IP66 and IP67 enclosure, it ensures reliable operation in harsh environments, while the double relay output provides dependable switching for bulk solids with a density of ≥ 0.02 g/cm³. Ideal for silos and containers, this sensor is built for durability and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement type: Switch for bulk solids
- Probe length: 6,600 mm
- Process pressure: -1 bar to 6 bar
- Process temperature: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3,000 N
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 100 ms to 500 ms
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Output signal: Double relay (DPDT)
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN6 / 316L
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 6600mm x 50mm x 50mm
- Weight: 5 kg
Key Features
- Rod probe type with 6,600 mm length for deep level measurement
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from -1 bar to 6 bar
- Process temperature range from -20 °C to +80 °C
- Double relay (DPDT) output signal for reliable switching
- Enclosure rated IP66 and IP67 for dust and water protection
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
- Fast response time of 100 ms to 500 ms
- High accuracy with ±10 mm sensor element accuracy
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and control of material levels in silos and containers
- Suitable for use in harsh environments with varying temperatures and pressures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption (5 mA to 30 mA) supports energy efficiency
- Reliable switching reduces material spillage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LBV321-XXTGDRKMX06600 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk material level monitoring applications.
