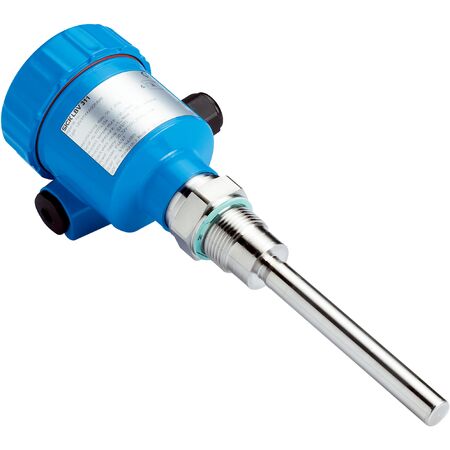

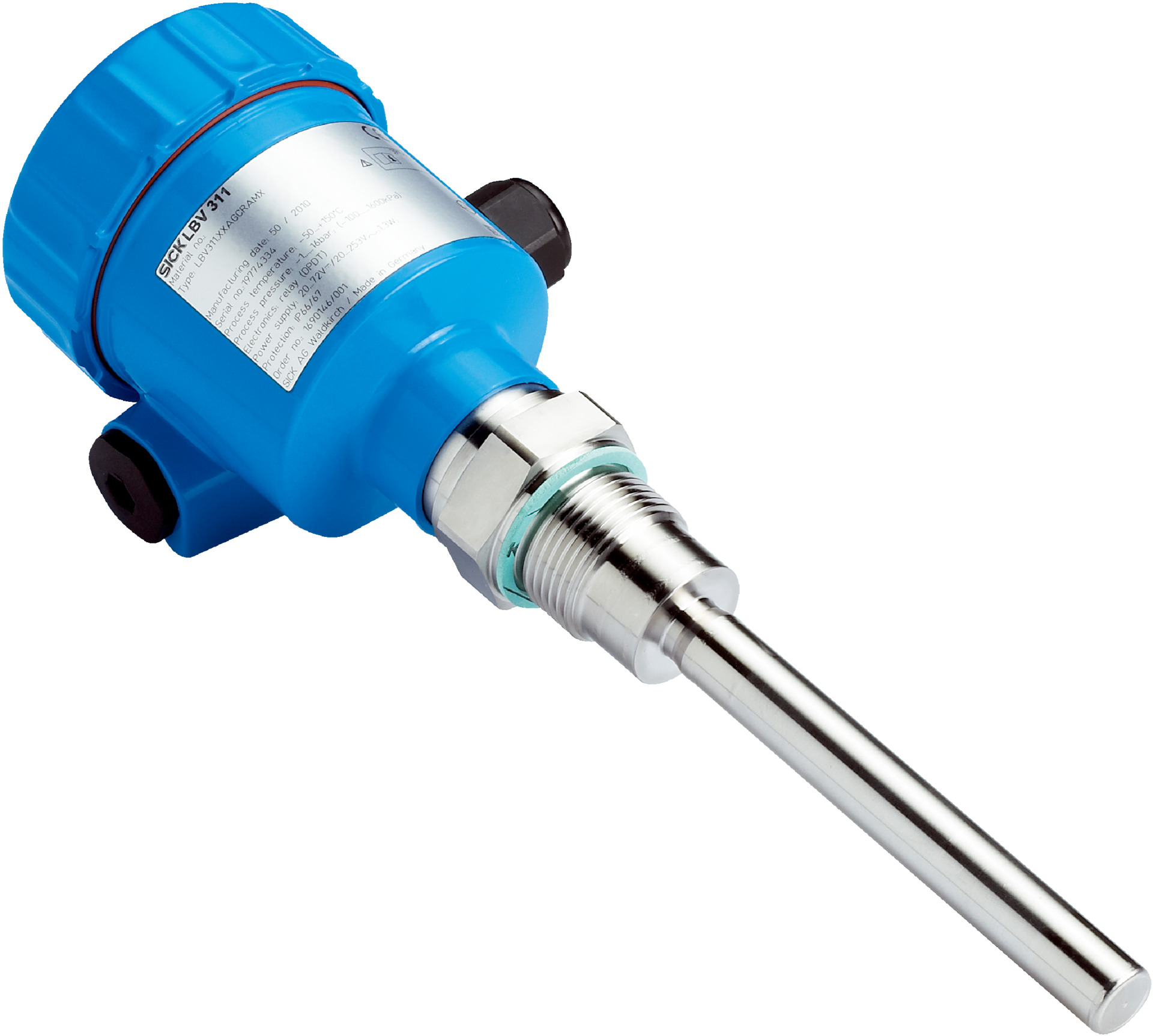

Bulk Solids Level Switch | Rod Probe Type | ATEX Certified | IP66 & IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial processes, featuring a 160 mm rod probe and ATEX certification for hazardous environments. With a high accuracy of ±10 mm and a fast response time of 100 ms to 500 ms, this sensor is perfect for bulk solids with a fill material density of ≥ 0.02 g/cm³, ensuring reliable operation and minimal process interruptions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Switch
- Probe type: Rod probe
- Probe length: 160 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- ATEX approval: ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb
- Type examination: PTB 17 ATEX 1003 X
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms or 100 ms
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 10 mA
- Initialization time: < 2 s
- Connection type: ½" NPT
- Output signal: 1 x PNP/NPN transistor output
- Hysteresis: 10 mm
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN16 / 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 160 mm length
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb certified
- High accuracy sensor element with ±10 mm accuracy
- Fast response time of 100 ms to 500 ms
- Volt-free transistor output PNP/NPN with output current < 300 mA
- Enclosure rated IP66 and IP67 for harsh environments
- Stainless steel 316L wetted parts and aluminum housing
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety and ATEX certification standards.
Applications
- Bulk solids level detection in industrial processes
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for process temperatures from -50 °C to +150 °C
- Ideal for ATEX hazardous area applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption of ≤ 10 mA supports energy efficiency
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK LBV311-LXAGGTANX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
