Bulk Solids Level Switch | Rod Probe Type | High Pressure Tolerance | IP66/IP67 Rated | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial applications, featuring a robust rod probe type suitable for bulk solids measurement. With a high process pressure tolerance from -1 bar to 6 bar and a wide temperature range of -20 °C to +80 °C, this sensor ensures reliable performance in harsh environments. Ideal for material handling and process automation, it offers low power consumption and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe length: 879 mm
- Process pressure range: -1 bar to 6 bar
- Process temperature range: -20 °C to +80 °C
- Fill material density: ≥ 0.02 g/cm³
- Tensile strength: ≤ 3,000 N
- Accuracy: ±10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Power consumption: ≤ 10 mA
- Output signal: 1 x PNP/NPN transistor output
- Hysteresis: 10 mm
- Output current: < 300 mA
- Enclosure rating: IP66, IP67
- Connection type: M20 x 1.5
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 ½, DIN 3852-A, PN6 / 316L
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S, PUR, FEB
- Ambient operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 900mm x 30mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe type suitable for bulk solids measurement
- Volt-free transistor output with PNP/NPN options
- High process pressure tolerance from -1 bar to 6 bar
- Wide process temperature range from -20 °C to +80 °C
- Robust stainless steel wetted parts (1.4404 / 316L)
- Enclosure rated IP66 and IP67 for harsh environments
- Fast response time of 100 ms to 500 ms
- High accuracy with ±10 mm sensor element precision
- Low power consumption of ≤ 10 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure proper setup and safety compliance.
Applications
- Bulk solids level detection in industrial storage and processing
- Material handling and inventory control
- Process automation in manufacturing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
- Supports efficient process control to minimize material loss
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now

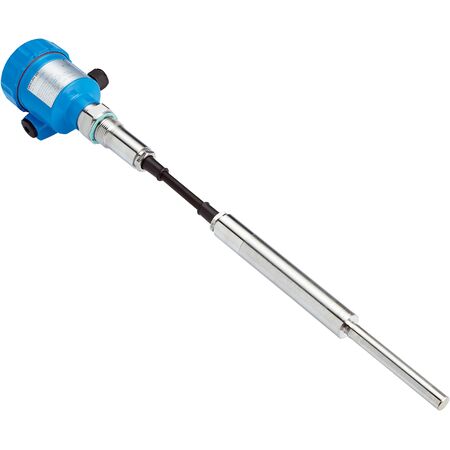

The SICK LBV321-XXTGDTKMX00879 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
