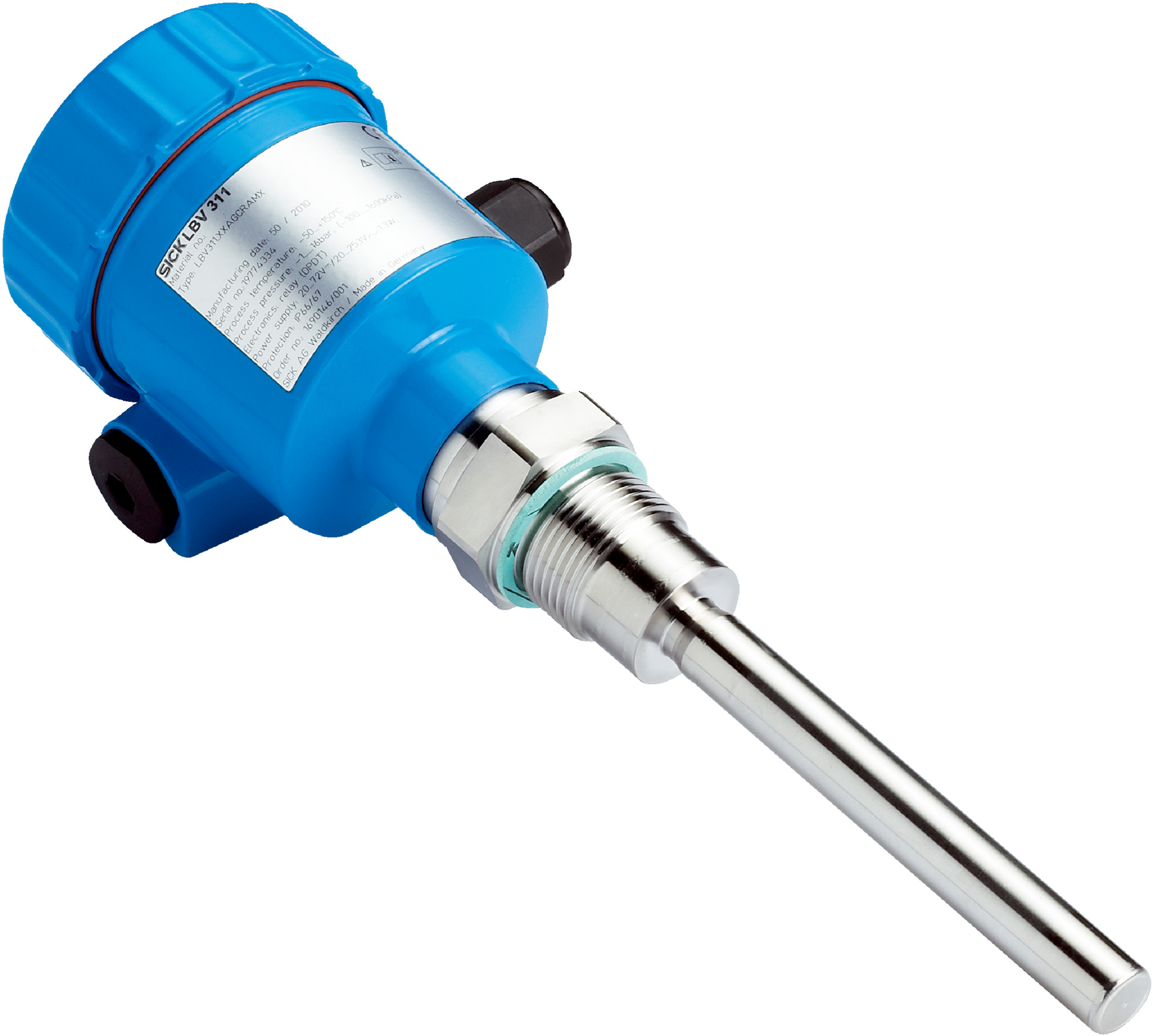

Bulk Solids Level Switch | Rod Probe Type | IP66 & IP67 Rated | ±10 mm Accuracy | by SICK
The Bulk Solids Level Switch is designed for precise level detection in industrial processes, featuring a robust rod probe type with a 160 mm length. With a wide process temperature range of -50 °C to +150 °C and an impressive accuracy of ±10 mm, this sensor is perfect for harsh environments. Its IP66 and IP67 ratings ensure durability, making it ideal for storage and processing tanks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 160 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 10 V DC to 55 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 10 mA
- Initialization time: < 2 s
- Output signal: 1 x PNP/NPN transistor output
- Hysteresis: 10 mm
- Output current: < 300 mA
- Inductive load: 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1, DIN 3852-A, PN 16 / 316L
- Housing material: Plastic
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 160mm x 160mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe type with 160 mm length
- Suitable for bulk solids with fill material density ≥ 0.02 g/cm³
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element accuracy
- Fast response time of 100 ms to 500 ms
- Volt-free transistor output PNP/NPN with output current < 300 mA
- Enclosure rated IP66 and IP67 for robust protection
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor installation and electrical safety standards.
Applications
- Bulk solids level detection in industrial processes
- Measurement and switch applications in storage and processing tanks
- Suitable for use in harsh environments with varying temperatures and pressures
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption of ≤ 10 mA supports energy-efficient operation
- Reliable operation minimizes process interruptions and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

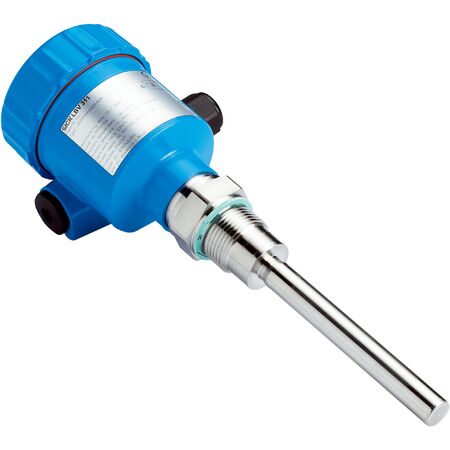

The SICK LBV311-XXCGCTKMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement and control applications.
