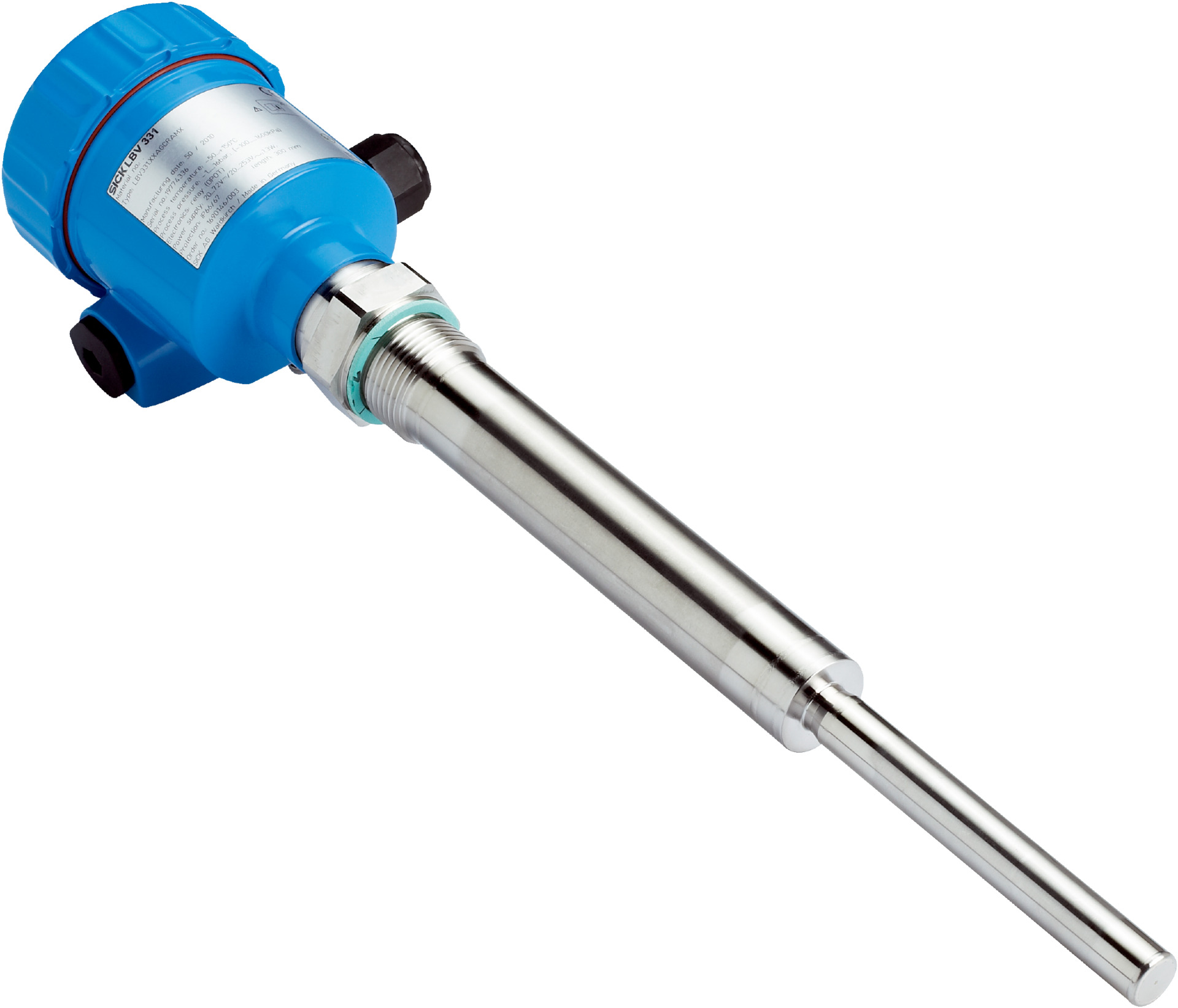

Bulk Solids Level Switch | Rod Probe Type | IP66 & IP67 Rated | -1 to 16 Bar Pressure | by SICK
The Bulk Solids Level Switch with a rod probe type is designed for precise level detection in industrial applications. With a robust stainless steel 316L construction and an impressive process temperature range of -50 °C to +150 °C, it ensures reliable performance in harsh environments. Ideal for material handling systems, this switch features a fast response time and high accuracy, making it perfect for bulk solids measurement and control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement type: Switch
- Probe type: Rod probe
- Probe length: 300 mm
- Process pressure range: -1 bar to 16 bar
- Process temperature range: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: ½" NPT
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts material: Stainless steel 1.4404 / 316L
- Process connection: G 1" NPT, ASME B1.20.1, PN 16, 316L
- Housing material: Stainless steel (investment casting) 316L
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 300mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Rod probe type suitable for bulk solids
- Measurement via switch output with double relay (DPDT)
- Robust stainless steel 316L construction for wetted parts and housing
- Wide process pressure range from -1 bar to 16 bar
- Wide process temperature range from -50 °C to +150 °C
- High enclosure rating IP66 and IP67 for dust and water protection
- Fast response time of 100 ms to 500 ms
- High accuracy with ±10 mm sensor element accuracy
- Reproducibility of ≤ 5 mm
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor installation and electrical safety standards.
Applications
- Bulk solids level detection in industrial storage and processing
- Measurement and control in material handling systems
- Use in harsh environments with varying pressure and temperature
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA
- Reliable operation reduces risk of material spillage and waste
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now

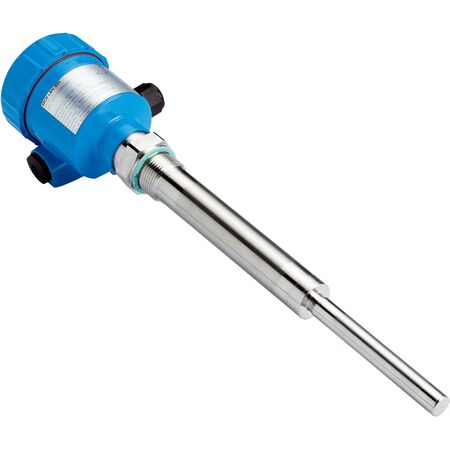

The SICK LBV331-XXANCRVNX0300 Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
