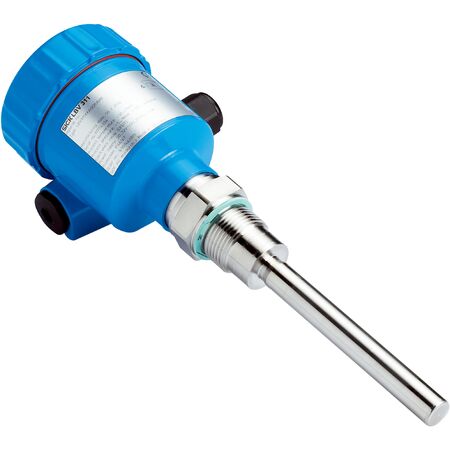

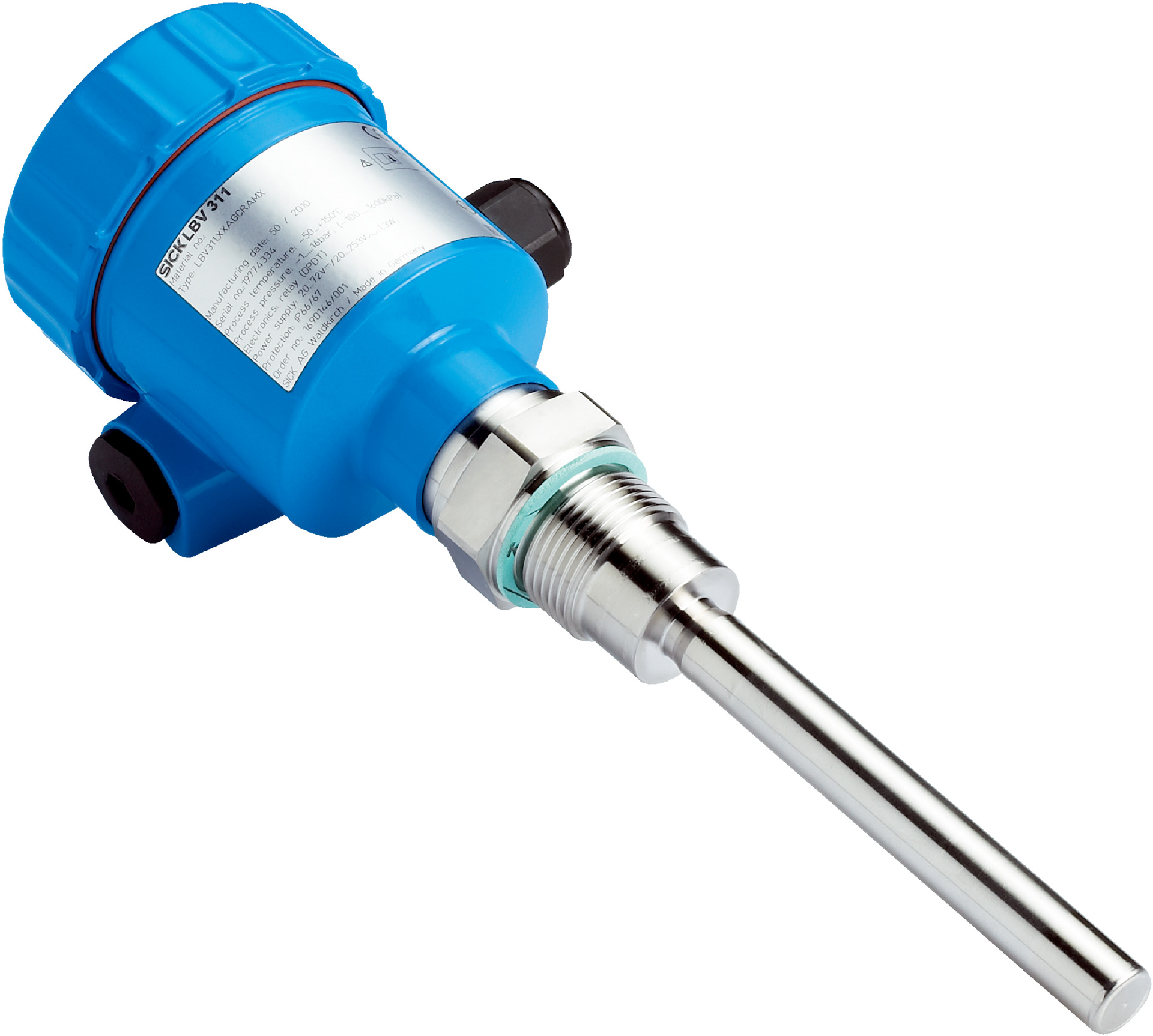

Bulk Solids Level Switch | Rod Probe Type | IP66 & IP67 Rated | -50°C to +150°C | by SICK
The Bulk Solids Level Switch is designed for precise measurement of bulk solids, featuring a 160 mm rod probe and a wide process temperature range from -50°C to +150°C. With an IP66 and IP67 enclosure rating, it ensures reliable operation in harsh environments, making it ideal for industrial applications such as storage tanks and silos.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Bulk solids
- Measurement: Switch
- Probe type: Rod probe
- Probe length: 160 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -50 °C to +150 °C
- Fill material density: ≥ 0.02 g/cm³
- Accuracy of sensor element: ± 10 mm
- Reproducibility: ≤ 5 mm
- Response time: 500 ms (standard), 100 ms (fast)
- MTBF: 4.17 million hours
- Supply voltage: 20 V DC to 72 V DC, 20 V AC to 253 V AC
- Power consumption: 5 mA to 30 mA
- Initialization time: < 2 seconds
- Connection type: M20 x 1.5
- Output signal: Double relay (DPDT)
- Hysteresis: 10 mm
- Output current: > 10 µA; < 3A AC, 1A DC
- Enclosure rating: IP66, IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1" NPT, ASME B1.20.1, PN 16, 316L
- Housing material: Aluminum
- Sensor material: Stainless steel 316L, 318S
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.5 kg
Key Features
- Rod probe type with 160 mm length for reliable bulk solids measurement
- Double relay (DPDT) output signal for versatile control options
- High process pressure tolerance from -1 bar to 16 bar
- Wide process temperature range from -50 °C to +150 °C
- Stainless steel 316L wetted parts for corrosion resistance
- Enclosure rated IP66 and IP67 for dust and water protection
- Fast response time of 100 ms to 500 ms
- VDE protection class 1 certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure safety and compliance with local regulations.
Applications
- Bulk solids level detection in industrial processes
- Measurement and monitoring of material levels in storage tanks and silos
- Suitable for use in harsh environments with varying temperatures and pressures
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption between 5 mA and 30 mA minimizes energy use
- Reliable operation reduces risk of process spills and material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LBV311-XXANCRAMX Bulk Solids Rod Probe Level Switch is available for immediate purchase, ideal for industrial bulk solids level measurement applications.
