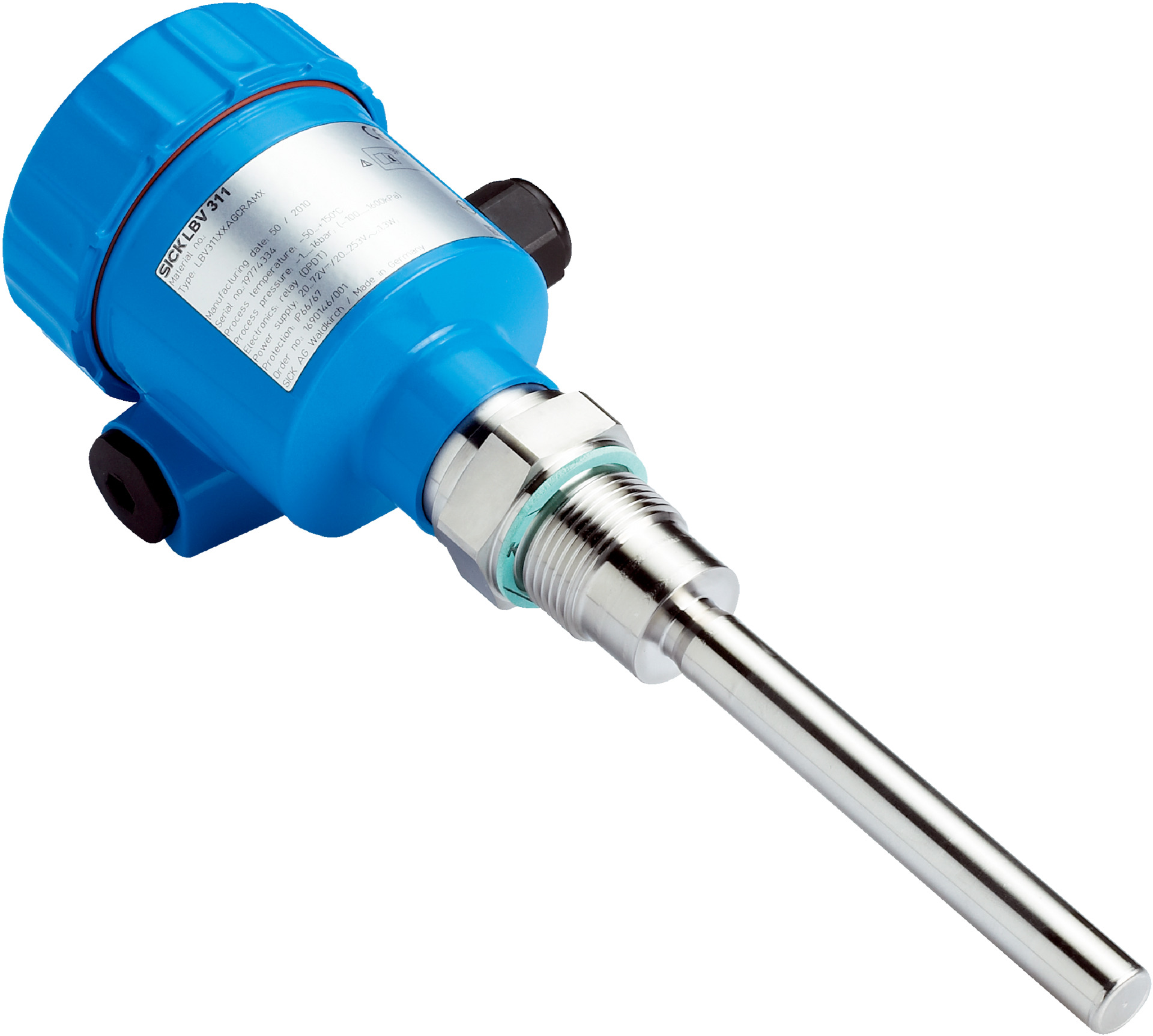

Bulk Solids Level Switch | Rod Probe Type | IP66/IP67 Rated | High Accuracy | by SICK
The Bulk Solids Level Switch is designed for reliable level detection in industrial processes, featuring a rod probe type with a 160 mm length and a wide process temperature range from -50 °C to +150 °C. With an IP66/IP67 rated enclosure and robust stainless steel construction, it ensures durability and accuracy, making it ideal for material handling and storage monitoring in manufacturing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 200mm x 160mm x 50mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 160 mm length suitable for bulk solids
- Switch measurement for reliable level detection
- Process pressure range from -1 bar to 16 bar
- Wide process temperature range from -50 °C to +150 °C
- High accuracy with ±10 mm sensor element precision
- Reproducibility of ≤ 5 mm for consistent measurements
- Fast response time of 500 ms (standard) and 100 ms (optional)
- Double relay (DPDT) output signal for versatile control
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP66 and IP67 rated enclosure for harsh environments
- VDE protection class 1 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Bulk solids level detection in industrial processes
- Material handling and storage monitoring
- Process control in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption between 5 mA and 30 mA conserves energy
- Long MTBF of approximately 4.17 million hours minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

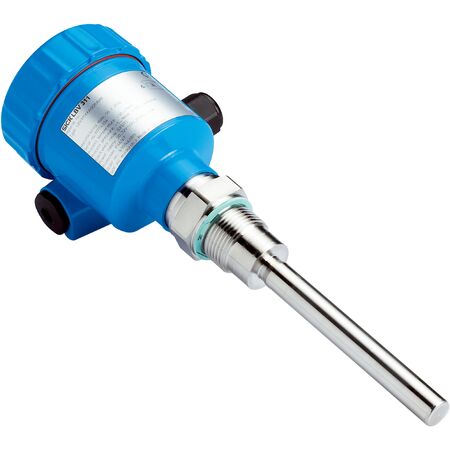

The SICK LBV311-XXCGCRKMX level switch is available for immediate purchase, ideal for industrial bulk solids level detection applications.
