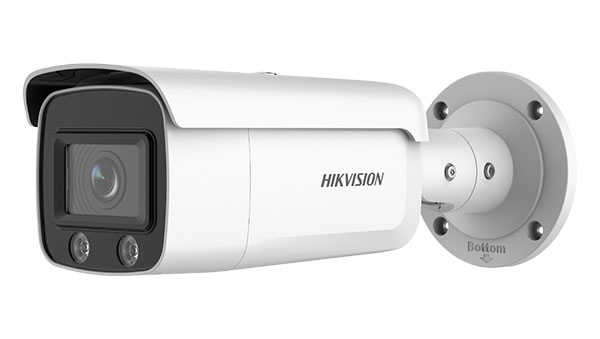

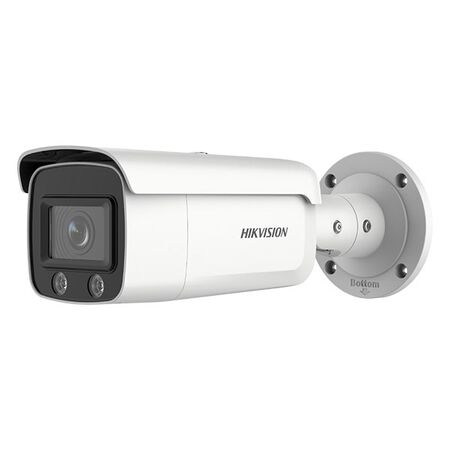

Bullet Camera 4MP ColorVu 2.8mm Hikvision
Hikvision bullet camera features 4MP resolution, ColorVu and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP ColorVu Bullet Camera, Hikvision 4MP Full-Colour IP Camera, DS-2CD2047G2-LU 2.8mm
Technical Specifications
- Image Resolution: 2688 × 1520 pixels
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Fixed 2.8mm lens
- Aperture: f/1.0
- Horizontal Field of View: 111.9°
- Minimum Illumination: 0.0005 lux at f/1.0; 0 lux with white light
- Frame Rate: Up to 25 fps at 50 Hz or 30 fps at 60 Hz
- Wide Dynamic Range: 130 dB true WDR
- Supplementary Light: White light up to 40 metres
- Video Compression: H.265, H.264, H.265+ and H.264+
- Storage: MicroSD, microSDHC or microSDXC up to 512 GB
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power: 12 VDC or PoE 802.3af, maximum 7.5 W via PoE
- Ingress Protection: IP67
- Audio: Built-in microphone and speaker
- Approvals: RCM to AS/NZS CISPR 32:2015; CE, FCC and RoHS
- Dimensions (H x L x W): 74.4mm x 179.2mm x 74.4mm
- Weight: 0.51 kg
Key Features
- 24/7 full-colour imaging using Hikvision ColorVu technology
- Large-aperture f/1.0 lens for improved low-light performance
- 4MP resolution with 130 dB wide dynamic range
- Human and vehicle target classification using deep learning
- Smart motion detection, intrusion detection and line crossing detection
- Integrated white light illumination up to 40 metres
- H.265+ compression for reduced storage and bandwidth requirements
- PoE support for combined network and power connection
- IP67-rated housing for outdoor installation
- MicroSD card recording and compatibility with Hik-Connect, iVMS-4200 and HikCentral
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications technician. Outdoor mounting, PoE cabling, network configuration and commissioning should follow the manufacturer's instructions and applicable Australian requirements, including AS/NZS 62676 and relevant customer-cabling regulations.
Applications
- Residential CCTV and perimeter monitoring
- Commercial premises and retail security
- Warehouses, workshops and industrial facilities
- Car parks, entrances and loading areas
- Outdoor security installations requiring full-colour night imaging
- Integration with Hikvision NVR, VMS and Hik-Connect systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS 62676.4:2020 for video surveillance system selection, planning, installation, commissioning, maintenance and testing
- AS/NZS CISPR 32:2015 referenced for Australian RCM electromagnetic compatibility approval
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- RoHS compliance supports restriction of specified hazardous substances in electrical and electronic equipment
- WEEE compliance supports responsible end-of-life handling and recycling of electronic equipment
- IP67 protection and solid-state construction can support a longer service life and reduce replacement waste
Warranty Information
Hikvision network cameras are commonly supplied with a 3-year manufacturer warranty through Australian authorised distribution channels, subject to the applicable purchase terms and proof of purchase. The Hikvision premium 5-year warranty applies only to listed premium project-oriented series and should not be assumed for this model.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current model and regional stock status.
