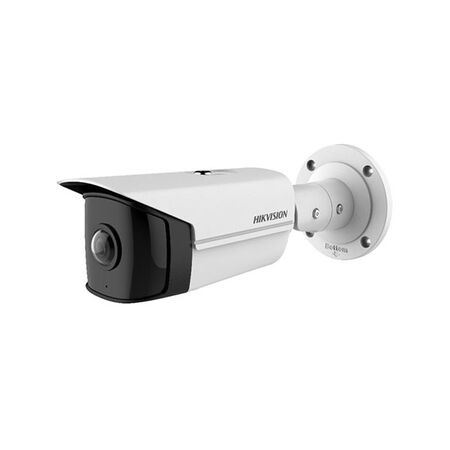

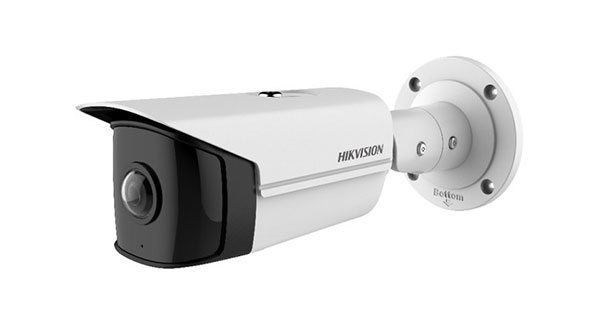

Bullet Camera 4MP Extra Wide 1.68mm Hikvision
Hikvision bullet camera features 4MP resolution and an extra wide 1.68mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP 1.68mm Bullet Camera, Hikvision Super Wide-Angle IP Camera, Hikvision DS-2CD2T45G0P-I
Technical Specifications
- Image Sensor: 1/2.7-inch progressive scan CMOS
- Maximum Resolution: 2688 × 1520 pixels at 25 fps
- Lens: 1.68mm fixed ultra-wide-angle lens
- Field of View: 180° horizontal, 101° vertical, 180° diagonal
- Minimum Illumination: 0.028 lux at F2.0; 0 lux with IR
- Wide Dynamic Range: 120dB true WDR
- Night Vision: Smart IR up to 20m
- Video Compression: H.265+, H.265, H.264+, H.264
- Local Storage: MicroSD, SDHC or SDXC up to 256GB
- Network Interface: RJ45 Ethernet with PoE
- Power Supply: 12V DC ±25% or PoE 802.3af
- Maximum Power Consumption: 7.2W via DC; 8.7W via PoE
- Housing Material: Metal
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Smart Events: Line crossing, intrusion, unattended object, object removal, face detection and scene change detection
- Manufacturer EMC Approval: RCM listed to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 105mm x 278mm x 105mm
- Weight: 0.57 kg
Key Features
- 4MP imaging for detailed security video
- 1.68mm ultra-wide lens providing 180° horizontal coverage
- Built-in lens distortion correction for wide-area monitoring
- 120dB WDR for high-contrast lighting conditions
- Smart IR illumination up to 20m
- H.265+ compression to reduce bandwidth and storage requirements
- IP67-rated housing for outdoor installations
- PoE support for combined network and power connection
- MicroSD recording support up to 256GB
- ONVIF and Hikvision platform compatibility
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Use compliant network cabling, PoE equipment and mounting hardware, with the installation completed in accordance with applicable Australian electrical, communications and CCTV requirements.
Applications
- Outdoor perimeter monitoring
- Building entrances and exits
- Car parks and driveways
- Retail and commercial premises
- Warehouses and industrial sites
- Wide-area indoor security monitoring
- CCTV systems requiring coverage with minimal blind spots
Standards & Compliance
- Manufacturer datasheet lists RCM compliance to AS/NZS CISPR 32:2015 for electromagnetic compatibility
- CCTV system design and installation should consider AS/NZS 62676.1.1:2020 and AS/NZS 62676.4:2020 where applicable
Environmental Benefits
- H.265+ compression can reduce network bandwidth and video storage requirements compared with less efficient codecs
- IP67-rated metal construction supports a longer service life in suitable outdoor environments, reducing replacement waste
- RoHS and WEEE environmental compliance are listed in the manufacturer documentation
- MicroSD and network recording options can reduce the need for additional dedicated recording hardware in smaller installations
Warranty Information
Hikvision Australia’s published five-year warranty applies to specified premium project-oriented product series and does not list this standard Pro-series camera. Australian authorised-channel listings commonly specify a three-year back-to-base warranty for Hikvision IP cameras; confirm the applicable warranty with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security and communications distributors, subject to current distributor range and stock status.
