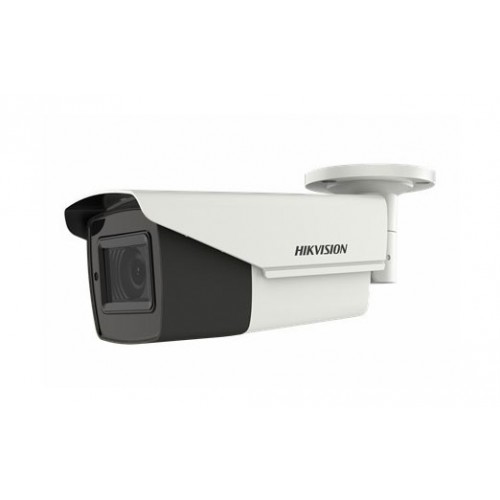

Bullet Camera 5MP TVI 2.7-13.5mm Hikvision
Hikvision TVI bullet camera features 5MP resolution and a 2.7-13.5mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision TurboHD 5MP Bullet Camera, 5MP Analogue HD Bullet Camera, DS-2CE19H8T-AIT3ZF
Technical Specifications
- Image Sensor: 5MP CMOS
- Maximum Resolution: 2560 × 1944 pixels
- Lens: 2.7-13.5mm motorised varifocal lens
- Horizontal Field of View: 92.3° to 29.3°
- Video Formats: TVI, AHD, CVI and CVBS
- TVI Frame Rate: 5MP at 20fps
- Infrared Range: Up to 80m
- Wide Dynamic Range: ≥130dB WDR
- Noise Reduction: 3D DNR
- Power Supply: 9.6-14.4VDC or 19.2-28.8VAC
- Maximum Power Consumption: 10.5W
- Housing Material: Metal
- Ingress Protection: IP67
- Operating Temperature: -40°C to 60°C
- Dimensions (H x L x W): 84.5mm x 255.1mm x 92mm
- Weight: 0.93 kg
Key Features
- 5MP high-definition analogue video output
- Motorised 2.7-13.5mm varifocal lens for adjustable scene coverage
- Switchable TVI, AHD, CVI and CVBS output
- EXIR infrared illumination up to 80m
- 130dB wide dynamic range for challenging lighting conditions
- Smart IR to help limit foreground overexposure
- Day/night operation with IR cut filter
- IP67-rated housing for outdoor installations
- Up-the-coax HIKVISION-C communication
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or cabling technician. Configure and commission the camera as part of a video surveillance system in accordance with applicable Australian requirements, including AS/NZS 62676 and relevant customer-cabling rules.
Applications
- Outdoor CCTV installations
- Building entrances and perimeter monitoring
- Commercial premises and warehouses
- Car parks and driveways
- Retail, industrial and residential security systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance system general requirements
- AS/NZS 62676.1.2:2020 – Video transmission performance requirements
- AS/NZS 62676.3:2020 – Analogue and digital video interfaces
- AS/NZS 62676.4:2020 – Video surveillance application guidelines
- AS/NZS 62676.5:2020 – Data specifications and image quality performance for camera devices
Environmental Benefits
- Durable metal housing and IP67 protection can extend service life and reduce replacement waste
- LED infrared illumination supports low-light monitoring without continuous visible lighting
- Suitable for integration into energy-managed CCTV systems using low-voltage DC or AC power
- Metal components are generally recyclable at end of life through appropriate electronic-waste channels
Warranty Information
A 3-year back-to-base manufacturer warranty is commonly offered for Hikvision CCTV cameras through Australian distributors; confirm the applicable warranty and product eligibility with the authorised seller.
Available Now
Available through Hikvision and authorised Australian security-system distributors.
