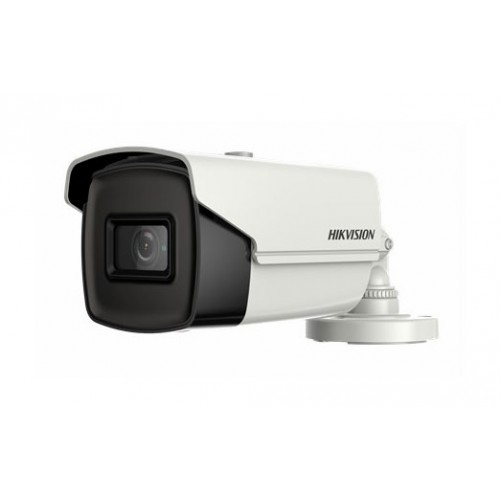

Bullet Camera 5MP TVI 60m IR 2.8mm Hikvision
Hikvision TVI bullet camera features 5MP resolution, 60m IR and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 5MP Turbo HD Bullet Camera, Hikvision 5MP CCTV Bullet Camera, DS-2CE16H8T-IT3F(2.8mm)
Technical Specifications
- Image Sensor: 5 megapixel progressive scan CMOS
- Maximum Resolution: 2560 x 1944 pixels
- Lens: 2.8mm fixed lens, M12 mount
- Horizontal Field of View: 98°
- Video Output: Switchable TVI, AHD, CVI and CVBS
- Frame Rate: 5MP at 20fps in TVI mode
- Minimum Illumination: 0.003 lux colour, 0 lux with IR
- Infrared Range: Up to 60m with EXIR 2.0 Smart IR
- Wide Dynamic Range: 130dB true WDR
- Noise Reduction: 3D DNR
- Power Supply: 12V DC ±25%
- Maximum Power Consumption: 5.8W
- Ingress Protection: IP67
- Operating Temperature: -40°C to 60°C
- Housing Material: Metal
- Communication: HIKVISION-C up-the-coax
- Dimensions (H x L x W): 86.7mm x 217.9mm x 81.9mm
- Weight: 0.57 kg
Key Features
- 5MP high-definition analogue surveillance imaging
- 2.8mm fixed lens providing a wide 98° horizontal field of view
- Up to 60m infrared night vision using EXIR 2.0 illumination
- 130dB true WDR for challenging backlit scenes
- 4-in-1 selectable TVI, AHD, CVI and CVBS output
- 3D digital noise reduction and Smart IR image processing
- IP67-rated housing for outdoor CCTV installations
- Adjustable pan, tilt and rotation bracket
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or CCTV installer. The camera uses extra-low-voltage 12V DC power, and installation should follow applicable state or territory licensing requirements and AS/NZS 62676 guidance.
Applications
- Residential CCTV systems
- Commercial and retail security surveillance
- Industrial and warehouse monitoring
- Outdoor perimeter surveillance
- Replacement or upgrade of compatible TVI, AHD, CVI or CVBS cameras
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for security applications, general system requirements
- AS/NZS 62676.4:2020 - Video surveillance systems for security applications, application guidelines
Environmental Benefits
- Low maximum power consumption of 5.8W supports reduced operating energy use
- IP67 weather protection and metal construction can extend service life and reduce replacement waste
- Designed for compatibility with multiple analogue video standards, supporting system upgrades without necessarily replacing existing cabling
Warranty Information
Hikvision Australia and New Zealand's RMA policy lists analogue cameras with a default 36-month manufacturer warranty, subject to authorised distribution, purchase documentation and policy conditions. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors.
