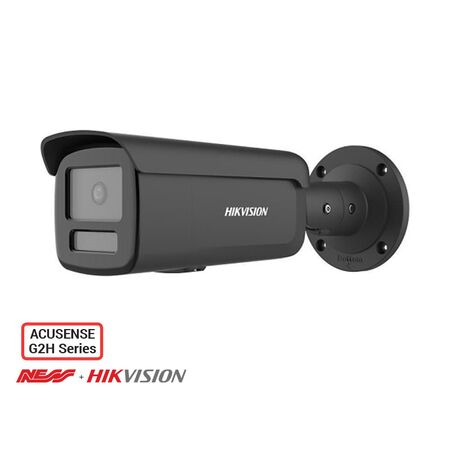

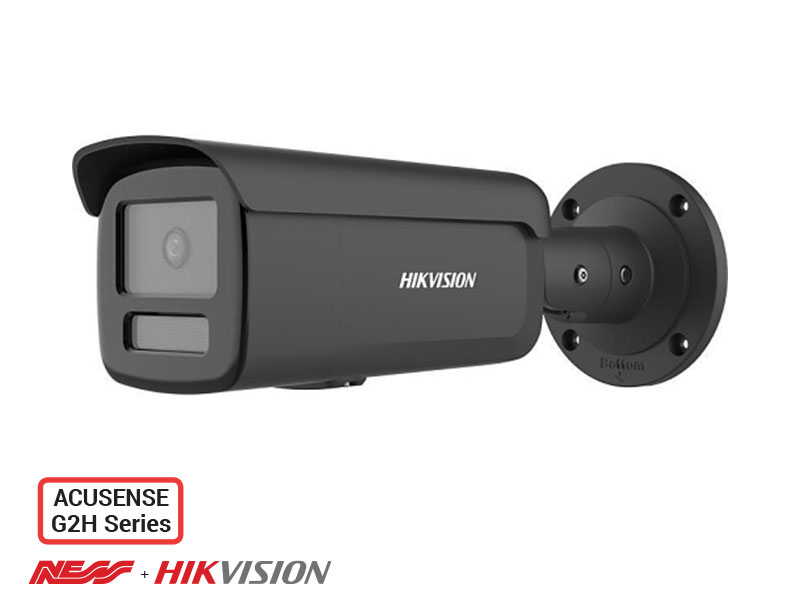

Bullet Camera 6MP 60m IR 2.8mm Black Hikvision
Hikvision bullet camera features 6MP resolution, a 2.8mm lens, 60m IR range and a black finish. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP IR Bullet Camera, Hikvision AcuSense Bullet Camera, DS-2CD2T66G2H-2I 2.8mm
Technical Specifications
- Model: DS-2CD2T66G2H-2I
- Resolution: 6MP, 3200 × 1800
- Image Sensor: 1/2.4 inch progressive scan CMOS
- Lens: Fixed 2.8mm M12 lens, F1.0 aperture
- Field of View: Horizontal 114.8°, vertical 60°, diagonal 143.5°
- Infrared Range: Up to 60m
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Wide Dynamic Range: 120dB WDR
- Low-Light Performance: 0.001 lux colour; 0 lux black and white with IR
- Power Supply: 12V DC or PoE IEEE 802.3af, Class 3
- Power Consumption: Maximum 10W via PoE
- Protection Rating: IP67
- Housing Material: Metal front cover, body and bracket
- Operating Temperature: -30°C to 60°C
- Storage: Built-in microSD card support
- Finish: Black
- Dimensions (H x L x W): 91.2mm x 286.7mm x 93.3mm
- Weight: 1.12 kg
Key Features
- 6MP image resolution for detailed CCTV monitoring
- Fixed 2.8mm wide-angle lens for broad scene coverage
- Up to 60m infrared illumination for night-time surveillance
- Powered-by-DarkFighter technology for improved low-light imaging
- AcuSense deep-learning classification for human and vehicle targets
- 120dB WDR for scenes with strong backlighting
- H.265+ compression to reduce bandwidth and storage requirements
- PoE support enables power and data over a single Ethernet cable
- IP67-rated housing for outdoor dust and water protection
- Supports 12V DC power as an alternative to PoE
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Outdoor mounting, Ethernet termination, PoE equipment and any fixed electrical connections should be completed in accordance with manufacturer instructions, applicable state or territory requirements and relevant Australian standards.
Applications
- Residential security surveillance
- Commercial and industrial perimeter monitoring
- Building entrances, driveways and loading areas
- Retail, warehouse and car park monitoring
- Outdoor CCTV systems requiring wide-angle coverage and infrared night vision
Standards & Compliance
- Manufacturer EMC approval includes RCM compliance to AS/NZS CISPR 32:2015
- CCTV system design and deployment should consider AS/NZS 62676.1.1:2020 for video surveillance systems
- Installation work should follow applicable state or territory requirements and relevant provisions of AS/NZS 3000 where fixed electrical wiring is involved
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage demand compared with less efficient codecs
- RoHS compliance supports restriction of specified hazardous substances in the product
- Metal housing materials are potentially recyclable at end of service life
- IP67 protection and robust construction can help extend service life and reduce replacement waste
Warranty Information
36-month Hikvision manufacturer warranty for applicable 6-series IP network cameras, subject to purchase through an authorised channel and the manufacturer's warranty terms.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
