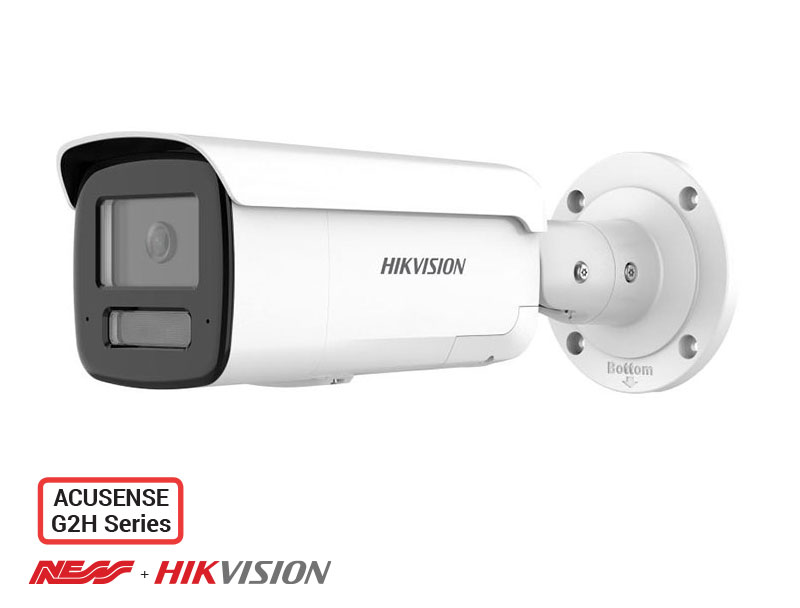

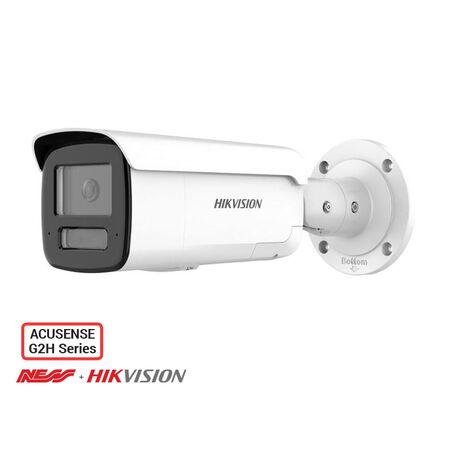

Bullet Camera 6MP 60m IR 2.8mm Hikvision
Hikvision bullet camera features 6MP resolution, a 2.8mm lens and 60m IR range. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP AcuSense Bullet Camera, Hikvision DarkFighter Bullet CCTV Camera, 6MP IP Bullet Camera
Technical Specifications
- Model: DS-2CD2T66G2H-2I
- Image Resolution: 3200 × 1800 pixels, 6MP
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: Fixed 2.8mm lens, M12 mount
- Field of View: Horizontal 114.8°, vertical 60°, diagonal 143.5°
- Minimum Illumination: 0.001 Lux in colour mode; 0 Lux with IR
- Infrared Range: Up to 60m, 850nm IR
- Dynamic Range: 120dB WDR
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Frame Rate: Up to 20fps at 3200 × 1800
- Power Supply: 12V DC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 10W via PoE
- Network Storage: NAS support and microSD card support
- Ingress Protection: IP67
- Housing Material: Metal front cover, body and bracket
- Dimensions (H x L x W): 91.2mm x 286.7mm x 93.3mm
- Weight: 1.12 kg
Key Features
- 6MP high-resolution video capture
- Fixed 2.8mm wide-angle lens for broad area coverage
- Up to 60m infrared night vision
- Powered-by-DarkFighter low-light imaging
- AcuSense deep-learning classification of people and vehicles
- 120dB wide dynamic range for backlit scenes
- H.265+ compression to reduce bandwidth and storage requirements
- PoE support for combined power and data over one network cable
- IP67 protection against dust and water ingress
- Smart supplementary IR lighting and day/night IR-cut filter
Professional Installation Requirements
- Installation should be performed by a suitably qualified security technician. Network cabling, PoE equipment, camera mounting and weatherproof cable entry must be installed correctly; any mains-powered network equipment or power supply must be connected in accordance with applicable electrical regulations by a licensed electrician.
Applications
- Outdoor CCTV surveillance
- Commercial and industrial security systems
- Residential perimeter monitoring
- Building entrances, driveways and car parks
- Warehouses, retail premises and loading areas
- Gate, fence-line and access-road monitoring
Standards & Compliance
- Manufacturer datasheet lists RCM EMC approval to AS/NZS CISPR 32:2015
- AS/NZS 62676.1.1:2020 is the applicable Australian/New Zealand CCTV system requirements standard
- AS/NZS 62676.5:2020 provides applicable image-quality performance specifications for video surveillance camera devices
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS and WEEE environmental compliance is listed in the manufacturer documentation
- IP67-rated metal construction supports extended service life and can reduce replacement waste
- PoE operation allows power and data to share one network cable, potentially reducing installation materials
Warranty Information
Hikvision Australia provides warranty support under its RMA policy. The published five-year programme applies to specified premium project-oriented series and does not identify this standard Pro Series camera; confirm the applicable warranty period with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
