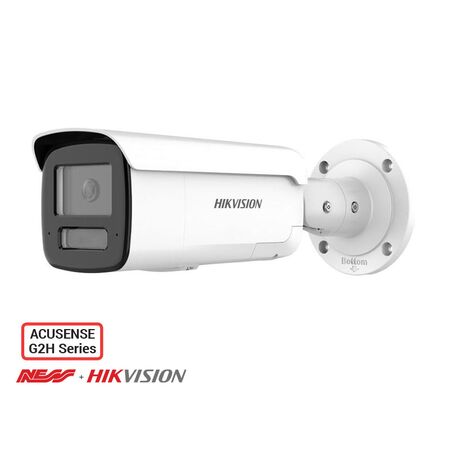

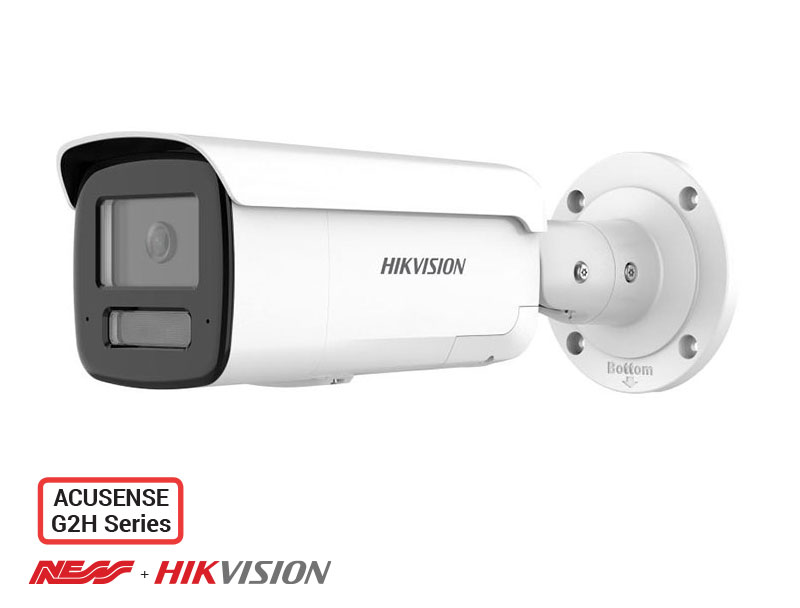

Bullet Camera 6MP 60m IR 4mm Hikvision
Hikvision bullet camera features 6MP resolution, a 4mm lens and 60m IR range. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP IR Bullet Camera, Hikvision AcuSense Bullet CCTV Camera, DS-2CD2T66G2-2I 4mm
Technical Specifications
- Model: DS-2CD2T66G2-2I(C)(4mm)
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Maximum Resolution: 3200 × 1800 pixels at up to 25 fps
- Lens: 4mm fixed focal lens
- Horizontal Field of View: Approximately 78°
- IR Range: Up to 60m
- Video Compression: H.265+, H.265, H.264+ and H.264
- Wide Dynamic Range: 120dB WDR
- Power: 12VDC or PoE IEEE 802.3af
- Maximum Power Consumption: Up to 9W
- Network Interface: 10/100M self-adaptive Ethernet
- Ingress Protection: IP67
- Storage: MicroSD/SDHC/SDXC card support up to 256GB
- Operating Temperature: -30°C to 60°C
- Body Material: Aluminium alloy
- Compliance Markings: RCM to AS/NZS CISPR 32:2015; IP67 to IEC 60529:2013
- Dimensions (H x L x W): 105mm x 290mm x 105mm
- Weight: 1.085 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- 4mm fixed lens suited to medium-distance viewing areas
- Up to 60m infrared night vision
- AcuSense human and vehicle classification
- 120dB wide dynamic range for challenging backlit scenes
- H.265+ compression to reduce storage and bandwidth requirements
- PoE support for combined network and power connection
- IP67 weather and dust protection
- Supports line-crossing, intrusion, zone entry and zone exit detection
- Supports triple-stream video output
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or low-voltage installer. Outdoor mounting, network cabling, PoE equipment and commissioning should follow the applicable AS/NZS 62676 series requirements and local electrical and cabling regulations.
Applications
- Outdoor CCTV security systems
- Commercial and industrial premises
- Warehouses, workshops and loading areas
- Perimeter and access-point monitoring
- Retail, office and residential surveillance installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance system requirements for security applications
- AS/NZS 62676.4:2020 – Video surveillance system application guidelines
- AS/NZS CISPR 32:2015 – Electromagnetic compatibility for multimedia equipment, as listed for the camera’s RCM approval
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with older compression formats
- IP67-rated construction helps protect the camera from dust and water ingress, supporting a longer service life in suitable outdoor installations
- RoHS and WEEE environmental compliance declarations are listed for the product family
- Aluminium alloy construction is recyclable at end of service life
Warranty Information
Covered by Hikvision Australia’s applicable manufacturer warranty, subject to purchase channel and regional terms. Hikvision’s published five-year premium project warranty applies only to listed premium product series and does not specifically identify this camera model.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current model lifecycle and distributor stock.
