Trade Discount 25%

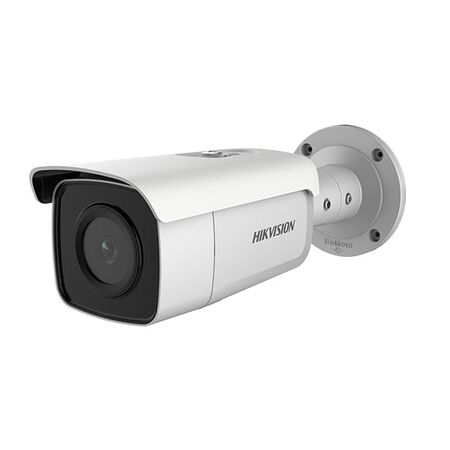

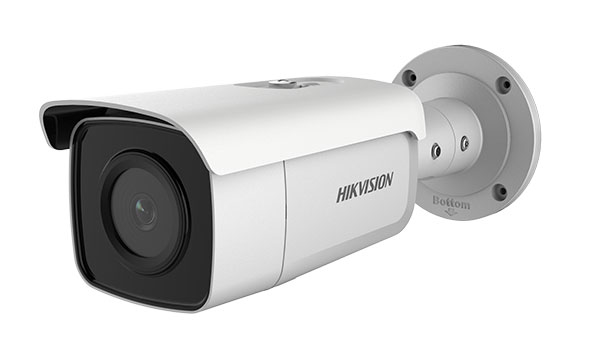

Bullet Camera 6MP 6mm Hikvision
Hikvision bullet camera features 6MP resolution and a 6mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP CCTV Bullet Camera, Hikvision AcuSense Fixed Bullet Camera, DS-2CD2063G2-I 6mm, DS-2CD2063G2-IU 6mm
Technical Specifications
- Resolution: 6MP, up to 3200 × 1800
- Lens: Fixed 6mm focal length
- Field of View: Approximately 51° horizontal, 26° vertical and 59° diagonal
- Image Sensor: Progressive-scan CMOS sensor
- Night Vision: Smart IR, up to 40 m
- Video Compression: H.265, H.265+, H.264 and H.264+
- Frame Rate: Up to 25 fps at 3200 × 1800 in 50 Hz mode
- Network Interface: 10/100 Mbps self-adaptive Ethernet
- Power: 12 VDC or IEEE 802.3af PoE
- Maximum Power Consumption: 6 W via DC or 7.2 W via PoE
- Ingress Protection: IP67 weather-resistant housing
- DORI at 6mm: Detect 164 m, observe 65 m, recognise 32 m, identify 16 m
- Construction: Aluminium alloy body with plastic IR cover
- Camera Dimensions: Ø70 × 161.7 mm
- Camera Weight: Approximately 0.485 kg
- Dimensions (H x L x W): 70mm x 161.7mm x 70mm
- Weight: 0.485 kg
Key Features
- 6MP image resolution for detailed CCTV surveillance
- 6mm fixed lens suited to longer-distance viewing than wide-angle variants
- Smart IR illumination with up to 40 m night vision
- H.265/H.265+ compression to reduce bandwidth and storage requirements
- Human and vehicle target classification through AcuSense analytics
- Motion detection, line crossing and intrusion detection
- IP67-rated housing for outdoor installations
- 12 VDC and PoE power options
- Built-in microSD card support on applicable I/U variant
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications technician. Cable termination, power connection and mounting must follow the manufacturer's instructions, applicable state or territory requirements, and the AS/NZS 62676 series for video surveillance systems.
Applications
- Residential CCTV security systems
- Commercial and retail premises surveillance
- Warehouses, workshops and industrial sites
- Outdoor perimeter monitoring
- Longer-distance identification where a 6mm lens is suitable
Standards & Compliance
- Applicable CCTV system standard: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- Installation work should also consider relevant NCC, WHS and state or territory licensing requirements
Environmental Benefits
- H.265 and H.265+ video compression can reduce network bandwidth and recording-storage requirements
- PoE support can reduce separate power cabling and simplify low-voltage system installation
- Aluminium construction and an IP67-rated enclosure support extended service life, reducing replacement waste
- Low maximum power consumption of approximately 6 W via DC input supports efficient operation
Warranty Information
Hikvision's standard warranty policy lists a 36-month warranty for network cameras. The manufacturer's separate five-year programme applies only to specified premium project-oriented product series, so eligibility should be confirmed for the supplied model and channel. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/rma/Hikvision-RMA-Policy.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to model and regional stock availability.
