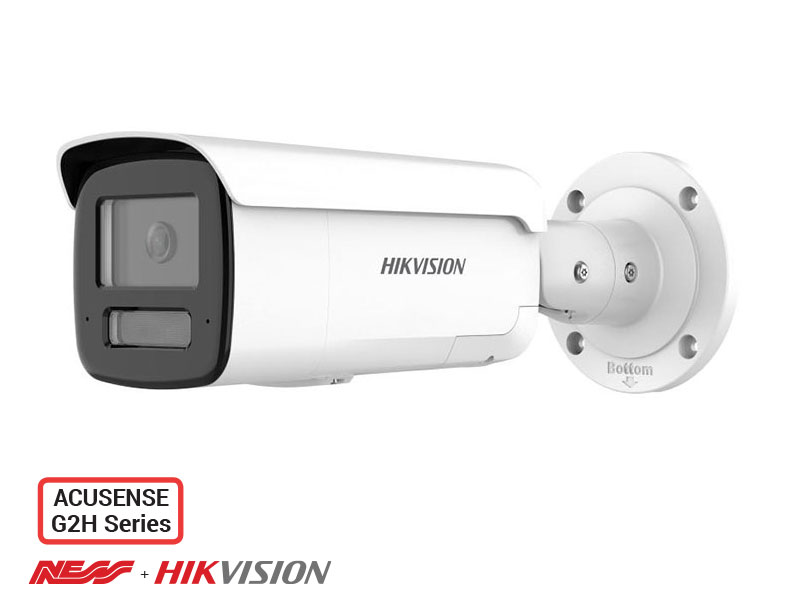

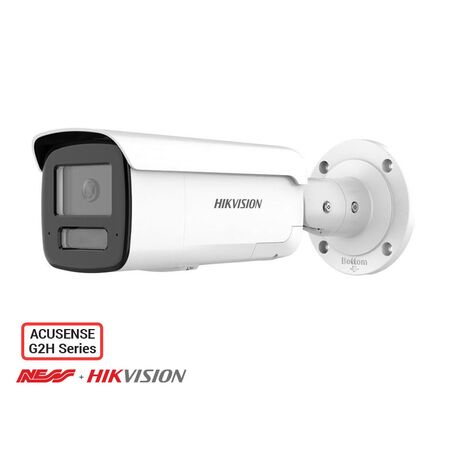

Bullet Camera 8MP 60m IR 4mm Hikvision
Hikvision bullet camera features 8MP resolution, a 4mm lens and 60m IR range. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP 4K Bullet Camera, Hikvision AcuSense Bullet Camera, Hikvision 60m IR Bullet CCTV Camera
Technical Specifications
- Model: DS-2CD2T86G2H-2I (4mm)
- Resolution: 8MP, 3840 x 2160
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Fixed 4mm lens, F1.0 aperture
- Field of View: 90.0° horizontal, 45.8° vertical, 109.4° diagonal
- Infrared Range: Up to 60m, 850nm IR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Wide Dynamic Range: 120dB WDR
- Analytics: AcuSense human and vehicle classification
- Storage: microSD, SDHC or SDXC up to 512GB
- Network: 10/100 Mbps Ethernet with ONVIF support
- Power: IEEE 802.3af PoE or 12V DC
- Power Consumption: Maximum 9W via PoE
- Ingress Protection: IP67 to IEC 60529:2013
- Operating Temperature: -30°C to 60°C
- Australian EMC Reference: AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 91.2mm x 286.7mm x 93.3mm
- Weight: 1.18 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 4mm fixed lens suited to longer viewing distances than a wide-angle 2.8mm lens
- Up to 60m smart infrared illumination for low-light and night-time monitoring
- AcuSense classification helps distinguish people and vehicles from non-target movement
- 120dB WDR improves image detail in scenes with strong backlighting
- PoE connectivity simplifies installation through a single network cable
- IP67-rated metal housing for indoor and outdoor use
- Supports edge recording to microSD cards up to 512GB
Professional Installation Requirements
- Installation should be completed by a suitably qualified security installer. PoE network cabling, DC power supplies and any mains-connected equipment must be installed in accordance with applicable Australian requirements and manufacturer instructions.
Applications
- Outdoor building perimeter surveillance
- Driveways, entry points and car parks
- Warehouses, workshops and commercial premises
- Retail, industrial and commercial CCTV systems
- Longer-distance monitoring where a 4mm field of view is preferred
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable general requirements for video surveillance systems used in security applications
- AS/NZS 62676.4:2020 — applicable CCTV system application and installation guidance; verify current project requirements
- AS/NZS CISPR 32:2015 — EMC reference stated in the manufacturer datasheet
Environmental Benefits
- H.265+ video compression can reduce bandwidth and storage requirements compared with older compression formats
- RoHS and WEEE environmental references are stated in the manufacturer datasheet
- IP67 protection and a metal housing support extended service life in suitable outdoor environments
- PoE operation reduces the need for separate power cabling at the camera location
- microSD edge recording can reduce reliance on continuous central recording infrastructure
Warranty Information
Australian Hikvision distributors commonly provide a 3-year back-to-base warranty for Hikvision cameras; confirm the applicable warranty and authorised-distributor status at purchase. Hikvision's separate 5-year programme applies only to listed premium project-oriented product series. ([securitywholesalers.com.au](https://www.securitywholesalers.com.au/faqs/warranties-cctv-products/?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional stock and model availability.
