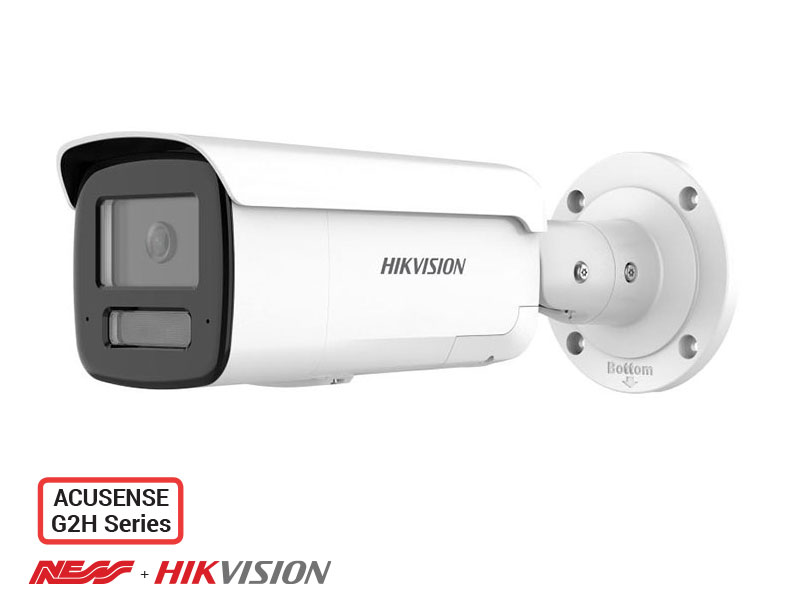

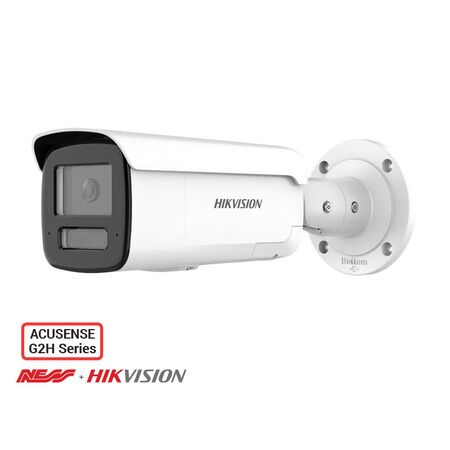

Bullet Camera 8MP 80m IR 4mm Hikvision
Hikvision bullet camera features 8MP resolution, a 4mm lens and 80m IR range. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP AcuSense Bullet Camera, Hikvision DarkFighter Bullet Camera, DS-2CD2T86G2-4I 4mm CCTV Camera
Technical Specifications
- Image Resolution: 3840 x 2160, 8MP
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Fixed 4mm focal length, M12 mount
- Field of View: 87° horizontal, 47° vertical, 102° diagonal
- Infrared Range: Up to 80m
- IR Wavelength: 850nm
- Wide Dynamic Range: 120dB true WDR
- Minimum Illumination: 0.003 lux colour; 0 lux with IR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25fps at 3840 x 2160 in 50Hz mode
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Power Supply: 12VDC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 10.5W via 12VDC or 12W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Protocols and Integration: ONVIF Profile S, Profile G and Profile T; ISAPI; SDK
- Material: Metal
- Approvals and Environmental Compliance: RCM AS/NZS CISPR 32:2015, IP67 to IEC 60529, CE-RoHS and WEEE
- Dimensions (H x L x W): 105mm x 290mm x 105mm
- Weight: 1.27 kg
Key Features
- 8MP image resolution for detailed surveillance footage
- Fixed 4mm lens suited to medium-distance viewing areas
- Up to 80m infrared illumination for night-time monitoring
- AcuSense human and vehicle target classification
- DarkFighter low-light imaging technology
- 120dB true WDR for scenes with strong backlighting
- H.265+ compression to reduce bandwidth and storage requirements
- Motion, line-crossing, intrusion, region entry and region exit detection
- Supports local microSD recording and network storage
- PoE connectivity simplifies low-voltage installation
- IP67-rated housing for outdoor use
- Three-axis bracket adjustment for flexible positioning
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Configure the camera, PoE or 12VDC supply, network cabling and recording system in accordance with manufacturer instructions and applicable Australian electrical, communications and video surveillance requirements.
Applications
- Commercial and industrial CCTV systems
- Perimeter and fence-line surveillance
- Car parks, driveways and loading areas
- Building entrances and service areas
- Warehouses, workshops and retail premises
- Human and vehicle detection in outdoor security installations
Standards & Compliance
- RCM EMC compliance to AS/NZS CISPR 32:2015 as stated in the Hikvision datasheet
- AS/NZS 62676.1.1:2020 is applicable to video surveillance system requirements for security applications
- AS/NZS 62676.4:2020 provides applicable guidance for CCTV/VSS selection, planning, installation, commissioning and maintenance
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with conventional H.264 encoding
- PoE operation reduces the need for separate power cabling and can simplify installation material use
- Metal housing and IP67 protection support extended service life in suitable outdoor environments, reducing replacement waste
- RoHS and WEEE compliance support restricted-substance control and end-of-life electronic equipment management
Warranty Information
Hikvision Australia standard warranty information indicates a 36-month warranty period for applicable camera products, subject to the exact model, authorised supply channel and current Hikvision Australia warranty terms. Premium project-oriented series may qualify for a longer five-year warranty; confirm eligibility before sale.
Available Now
Available through Hikvision and authorised Australian security and electrical distributors, subject to distributor stock.
