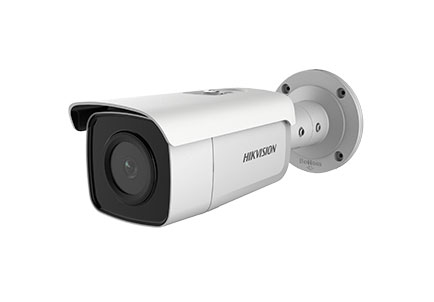

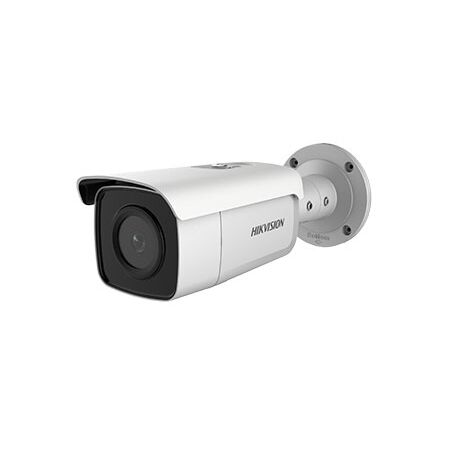

Bullet Camera 8MP AcuSense 80m IR 4mm Hikvision
Hikvision bullet camera features 8MP resolution, AcuSense, 80m IR and a 4mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP AcuSense Bullet IP Camera, Hikvision DarkFighter Bullet Camera, DS-2CD2T86G2H-4I(4mm)(eF)
Technical Specifications
- Image Resolution: 8 MP, 3840 × 2160
- Image Sensor: 1/1.8-inch progressive-scan CMOS
- Lens: Fixed 4mm lens, F1.0 aperture
- Infrared Range: Up to 80m
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25fps at 3840 × 2160
- Wide Dynamic Range: 120dB WDR
- Network Interface: RJ-45 10/100 Mbps
- Power Supply: 12V DC or PoE 802.3af
- Maximum Power Consumption: Approximately 12.5W via PoE
- Storage: MicroSD card support up to 512GB
- Operating Temperature: -30°C to 60°C
- Ingress Protection: IP67
- Smart Detection: AcuSense human and vehicle classification
- Housing: Metal, outdoor-rated bullet enclosure
- Dimensions (H x L x W): 91.2mm x 286.7mm x 93.3mm
- Weight: 1.18 kg
Key Features
- 8MP 4K image resolution
- AcuSense human and vehicle target classification
- DarkFighter low-light imaging technology
- 80m infrared night vision range
- Fixed 4mm lens for focused scene coverage
- 120dB WDR for high-contrast lighting conditions
- H.265+ compression for reduced bandwidth and storage requirements
- PoE support for combined network and power connection
- MicroSD recording and network video recorder compatibility
- IP67 weather and dust protection
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Configure the camera, network connection, PoE supply, recording system and cybersecurity settings in accordance with the manufacturer's instructions and applicable electrical and communications requirements.
Applications
- Outdoor commercial CCTV installations
- Industrial sites, warehouses and loading areas
- Car parks and perimeter security
- Retail, office and educational premises
- Residential driveways and property entrances
- Security systems requiring human and vehicle analytics
Standards & Compliance
- AS/NZS 62368.1:2022 or AS/NZS 62368.1:2026 may apply to the camera's audio/video and information-technology equipment safety requirements; verify the specific Australian declaration of conformity for the supplied model
- Manufacturer datasheet references IEC/EN 62368-1 safety requirements and IP67 protection to IEC 60529
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and storage energy requirements compared with less efficient codecs
- PoE reduces the need for separate power cabling and associated installation materials
- RoHS and WEEE references support restricted hazardous substances and responsible end-of-life handling
- Metal housing and IP67 protection support extended service life in outdoor installations, reducing replacement waste
Warranty Information
Hikvision network cameras supplied through authorised Australian channels are commonly covered by a 3-year back-to-base manufacturer warranty; confirm the applicable warranty with the distributor. Hikvision's separate 5-year project warranty applies only to listed premium project-oriented series and should not be assumed for this model.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to model and regional stock.
