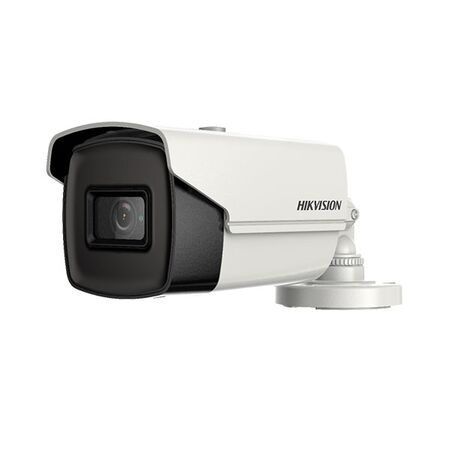

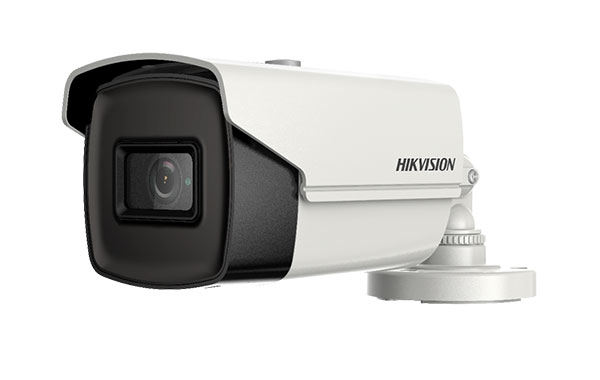

Bullet Camera 8MP TVI LowLight 2.8mm Hikvision
Hikvision TVI bullet camera features 8MP resolution, low light performance and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP TVI Bullet Camera, Hikvision Turbo HD Bullet Camera, DS-2CE16U0T-ITF(2.8mm)
Technical Specifications
- Image Sensor: 8.29 MP CMOS
- Resolution: 3840 × 2160 pixels
- Video Format: Switchable TVI, AHD, CVI and CVBS
- TVI Frame Rate: 8MP at 12.5fps or 15fps
- Minimum Illumination: 0.01 lux at F1.6 with AGC; 0 lux with IR
- Lens: 2.8mm fixed lens, M12 mount
- Horizontal Field of View: 102.9°
- Day/Night: ICR with automatic, colour and black-and-white modes
- Wide Dynamic Range: Digital WDR
- Backlight Functions: BLC and HLC
- IR Range: Up to 30m
- Power Supply: 12V DC ±25%
- Maximum Power Consumption: 2.9W
- Ingress Protection: IP67
- Housing Material: Metal
- Operating Temperature: -40°C to 60°C
- Communication: HIKVISION-C
- Dimensions (H x L x W): 58mm x 158.6mm x 61mm
- Weight: 0.33 kg
Key Features
- 8MP ultra-high-definition imaging for detailed CCTV surveillance
- 2.8mm fixed lens provides a wide 102.9° horizontal field of view
- Low-light performance with 0.01 lux minimum illumination
- Integrated infrared illumination with a range of up to 30m
- Digital WDR, backlight compensation and highlight compensation
- Supports TVI, AHD, CVI and CVBS video outputs
- IP67-rated metal housing for outdoor installation
- Adjustable pan, tilt and rotation positioning
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security installer. The camera requires a regulated 12V DC supply and appropriate video cabling, termination and weatherproofing for outdoor installations.
Applications
- Residential CCTV systems
- Commercial and retail security installations
- Warehouses, workshops and industrial premises
- Building entrances, driveways and perimeter monitoring
- Outdoor surveillance systems using compatible Turbo HD DVRs
Standards & Compliance
- Applicable CCTV performance reference: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- Applicable CCTV system application guidance: AS/NZS 62676.4:2020; verify project-specific installation and compliance requirements
- Electrical equipment compliance, including any applicable RCM or EESS obligations, should be confirmed for the complete camera and power-supply arrangement
Environmental Benefits
- Low maximum power consumption of 2.9W helps reduce operating energy use
- Metal housing is recyclable at end of product life where appropriate recycling facilities are available
- IP67 protection and durable construction can extend service life and reduce replacement waste
Warranty Information
Warranty is provided under Hikvision Australia’s applicable product warranty and authorised-distributor terms. Confirm the warranty period and conditions with the supplying distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security equipment distributors.
