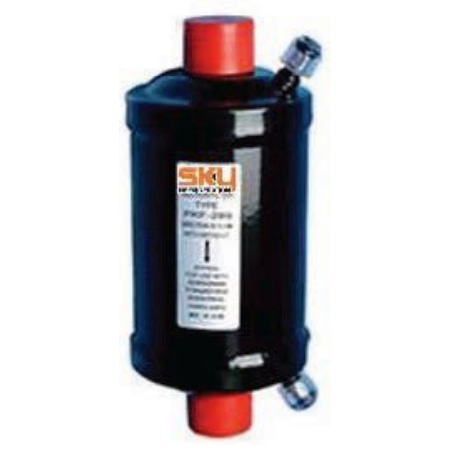

Burnout Clean-up Filter Driers | Solid Core Composition | Anti-Corrosion Finish | Dual Access Ports | by Aspen Pumps
Burnout Clean-up Filter Driers are essential for HVAC systems, featuring a solid core composition that absorbs acid, wax, and moisture. Designed for refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants, these filter driers enhance system efficiency and prolong equipment life by preventing contamination and corrosion. Ideal for industrial and commercial applications, they ensure optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Composition | Anti-Corrosion Finish | Dual Access Ports | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303-164
Alternatively Known As: Filter Drier, Refrigeration Filter Drier, Burnout Filter Drier, Solid Core Filter Drier
Technical Specifications
- Connection: 1/2 inch MSAE - Dual Access
- Lay-in length: 177 mm
- Diameter: 78 mm
- Capacity kW R-22/410A: 15 kW
- Capacity kW R-404A: 8.5 kW
- Capacity kW R-134A: 6 kW
- Manufactured to ISO/AS 5149.2 standards
- Safe Working Pressure (SWP): 3,200 kPa
- Solid core composition: 60% MS, 35% AL, 5% AC
- Anti-corrosion powder coat finish
- Dual access ports for monitoring
- Dimensions (H x L x W): 177mm x 78mm x 78mm
- Weight: 1.5 kg
Key Features
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections for durability
- Dual access ports for monitoring pressure drop and contaminant accumulation
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure compliance with safety standards and optimal system performance.
Applications
- HVAC systems requiring filtration and moisture removal
- Refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants
- Industrial and commercial pressure vessel filtration
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and pressure vessels
Environmental Benefits
- Enhances system efficiency by preventing contamination and corrosion
- Prolongs equipment life, reducing waste and resource consumption
- Supports refrigerant system integrity, minimizing leaks and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Burnout Clean-up Filter Driers (Solid Core) are available for immediate purchase, ideal for HVAC and refrigeration system maintenance and protection.
