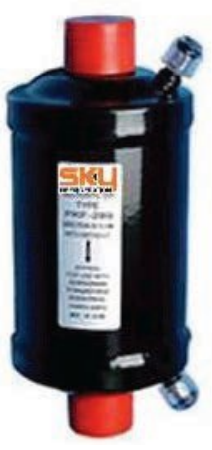

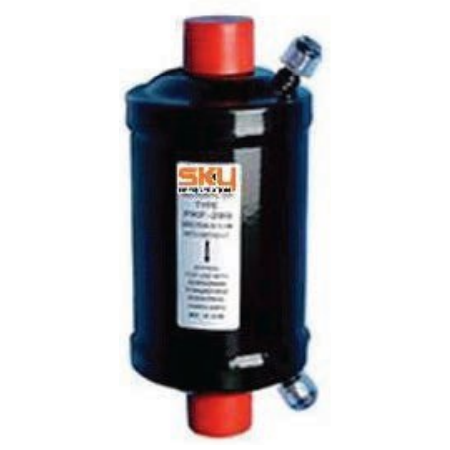

Burnout Clean-up Filter Driers | Solid Core Design | Anti-Corrosion Finish | Dual Access Ports | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 303-305
$62.70 List price: $75.90
+ −
30 Days Return Delivery Options
Burnout Clean-up Filter Driers are essential for HVAC systems, featuring a solid core design that absorbs acid, wax, and moisture effectively. With dual access ports for monitoring and an anti-corrosion finish, these filter driers ensure optimal performance in refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants. Ideal for both industrial and commercial applications, they enhance system efficiency and prolong equipment life.

Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Design | Anti-Corrosion Finish | Dual Access Ports | by Aspen Pumps

Brand: Aspen Pumps

SKU: 303-305

Alternatively Known As: Filter Drier, Solid Core Filter Drier, Burnout Filter Drier, Refrigeration Filter Drier

Technical Specifications
  • Connection: 5/8 MSAE - Dual Access
  • Lay-in length: 259 mm
  • Diameter: 78 mm
  • Capacity kW R-22/410A: 18 kW
  • Capacity kW R-404A: 15 kW
  • Capacity kW R-134A: 12.5 kW
  • Safe Working Pressure (SWP): 3,200 kPa
  • Core Composition: 60% MS, 35% AL, 5% AC
  • Finish: Anti-corrosion powder coat with chrome flare or solid copper connections
  • Dimensions (H x L x W): 78mm x 259mm x 78mm
  • Weight: 1.5 kg
Key Features
  • Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
  • Membrane filter element removes and retains all harmful particles
  • Anti-corrosion powder coat finish with chrome flare or solid copper connections for durability
  • Dual access ports for monitoring pressure drop and contaminant accumulation
  • Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
  • Installation by a qualified HVAC technician or licensed professional is recommended to ensure system integrity and compliance with safety standards.
Applications
  • HVAC systems requiring filtration and moisture removal
  • Refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants
  • Industrial and commercial pressure vessel filtration
Standards & Compliance
  • Manufactured in accordance with AS/NZS 5149.2 (part of Electrical & Electronics standards for refrigeration systems)
Environmental Benefits
  • Enhances system efficiency by removing contaminants, reducing refrigerant leaks and energy waste
  • Prolongs equipment life, reducing waste and resource consumption
Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

Available for immediate purchase, ideal for HVAC and refrigeration system maintenance and upgrades.
