Trade Discount 17%

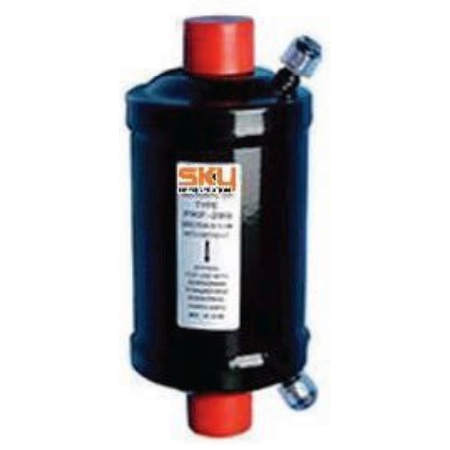

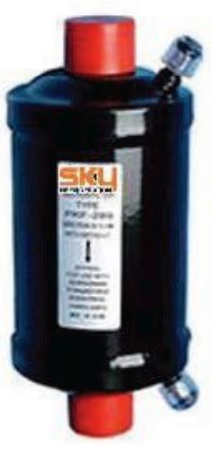

Burnout Clean-up Filter Driers | Solid Core Composition | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
Burnout Clean-up Filter Driers are essential for HVAC systems, designed with a solid core composition for superior acid, wax, and moisture absorption. Ideal for refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants, these filter driers enhance system efficiency by removing harmful contaminants and prolonging equipment life. With dual access ports for monitoring and an anti-corrosion powder coat finish, they ensure durability and ease of installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Composition | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303-083
Alternatively Known As: Filter Drier, Solid Core Filter Drier, Burnout Filter Drier, HVAC Filter Drier, Refrigeration Filter Drier
Technical Specifications
- Connection: 3/8 MSAE - Dual Access
- Lay-in length: 146 mm
- Diameter: 64 mm
- Capacity kW R-22/410A: 6 kW
- Capacity kW R-404A: 4.5 kW
- Capacity kW R-134A: 3.5 kW
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 3,200 kPa
- Solid core composition: 60% MS, 35% AL, 5% AC
- Anti-corrosion powder coat finish
- Chrome flare or solid copper connections
- Dual access ports for pressure drop and contaminant monitoring
- Dimensions (H x L x W): 64mm x 146mm x 64mm
- Weight: 1.2 kg
Key Features
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections for durability and ease of installation
- Dual access ports for monitoring pressure drop and contaminant accumulation
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or licensed professional to ensure compliance with safety and operational standards.
Applications
- HVAC systems requiring acid, wax, and moisture removal
- Refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants
- Industrial and commercial pressure vessel filtration
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and pressure vessels
Environmental Benefits
- Enhances system efficiency by removing contaminants, reducing refrigerant leaks and energy waste
- Prolongs equipment life, reducing waste and resource consumption
- Supports compliance with environmental safety standards by maintaining system integrity
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Burnout Clean-up Filter Driers (Solid Core) are available for immediate purchase, ideal for HVAC and refrigeration system maintenance and upgrades.
