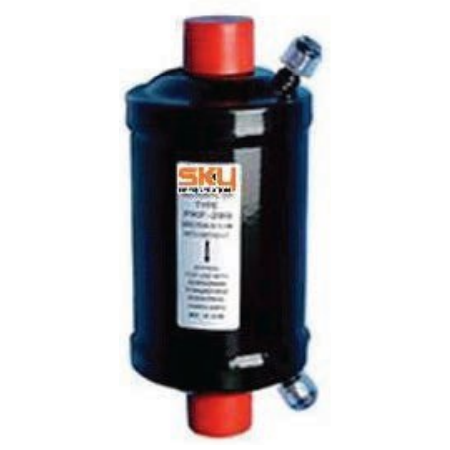

Burnout Clean-up Filter Driers | Solid Core Design | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
The Burnout Clean-up Filter Driers are essential for HVAC and refrigeration systems, featuring a solid core design that absorbs acid, wax, and moisture. With dual access ports for easy monitoring and an anti-corrosion finish, these filter driers ensure optimal system efficiency and longevity, making them ideal for professional installations in commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Design | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303-164S
Alternatively Known As: Filter Drier, Refrigeration Filter Drier, Burnout Filter Drier, Solid Core Filter Drier
Technical Specifications
- Connection: 1/2 inch SOL - Dual Access
- Lay-in length: 162 mm
- Diameter: 78 mm
- Capacity kW R-22/410A: 15 kW
- Capacity kW R-404A: 8.5 kW
- Capacity kW R-134A: 6 kW
- Manufactured to ISO/AS 5149.2 standards
- Safe Working Pressure (SWP): 3,200 kPa
- Dimensions (H x L x W): 162mm x 78mm x 78mm
- Weight: 1.5 kg
Key Features
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections
- Dual access ports for monitoring pressure drop and contaminant accumulation
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is required to ensure proper system integration and safety compliance.
Applications
- HVAC systems requiring filtration and moisture removal
- Refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants
- Industrial and commercial pressure vessel filtration
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Helps maintain system efficiency by removing contaminants, reducing energy consumption
- Extends equipment lifespan, reducing waste and resource use
- Supports compliance with environmental safety standards
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Burnout Clean-up Filter Driers (Solid Core) are available for immediate purchase, ideal for HVAC and refrigeration system maintenance and protection.
