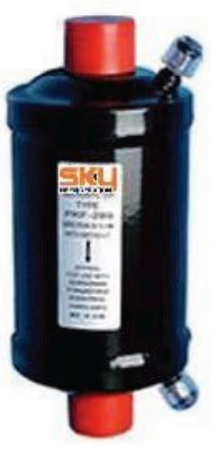

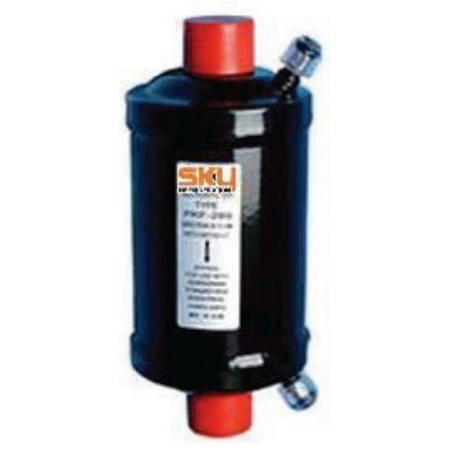

Burnout Clean-up Filter Driers | Solid Core Design | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
Burnout Clean-up Filter Driers are essential for refrigeration systems, featuring a solid core design that absorbs acid, wax, and moisture. With dual access ports for monitoring and an anti-corrosion finish, these filter driers enhance system efficiency and prolong equipment life, making them ideal for HVAC professionals and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Design | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303-307S
Alternatively Known As: Burnout Filter Drier, Solid Core Filter Drier, Refrigeration Filter Drier, Acid Removal Filter Drier
Technical Specifications
- Connection: 7/8 SOL - Dual Access
- Lay-in length: 245 mm
- Diameter: 78 mm
- Capacity kW R-22/410A: 26 kW
- Capacity kW R-404A: 22 kW
- Capacity kW R-134A: 16 kW
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 3,200 kPa
- Dimensions (H x L x W): 78mm x 245mm x 78mm
- Weight: 1.5 kg
Key Features
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections
- Dual access ports for monitoring pressure drop and contaminant accumulation
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or refrigeration professional to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration systems requiring acid, wax, and moisture removal
- HVAC systems using refrigerants R-22, R-410A, R-404A, and R-134A
- Industrial and commercial pressure vessel filtration
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Enhances system efficiency by preventing contamination and corrosion
- Prolongs equipment life, reducing waste and resource consumption
- Supports refrigerant system integrity, minimizing leaks and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Burnout Clean-up Filter Driers (Solid Core) are available for immediate purchase, ideal for refrigeration and HVAC system maintenance and protection.
