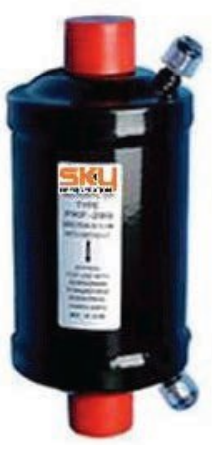

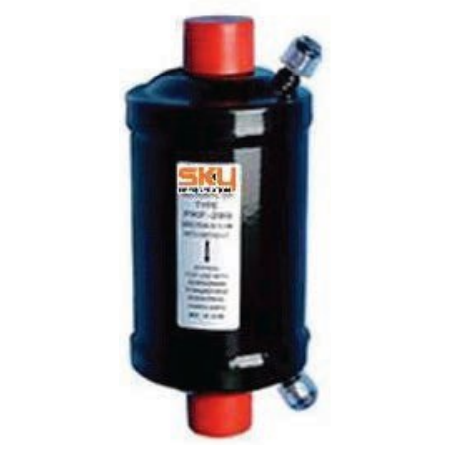

Burnout Clean-up Filter Driers | Solid Core Design | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
The Burnout Clean-up Filter Driers are essential for HVAC and refrigeration systems, featuring a solid core design that absorbs acid, wax, and moisture. With dual access ports for easy monitoring and an anti-corrosion finish, these filter driers ensure optimal system performance and longevity, making them ideal for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Design | Dual Access Ports | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303-309S
Alternatively Known As: Filter Drier, Refrigeration Filter Drier, Burnout Filter Drier, Solid Core Filter Drier
Technical Specifications
- Connection: 1-1/8 SOL - Dual Access
- Lay-in length: 245 mm
- Diameter: 78 mm
- Capacity kW R-22/410A: 31 kW
- Capacity kW R-404A: 27 kW
- Capacity kW R-134A: 20 kW
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 3,200 kPa
- Dimensions (H x L x W): 78mm x 245mm x 78mm
- Weight: 1.5 kg
Key Features
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections for durability and ease of installation
- Dual access ports for monitoring pressure drop and contaminant accumulation
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure proper connection and system integrity.
Applications
- HVAC systems requiring filtration and moisture removal
- Refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants
- Commercial and industrial refrigeration and air conditioning maintenance
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Helps maintain system efficiency by removing contaminants and moisture, reducing refrigerant leaks and energy waste
- Extends equipment lifespan, reducing waste and resource consumption
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Burnout Clean-up Filter Driers (Solid Core) are available for immediate purchase, ideal for HVAC and refrigeration system maintenance and repair.
