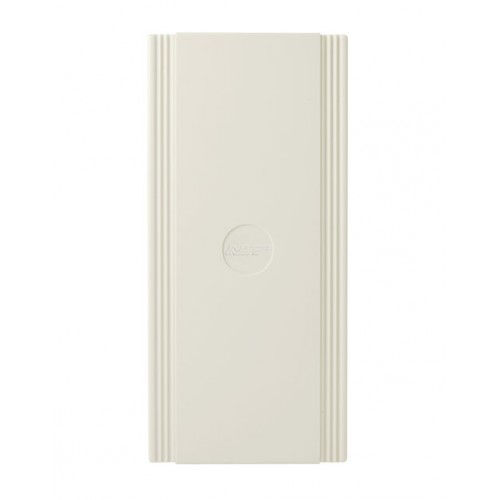

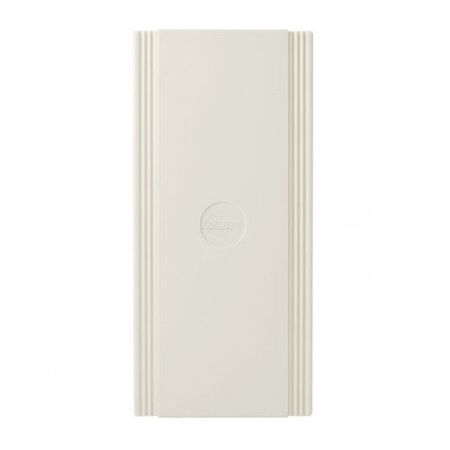

BUS Isolator Protects and Regenerates Signals Intrusion Control Ness

BRAND: Ness
SKU: 106-410
$187.00 List price: $249.30
+ −
30 Days Return Electricians Unlock Trade Access
Ness BUS isolator protects and regenerates signals for intrusion control. Ideal for SmartLiving alarm system bus wiring.

Alternatively Known As: SmartLiving BUS Isolator, I-Bus Isolator, Alarm BUS Signal Regenerator, Ness IB100-A

Technical Specifications
  • Model: IB100-A
  • Operating Voltage: 9–16 V DC input
  • Output Voltage: Adjustable 12–16 V DC
  • Typical Current Draw: 110 mA
  • Maximum Output Current: 500 mA
  • Operating Temperature: -5°C to +40°C
  • Bus Function: Galvanic isolation and regeneration of data signals and power supply
  • Protection Function: Isolates faults on the protected bus section
  • Tamper Protection: Open-tamper monitoring
  • Compatible System: Ness SmartLiving I-Bus intrusion control panels
  • Dimensions (H x L x W): 26mm x 170mm x 79mm
  • Weight: 0.17 kg
Key Features
  • Protects SmartLiving bus wiring from short circuits, tamper events and peripheral faults
  • Regenerates bus data signals to support longer wiring runs
  • Regenerates and supplies power to the downstream bus section
  • Galvanically isolates the control-panel bus from connected peripherals
  • Helps maintain system operation when a peripheral or downstream section is compromised
  • Suitable for SmartLiving intrusion-control installations
Professional Installation Requirements
  • Installation, addressing and commissioning should be performed by a suitably qualified security-system technician in accordance with the SmartLiving installation instructions and applicable Australian requirements, including AS/NZS 2201.1.
Applications
  • Ness SmartLiving intrusion alarm systems
  • Protection of bus wiring to remote keypads, readers, expanders and other peripherals
  • Large or complex alarm installations requiring extended I-Bus wiring
  • Installations requiring isolation of exposed or vandalism-prone peripheral sections
Standards & Compliance
  • Applicable to intruder alarm system design, installation, commissioning and maintenance under AS/NZS 2201.1:2007
Environmental Benefits
  • Fault isolation can help protect connected equipment and reduce premature component replacement
  • Signal regeneration supports extended bus wiring without additional communications equipment
  • Ness publishes RoHS compliance information for its product range, supporting reduced use of restricted hazardous substances
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security-system distributors.
