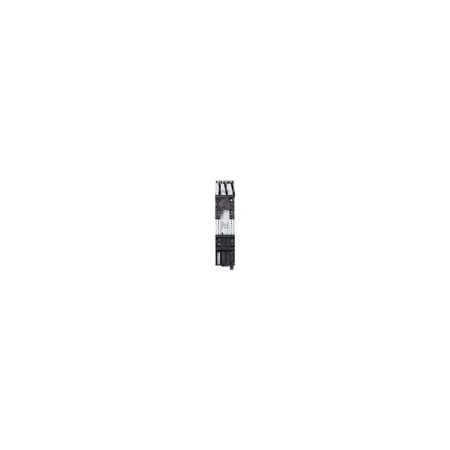

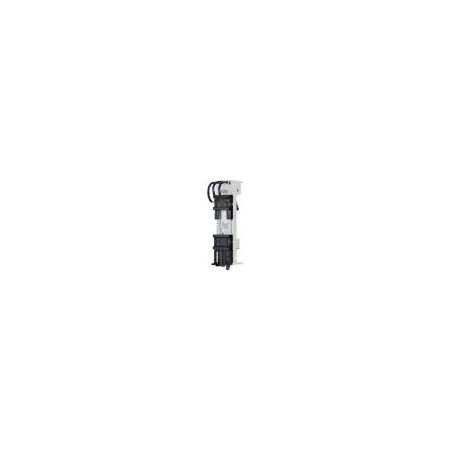

Busbar Adapter 32A | 690V AC | DIN Rail Mounting & 6mm² Terminal Capacity | Eaton
Busbar adapter rated for 32A and 690V AC—ideal for electrical panel assembly and busbar system integration. Built for industrial and commercial installations, with a durable design that supports busbar thickness from 5mm to 10mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Busbar Adapter 32A | 690V AC | DIN Rail Mounting & 6mm² Terminal Capacity | Eaton
Brand: Eaton
SKU: Y7-101452
Alternatively Known As: Busbar adapter 32A, Eaton BBA Busbar accessory, DIN rail busbar connector, SASY busbar adapter
Technical Specifications
- Nominal current: 32 A
- Voltage rating: 690 V AC
- Terminal capacity: 6 mm² (AWG 10)
- Busbar thickness range: 5 mm to 10 mm
- Busbar distance: 60 mm
- Mounting: 2 DIN rails, 35 mm rail width
- Ambient operating temperature: -25 °C to 55 °C
- Heat dissipation (current-dependent): 2.4 W
- Certifications: IEC60439-1, CE, UL 508A, CSA-C22.2 No. 14
- Dimensions (H x L x W): 73mm x 200mm x 45mm
- Weight: 0.295 kg
Key Features
- Busbar adapter for SASY Busbar system 60 mm
- Nominal current rating of 32 A
- Adapter width of 45 mm
- Supports busbar thickness from 5 mm to 10 mm
- Voltage rating up to 690 V AC
- Terminal capacity of 6 mm² (AWG 10)
- Mounts on 2 DIN rails of 35 mm width
- Ambient operating temperature range from -25 °C to 55 °C
- Meets IEC60439-1 and UL certifications for safety and performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder to ensure compliance with electrical standards and safety regulations.
Applications
- Electrical panel assembly and busbar system integration
- Industrial and commercial electrical installations requiring busbar adapters
- DIN rail mounting for electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Certified for safety and reliability, reducing risk of electrical faults and associated environmental hazards
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller BBA0-32 Busbar Adapter is available for immediate purchase, ideal for electrical panel assembly and busbar system applications.
