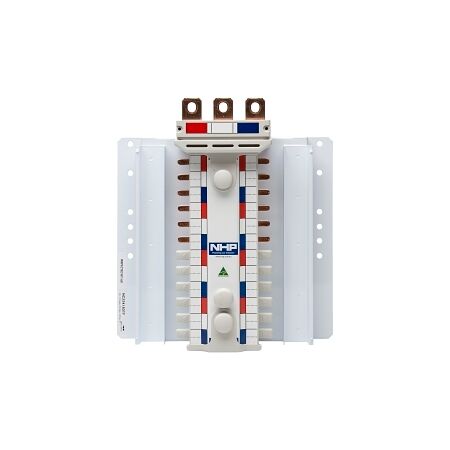

Busbar Chassis 250A 108 Way | 3-Pole Top Feed | Encapsulated Housing by NHP
Busbar chassis with 250A rated current and 108 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 108 Way 3Pole Top Feed
Brand: NHP
SKU: M6NC2108183TF
Alternatively Known As: NHP Busbar, MOD6 Busbar Chassis, 250A Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 108
- Nominal Voltage: 415 V
- Short Time Withstand Current (0.1 sec): 25 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (1 sec): 10 kA
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 975mm x 82mm x 250mm
- Weight: 10 kg
Key Features
- 250A rated current with 3-phase input.
- 108 poles with 18mm pitch assembly arrangement.
- Encapsulated material housing for durability.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX MOD6 Busbar Chassis 250A 108 Way 3Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.
