Busbar Chassis 250A 48 Way | 3-Pole Universal | IP20 Protection by NHP
Busbar chassis with 250A rated current and 48 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

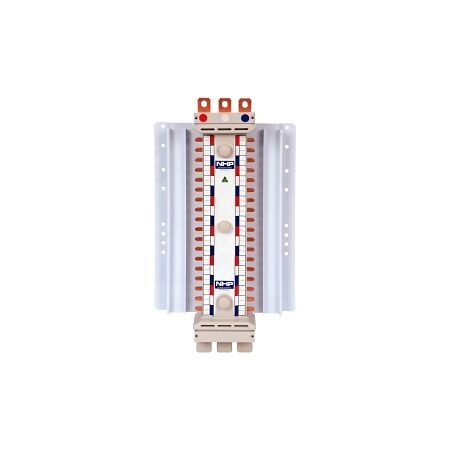

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 3Pole Universal
Brand: NHP
SKU: NC248183U
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 458mm x 500mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current for high power applications.
- 48 poles with 3-phase input for versatile configurations.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Suitable for any application requiring robust busbar systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 48 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
