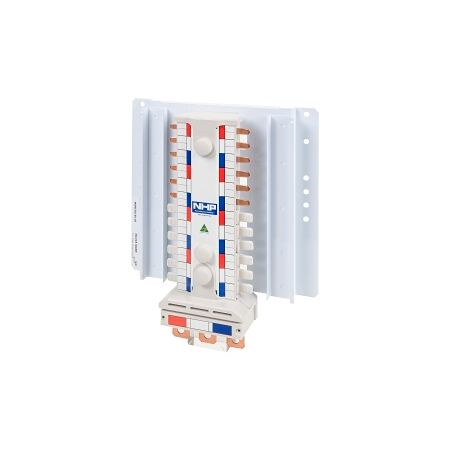

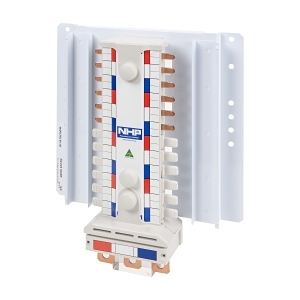

Busbar Chassis 250A 84 Way | 3-Phase Bottom Feed | IP20 by NHP
Busbar chassis with 250A rated current and 84 poles—ideal for industrial and commercial power distribution. Built for efficient 3-phase input, with encapsulated housing and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Bottom Feed
Brand: NHP
SKU: M6NC284183BF
Alternatively Known As: NHP Busbar, MOD6 Busbar Chassis, 250A Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 84
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 25 kA
- Short Time Withstand Current (ICW) 0.3 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 782mm x 500mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current for high power applications.
- 84 poles with 18mm pitch for flexible configuration.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and improves overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX MOD6 Busbar Chassis 250A 84 Way 3Pole Bottom Feed is available for immediate purchase, ideal for industrial and commercial power distribution needs.
