Busbar Chassis 250A 96 Way | 3-Phase Input | Encapsulated Material | IP20 by NHP
Busbar chassis with 250A rated current and 3-phase input—ideal for industrial power distribution. Built for durability with encapsulated material and IP20 protection, featuring 96 poles and 18mm pitch assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

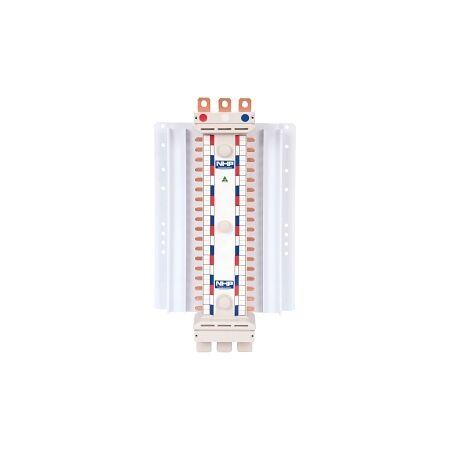

Product Name/Title: NHP POWERMAX MOD6 Busbar Chassis 250A 96 Way 3Pole Universal
Brand: NHP
SKU: M6NC296183U
Alternatively Known As: NHP Busbar, MOD6 Busbar Chassis, 250A Busbar
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Number of Phases Input: 3-phase
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 25 kA
- Short Time Withstand Current (ICW) 0.3 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 890mm x 500mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current with 3-phase input.
- 96 poles with 18mm pitch assembly arrangement.
- Encapsulated material housing for durability.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX MOD6 Busbar Chassis 250A 96 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
